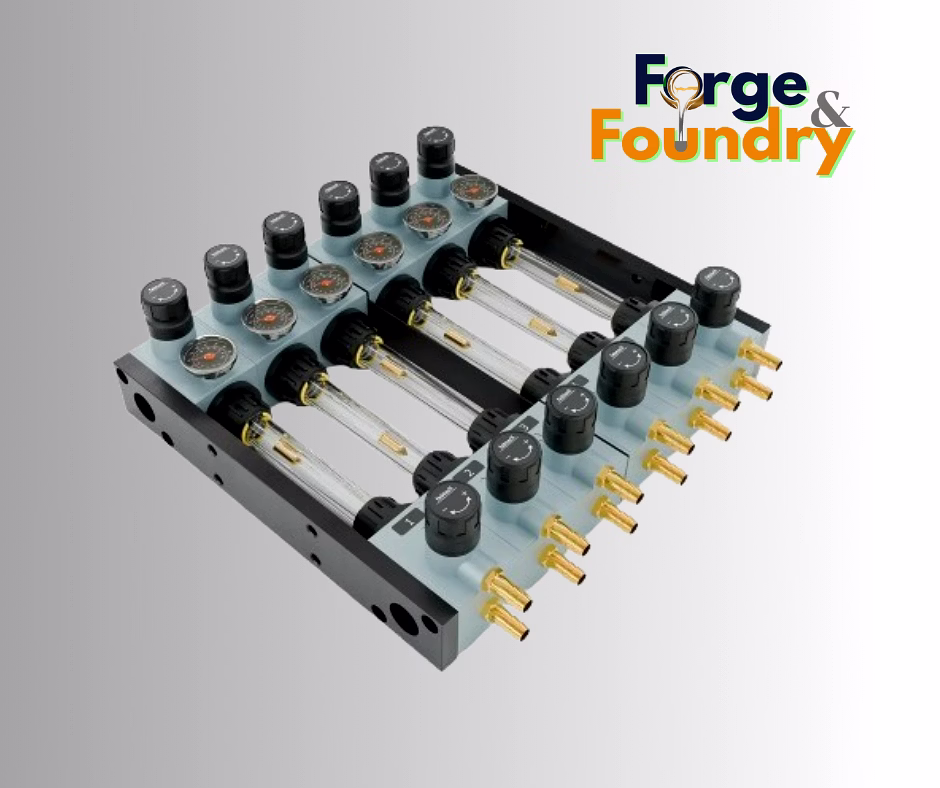

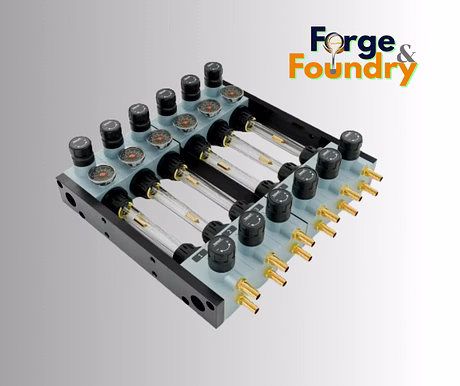

The Mould Channel Flow Meter is a precision instrument designed specifically for the die casting and plastic injection moulding industries to measure and monitor the cooling water flow within the mould channels. It plays a critical role in controlling the mould temperature by providing real-time, accurate volumetric flow data of the coolant through the complex internal channels. This ensures uniform cooling, preventing defects such as warpage, shrinkage, and internal stresses that compromise the structural integrity and surface finish of the final cast or injected components. By optimizing the cooling process, the flow meter also contributes to reducing cycle times and enhancing overall production efficiency. Engineered to withstand industrial environments, this mould channel flow meter offers reliable performance, aiding in quality control and process stability in high-volume manufacturing settings.
Key Features
| Features | Description |
|---|---|
| Purpose | Monitors and controls cooling water flow inside mould channels for die casting and plastic injection moulding |
| Measurement Type | Volumetric flow rate of coolant |
| Application | Die casting and plastic injection moulding mould temperature optimization |
| Accuracy | High precision real-time flow measurement |
| Benefits | Prevents warpage, shrinkage, internal stresses; improves final part quality and reduces cycle time |
| Installation | Integrated in cooling channels of moulds |
| Durability | Industrial grade construction for harsh manufacturing environments |
| Output | Provides real-time flow data for process monitoring and control |
| Attributes | Description |
|---|---|
| Flow Measurement Range | Typically 1 to 100 liters per minute (customizable) |
| Operating Temperature | 0°C to 120°C (compatible with cooling water temperatures) |
| Pressure Rating | Up to 10 bar (suitable for cooling systems) |
| Material | Corrosion-resistant stainless steel or engineered plastic |
| Connection Type | Flanged or threaded connections for easy integration with mould channels |
| Output Signal | Analog (4-20 mA) or digital for PLC integration |
| Installation Orientation | Horizontal or vertical flow compatible |
| Power Supply | 24V DC or as per customer requirement |
| Response Time | Real-time flow data with less than 1-second response time |
| Calibration | Factory calibrated with traceable standards |
