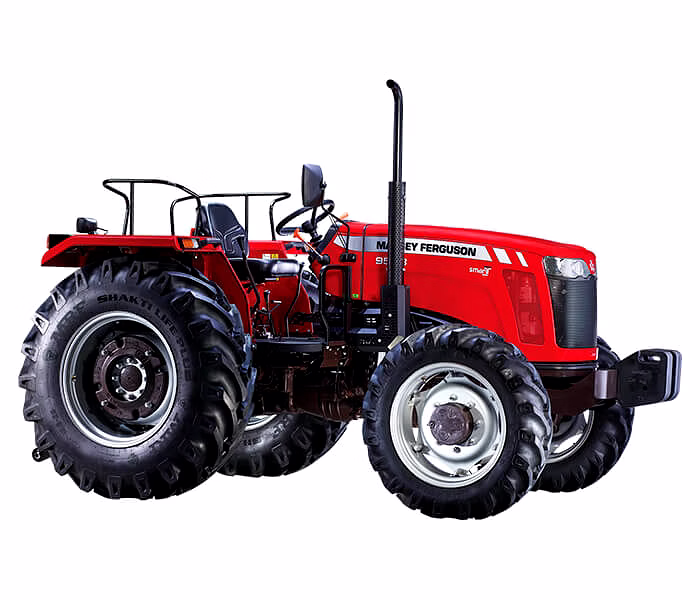

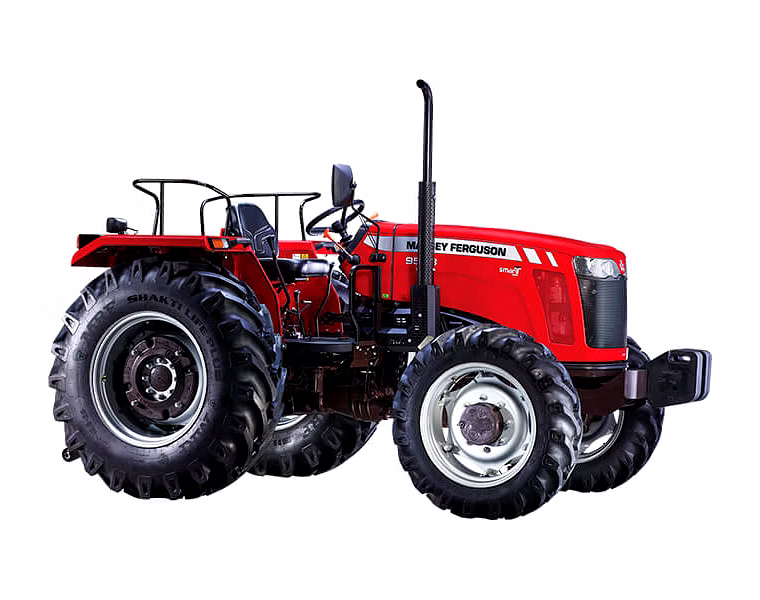

The MF 9563 Smart 4WD tractor is a powerful and efficient agricultural machine designed to meet diverse farming needs. Equipped with a robust 44.1 kW (63 hp) three-cylinder engine with a 2590 cc cubic capacity and advanced Common Rail Fuel Injection Pump, it ensures optimal fuel efficiency and performance. The tractor features a Partial Synchro Mesh Transmission offering 12 forward and 4 reverse speeds, enabling smooth and versatile operation across different terrains. The Split Torque Clutch system enhances durability and power transmission efficiency. For enhanced traction and stability, it comes with 4WD capability, featuring front tyres sized at 9.5 x 24 and rear tyres at 16.9 x 28. The power take-off (PTO) is an Independent PTO with a six-splined shaft, operating at 540 RPM to power various agricultural implements. Hydraulic systems provide a lifting capacity of 2500 kgf, sufficient for a wide variety of attachments in farming applications. The tractor is fitted with power steering and oil immersed brakes for superior maneuverability and safety. Dimensionally, the MF 9563 measures 3890 mm in length, 1830 mm in width, with a 1972 mm wheelbase and a total weight of 2810 kgs, striking a balance between stability and mobility. Practical features like SMART key technology, SMART cluster for easy monitoring, glass heat deflectors, mat foot steps, auxiliary pump, multiple spool valves, hitch rail, and front and rear wheel weights for enhanced balance make this tractor a highly versatile and operator-friendly choice for commercial agricultural operations.
Key Features
| Features | Description |
|---|---|
| Engine Power | 44.1 kW (63 hp) |
| Engine Type | 3 Cylinder, 2590 cc Cubic Capacity |
| Fuel Injection | Common Rail Injection System |
| Clutch Type | Split Torque Clutch |
| Transmission | Partial Synchro Mesh with 12 Forward + 4 Reverse Speeds |
| Drive Type | 4 Wheel Drive (4WD) |
| Tyre Dimensions | Front: 9.5 x 24, Rear: 16.9 x 28 |
| Max Forward Speed | 31.3 km/h @ 2200 RPM |
| PTO Type and Speed | Independent PTO, Six-splined shaft, 540 RPM @ 1789 ERPM |
| Hydraulic Lifting Capacity | 2500 kgf |
| Brake System | Oil Immersed Brake |
| Steering | Power Steering |
| Fuel Tank Capacity | 65 Liters |
| Dimensions (L x W x WB) | 3890 mm x 1830 mm x 1972 mm Wheelbase |
| Weight | 2810 kg |
| Additional Features | SMART key, SMART cluster, Mat foot step, Glass heat deflectors, Auxiliary pump, Front weights (4 nos), Spool valve, Hitch rail, Rear wheel weights (35 kg each side) |
| Attributes | Description |
|---|---|
| Power (hp Range) | 63 hp (44.1 kW) |
| Number of Cylinders | 3 |
| Cubic Capacity | 2590 cc |
| Fuel Injection Pump | Common Rail Injection System |
| Clutch Type | Split Torque Clutch |
| Transmission Type | Partial Synchro Mesh |
| Number of Speeds | 12 Forward + 4 Reverse |
| Front Tyre Size | 9.5 x 24 (24.13 cm x 60.96 cm) |
| Rear Tyre Size | 16.9 x 28 (42.93 cm x 71.12 cm) |
| Maximum Forward Speed | 31.3 km/h @ 2200 RPM |
| PTO Type | Independent PTO (IPTO), Six-splined shaft |
| PTO Speed | 540 RPM @ 1789 ERPM |
| Hydraulics Lifting Capacity | 2500 kgf |
| Brake Type | Oil Immersed Brake |
| Steering System | Power Steering |
| Overall Length | 3890 mm |
| Overall Width | 1830 mm |
| Wheelbase | 1972 mm |
| Total Weight | 2810 kg |
| Fuel Tank Capacity | 65 Liters |
| Additional Features | SMART key, SMART cluster, Mat foot step, Glass heat deflectors, Auxiliary pump, Front weights (4 nos), Spool valve, Hitch rail, Rear wheel weights - 35 kg per side |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
No, the MF 9563 features a fixed Independent PTO operating at 540 RPM @ 1789 ERPM designed to power standard agricultural implements efficiently.
Yes, the Partial Synchro Mesh transmission with 12 forward and 4 reverse speeds provides versatility for various field tasks and transport needs.
The tractor incorporates SMART key technology, a SMART cluster display, power steering, glass heat deflectors, and mat foot steps to enhance operator convenience and control.
Yes, with a hydraulic lifting capacity of 2500 kgf and additional front and rear weights, it can handle a wide range of heavy farming implements safely.
It features front tyres sized 9.5 x 24 and larger rear tyres 16.9 x 28, ensuring adequate traction, stability, and soil protection for extensive field operations.
Brand: 9563
Country Of Origin: India
Power (hp Range) 44.1 kW (63 hp range)
Cylinders 3
Cubic Capacity 2590 cc
Fuel Injection Pump Common Rail Injection System
Clutch Type Split Torque Clutch
Transmission Type Partial Synchro Mesh
Number of Speeds 12 Forward + 4 Reverse
Tyre Dimensions 9.5 x 24 (24.13 cm x 60.96 cm) Front
16.9 x 28 (42.93 cm x 71.12 cm) Rear
Forward Speed @ Rated RPM 31.3 km/h @ 2200
PTO Type IPTO PTO, Six-splined shaft
PTO Speed 540 RPM @ 1789 ERPM
Hydraulics Lifting Capacity 2500 kgf
Brake Type Oil Immersed Brake
Steering Type Power Steering
Overall Length 3890 mm
Overall Width 1830 mm
Wheelbase 1972 mm
Total Weight 2810 kgs
Fuel Tank Capacity 65 L
Additional Features SMART key, SMART cluster, Mat foot step, Glass heat deflectors, Auxiliary pump, Front weights (4 nos) , spool valve, Hitch rail, Rear wheel weight - 35 kgs (each side)
Power (hp Range) 44.1 kW (63 hp range)
Cylinders 3
Cubic Capacity 2590 cc
Fuel Injection Pump Common Rail Injection System
Clutch Type Split Torque Clutch
Transmission Type Partial Synchro Mesh
Number of Speeds 12 Forward + 4 Reverse
Tyre Dimensions 9.5 x 24 (24.13 cm x 60.96 cm) Front
16.9 x 28 (42.93 cm x 71.12 cm) Rear
Forward Speed @ Rated RPM 31.3 km/h @ 2200
PTO Type IPTO PTO, Six-splined shaft
PTO Speed 540 RPM @ 1789 ERPM
Hydraulics Lifting Capacity 2500 kgf
Brake Type Oil Immersed Brake
Steering Type Power Steering
Overall Length 3890 mm
Overall Width 1830 mm
Wheelbase 1972 mm
Total Weight 2810 kgs
Fuel Tank Capacity 65 L
Additional Features SMART key, SMART cluster, Mat foot step, Glass heat deflectors, Auxiliary pump, Front weights (4 nos) , spool valve, Hitch rail, Rear wheel weight - 35 kgs (each side)
