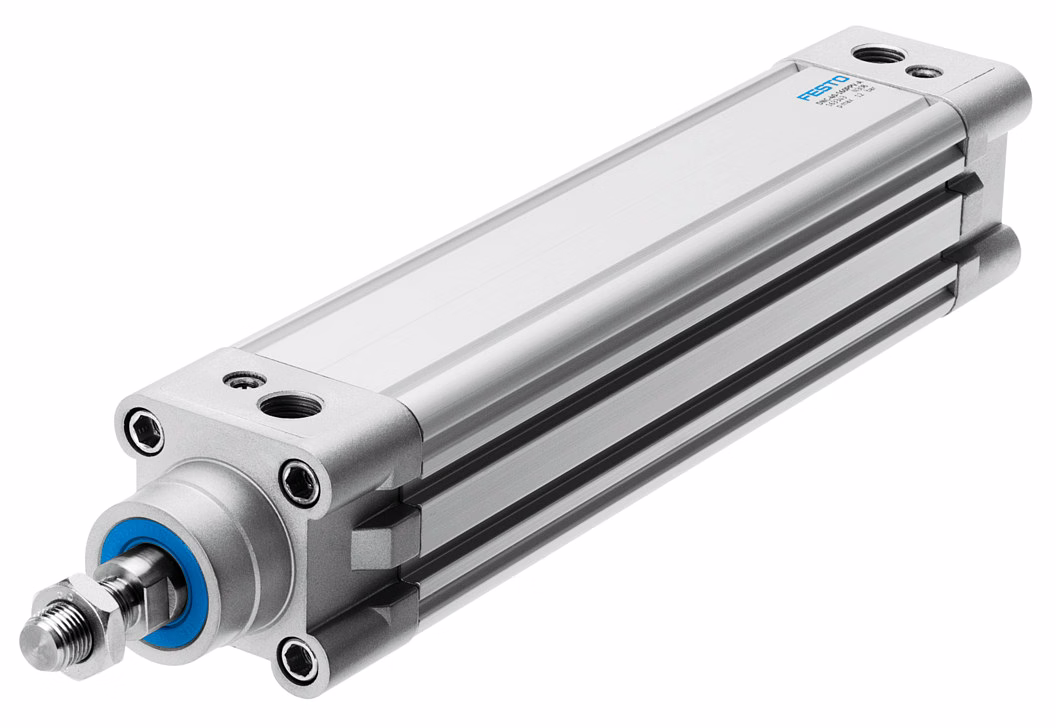

The Festo DNC-32-400-PPV-A (163315) is a high-performance double-acting pneumatic cylinder engineered according to ISO 15552 standards. This precision-driven actuator provides reliable linear motion for various industrial automation needs. Designed with an aluminum body, it combines lightweight construction with remarkable mechanical strength and corrosion resistance, facilitating long service life even in harsh environments. The cylinder stroke of 400 mm enables extended reach and flexibility in motion tasks. An integral feature is the adjustable PPV end-position cushioning, which enhances operational efficiency by minimizing shock loads and vibrations at the end of the stroke, thereby protecting machine components and lowering maintenance costs. This model is well-suited for critical applications such as material handling systems, assembly line automation, and manufacturing processes that require consistent, smooth, and controlled actuation.
Key Features
| Features | Description |
|---|---|
| Cylinder Type | Double-acting pneumatic cylinder |
| Standard | ISO 15552 |
| Bore Size | 32 mm |
| Stroke Length | 400 mm |
| Cushioning Type | Adjustable PPV end-position cushioning |
| Material | Aluminum body |
| Motion | Smooth and controlled linear motion |
| Application | Material handling, assembly lines, industrial automation |
| Durability | Robust construction for demanding applications |
| Energy Efficiency | Efficient energy absorption through PPV cushioning |
| Attributes | Description |
|---|---|
| Model Number | DNC-32-400-PPV-A (163315) |
| Actuation | Double-acting |
| Bore Diameter | 32 mm |
| Stroke Length | 400 mm |
| Cushioning | PPV adjustable end-position cushioning |
| Body Material | Anodized Aluminum |
| Mounting Standard | ISO 15552 |
| Pressure Range | Up to 10 bar (typical for pneumatic cylinders) |
| Operating Temperature Range | -20°C to +80°C |
| Seal Material | NBR (Nitrile Butadiene Rubber) or similar |
| Connection Type | Standard pneumatic fittings |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The adjustable PPV end-position cushioning allows precise control over the deceleration at the end of the stroke, reducing impact forces and vibrations. This protects machinery, minimizes wear, and boosts energy efficiency during operation.
Yes, this model strictly adheres to the ISO 15552 standard dimensions and mounting specifications, ensuring compatibility with corresponding mounts, fittings, and accessories.
The cylinder typically operates safely up to 10 bar pressure and performs well within an ambient temperature range of -20°C to +80°C, making it suitable for various industrial environments.
The anodized aluminum body offers excellent corrosion resistance and strength while maintaining a lightweight profile. This facilitates installation and durability in harsh or space-constrained applications.
This specific model is available with a fixed 400 mm stroke length according to the product code. For custom stroke lengths, other variants of the DNC series may be considered.
Brand: festo
Country Of Origin: Germany
The Festo DNC-32-400-PPV-A (163315) is a double-acting ISO 15552 pneumatic cylinder, built for precision and durability in industrial automation. It delivers smooth and controlled linear motion. Featuring adjustable PPV end-position cushioning, it ensures efficient energy absorption and reduced impact. Its robust aluminum body provides excellent strength, making it ideal for material handling, assembly lines, and other demanding applications.
