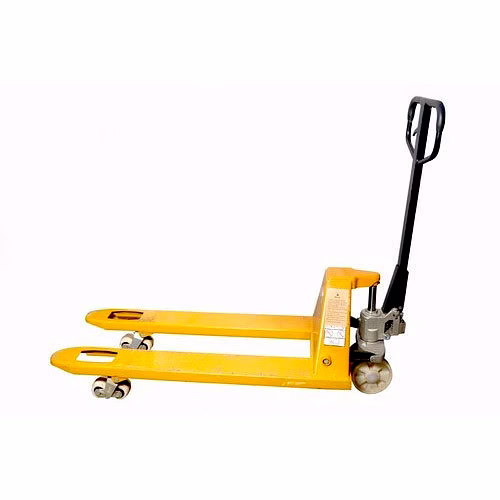

The FABTEX Hydraulic Hand Pallet Truck is a robust manual material handling solution designed for efficient pallet movement in warehouses, factories, logistics hubs, retail backrooms, and industrial storage areas. Built for demanding day-to-day use, this hydraulic pallet truck combines a heavy-duty steel frame, a reliable hydraulic pump, and precision wheel-and-bearing movement to help operators transport goods safely and smoothly in narrow aisles and confined spaces. Available in 2.5T and 3T load capacities, this manual pallet truck is engineered for controlled lifting, easy maneuverability, and dependable performance. The ergonomic handle supports comfortable operation, while the three-position lever enables lifting, lowering, and neutral/idling functions for complete operator control. Its polyurethane rollers help reduce noise, improve rolling efficiency, and extend wheel life, making it well-suited for both indoor industrial applications and repetitive pallet handling tasks. A key advantage of the FABTEX pallet truck is serviceability. Unlike low-cost alternatives, the pump is completely rebuildable, which helps reduce downtime and supports long-term use in busy operations. Customization options for fork width and fork length make it adaptable to different pallet sizes and site requirements. Optional parking brake support adds additional safety and positioning control where needed. This hydraulic hand pallet truck is ideal for businesses looking for a durable, export-ready, manually operated pallet jack that delivers strong lifting performance, easy operation, and low maintenance requirements. With its practical design and customizable specifications, it is a dependable choice for B2B buyers seeking a cost-effective material handling equipment solution.
Key Features
| Features | Description |
|---|---|
| Heavy-Duty Manual Material Handling | Designed for fast and safe movement of palletized goods in narrow spaces. |
| Available Load Capacities | Offered in 2.5T and 3T models for different warehouse and industrial handling needs. |
| Rebuildable Hydraulic Pump | Fully serviceable pump design for better long-term maintenance and reduced downtime. |
| Ergonomic Handle with 3-Position Lever | Provides lifting, lowering, and neutral/idling control for safe and comfortable operation. |
| Polyurethane Rollers | Reduces operating noise and increases wheel life during frequent use. |
| Customizable Fork Dimensions | Fork width and fork length can be customized to suit application requirements. |
| Optional Parking Brake | Available for improved positioning and added operational safety. |
| Manual Lift Operation | Requires about 10 to 12 full strokes to reach maximum lift. |
| Attributes | Description |
|---|---|
| Product Type | Hydraulic Hand Pallet Truck |
| Brand | FABTEX |
| Model | FT 25 / FT 30 |
| Load Capacity | 2500 kg / 3000 kg |
| Loading Center | 460 / 520 / 550 / 600 / 685 mm |
| Fork Length (L) | 810 / 980 / 1070 / 1150 / 1220 mm |
| Minimum Fork Height (H1) | 65 / 70 / 80 mm |
| Maximum Fork Height (H2) | 165 / 185 / 200 mm |
| Steering Wheels | 180 x 50 mm PU / Nylon |
| Fork Wheels | 80 x 70 mm or 78 x 100 mm PU / Nylon |
| Wheel Material | Polyurethane or Nylon |
| Operation Type | Manual |
| Lift Mechanism | Hydraulic Pump |
| Pump Type | Rebuildable |
| Customization | Fork width and fork length customizable |
| Optional Feature | Parking Brake |
| Stroke Requirement | 10 to 12 full strokes for maximum lift |
| Unit of Measurement | Piece |
| MOQ | 1 Piece |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
It features a completely rebuildable hydraulic pump, which improves serviceability, reduces downtime, and supports long-term industrial use.
Yes, the fork width and fork length can be customized to match specific pallet sizes and operational requirements.
The truck can be supplied with polyurethane or nylon steering wheels and fork wheels, depending on the application requirement.
The three-position lever allows lifting, lowering, and neutral/idling functions, giving the operator precise and safe control over load movement.
Approximately 10 to 12 full strokes are needed to reach maximum lift.
Yes, a parking brake is available as an option for added safety and load positioning control.
The range is available in 2.5T and 3T load capacities, corresponding to the FT 25 and FT 30 models.
Country Of Origin: India
The ‘FABTEX’ range of manual pallet trucks characterized by a robust frame and hydraulic pump, specific wheels and bearings to facilitate sliding are the ideal aid for simple and fast movement in narrow space. The ergonomic handle facilitates maneuvers and ensures safe and comfortable operation; the lifting-lowering-idling operations are facilitated by the lifting pump with three-position lever, which ensures complete control through the operator’s hand.
Salient Features:
· ServiceabilityTechnical Specification:
MODEL | FT 25 | FT 30 |
Load Capacity (Kg/lbs) | 2500 | 3000 |
Loading Centre (mm) | 460/520/550/600/685 | |
Fork Length (L) | 810/980/1070/11150/1220 | |
Min. Fork height H1 | 65/70/80 | |
Max. Fork height H2 | 165/185/200 | |
Steering Wheels (mm) | 180 x 50 PU (Polyurethane or Nylon) | |
Fork Wheel (mm) | 80 x 70 / 78 x 100 mm PU (Polyurethane or Nylon) | |
