NIKHIL AMARSHIBHAI RUPALA

AVAIALBLE IN

76/89/114/139 MM DIA PIPE

SHAFT 20/25/30 MM

SKF OR REGUALR BEARINGS

MOQ 50 PCS

AVAILABLE AS PER GRADE

WHITE SELLA 1121
GOLDEN SELLA
STEAM

1509
WHITE SELLA
GOLDEN SELA
STEAM

These heavy-duty Carrying and Return Conveyor Rollers are designed for smooth material handling across various industries. Available in multiple pipe diameters and lengths, they are compatible with SKF, FAG, or other bearing types for superior performance. Ideal for bulk handling systems, mining, cement, and industrial conveyor applications.

Features:

• Available pipe diameters: 60mm, 76mm, 89mm, 114mm
• Length range: 200mm to 1200mm+
• Fitted with SKF, FAG, or other branded bearings
• Corrosion-resistant, durable steel construction
• Engineered for high load and long-life applications

Attributes:

• Type: Carrying & Return Conveyor Rollers
• Material: Steel / Custom per requirement
• Applications: Mining, Cement, Aggregate, Packaging
• Custom Sizes: Yes (on request)
• Bearing Options: SKF, FAG, others

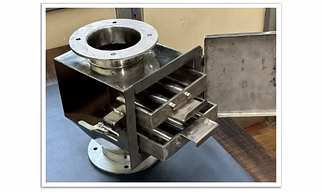

This Stainless Steel Magnetic Drawer is engineered for efficient separation of ferrous contaminants from dry, free-flowing powders and granules. Commonly used in food, pharmaceutical, plastic, and chemical industries, it features multiple magnetic rods enclosed in an easy-to-clean drawer housing. Designed for inline installation in gravity-fed systems.

Features:

• Powerful rare-earth magnets for high-efficiency separation
• Durable SS304/SS316 stainless steel construction
• Easy-access design for quick cleaning and maintenance
• Suitable for gravity-fed applications and hoppers
• Compact and corrosion-resistant housing

Attributes:

• Type: Drawer-in-Housing Magnetic Separator
• Material: Stainless Steel (SS304/316)
• Application: Food, Pharma, Plastics, Chemicals
• Magnet Strength: High-intensity (up to 12000 Gauss)
• Mounting: Flanged inlet/outlet for inline setup

Suspension Magnets are installed above conveyor belts to extract iron particles like bolts, nuts, and metal chips from bulk materials in motion. These magnetic separators are ideal for low-contamination environments and are effective over a clearance of 250–350mm between the magnet and conveyor belt. Suitable for use in mining, recycling, cement, and bulk handling industries.

Features:

• Effective for tramp iron removal from conveyor flow
• Ideal for low-frequency iron contamination
• Suspended clearance: 250mm to 350mm
• Captures ferrous parts such as bolts, nuts, chips
• Simple installation and low maintenance

Attributes:

• Type: Suspension Magnetic Separator
• Mounting: Overhead (above conveyor)
• Application: Cement, Mining, Recycling, Aggregate
• Material Separation: Iron & Ferrous Contaminants
• Cleaning: Manual or Self-cleaning options

This Suspension Magnet is designed for overhead installation above conveyor belts to efficiently extract iron particles such as bolts, nuts, and metal scraps from free-flowing materials. Suitable for mining, cement, recycling, and aggregate industries, it performs best in low to moderate contamination conditions with a suspension height of 250–350mm.

Features:

• Effective tramp iron removal from conveyed materials
• Mounted 250–350mm above belt for optimal separation
• Captures ferrous items like bolts, nuts, and metal chips
• Low-maintenance and heavy-duty design
• Available in permanent and self-cleaning configurations

Attributes:

• Type: Overband Suspension Magnet
• Mounting: Overhead on conveyor system
• Material Separation: Iron/ferrous contaminants
• Applications: Mining, Cement, Aggregates, Recycling
• Body Finish: Industrial-grade protective coating

The Single Drum Type Magnetic Separator is a robust solution for separating tramp iron from non-magnetic materials in high-volume processing lines. Widely used across mineral, chemical, food, and plastic industries, this separator enhances product purity and protects machinery from metal contamination. Built with high-strength permanent magnets and engineered for continuous operation.

Features:

• Removes iron contaminants from large material volumes
• High-strength permanent magnetic drum construction
• Improves purity and commercial recovery of end products
• Protects processing equipment from metal damage
• Available with enclosed housing and inlet hopper

Attributes:

• Type: Single Drum Magnetic Separator
• Material Separation: Iron from non-magnetic bulk materials
• Industries: Minerals, Chemicals, Food, Grains, Plastics
• Magnet Type: Permanent Ferrite/Isotropic
• Design: Continuous operation, online fitting available

Magnetic Pulleys are used as head pulleys in conveyor systems to separate ferrous contaminants from bulk materials automatically. Installed at the discharge end of a belt conveyor, they attract and discharge tramp iron, improving product quality and protecting downstream equipment. Ideal for continuous separation in mining, recycling, cement, and food processing applications.

Features:

• Acts as a self-cleaning magnetic separator
• Replaces standard conveyor head pulley
• Efficient removal of tramp iron during material discharge
• Heavy-duty stainless steel shell for durability
• Available in various diameters and face widths

Attributes:

• Type: Permanent Magnetic Pulley
• Material: SS drum with shaft-mounted design
• Applications: Mining, Recycling, Cement, Aggregate
• Mounting: Conveyor discharge/head pulley
• Operation: Automatic, continuous magnetic separation

Magnetic Destoners are high-efficiency machines engineered to remove magnetic and semi-magnetic impurities such as stones, metal fragments, glass, and mud balls from granular materials. Ideal for food processing and seed cleaning lines, they combine magnetic separation with density-based sorting to ensure product purity and processing safety.

Features:

• High-intensity and high-gradient magnetic separation
• Removes stones, metal, glass, mud balls, and contaminants
• Customizable for various grains, pulses, seeds, and spices
• Compact, durable, and continuous-flow operation
• Available with density separation as an optional feature

Attributes:

• Type: Magnetic Destoner (Dry Type)
• Application: Grains, spices, seeds, pulses, cereals
• Material Feed: Rice, wheat, maize, lentils, spices, etc.
• Contaminant Removal: Stones, metal chips, black stones
• Design: Industrial-grade with easy maintenance access

The Double Drum Magnetic Separator (RP/HP type) is designed for continuous iron removal from dry bulk materials in two stages. Equipped with high-power rare-earth magnets, this machine ensures superior separation efficiency for materials with moderate to high ferrous contamination. Ideal for mineral, refractory, ceramic, and chemical industries.

Features:

• Two-stage iron separation for enhanced purity
• High-power rare-earth magnetic drums
• Available in RP (Regular Power) and HP (High Power) models
• Built-in feed hopper and discharge chutes
• Heavy-duty steel construction with mobility wheels

Attributes:

• Type: Double Drum Magnetic Separator (Dry Type)
• Magnet Strength: RP & HP Options
• Applications: Minerals, Ceramics, Refractories, Chemicals
• Material Handling: Dry granular or powdered feed
• Design: Compact, mobile, and enclosed dust-free operation

Overband Magnetic Separator Machines are used to automatically remove tramp iron and ferrous contaminants from conveyor-carried material. Positioned over conveyor belts or vibratory feeders, these separators protect downstream crushers, shredders, and processing equipment. Available in multiple magnetic field intensities and gap clearances from 100mm to 300mm.

Features:

• Continuous automatic ferrous removal without process interruption
• Permanent magnet system ensures maintenance-free operation
• Five magnetic configurations: 100, 150, 200, 250, 300mm
• Heavy-duty construction for industrial environments
• Suitable for both flat and inclined conveyor systems

Attributes:

• Type: Overband Magnetic Separator (Permanent Type)
• Applications: Coal, Cement, Recycling, Food, Foundries
• Mounting: Over conveyor belt or feeder
• Magnetic Gap Options: 100mm to 300mm
• Purpose: Tramp iron removal and product purification
