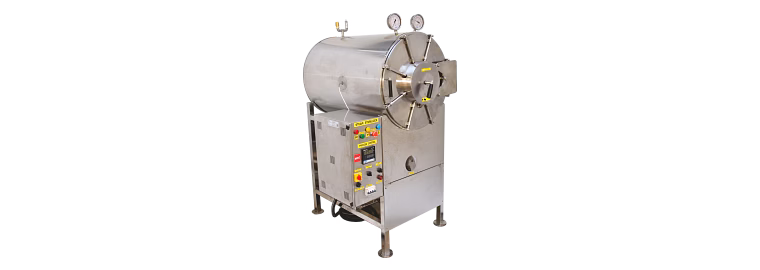

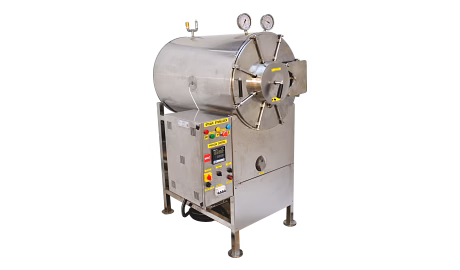

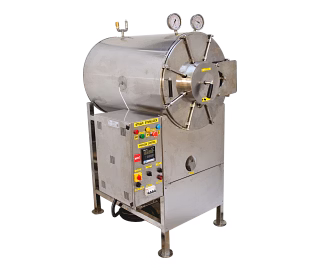

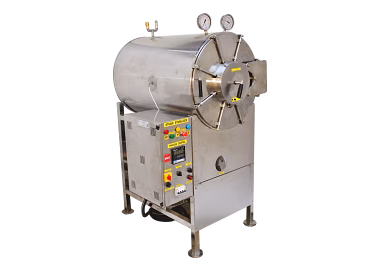

The HORIZONTAL CYLINDRICAL HIGH PRESSURE STEAM STERILIZER (Model: HCSS-80(PROFAD)) is a premium-grade medical sterilization device designed for rigorous and precise sterilization of surgical instruments and lab equipment. Constructed with durable SS-304 stainless steel for both inner chamber and outer components, it ensures high resistance to corrosion and longevity. Equipped with a single radial locking door featuring a self-locking safety mechanism and heat-resistant silicon gasket, it guarantees user safety during operation. The sterilizer operates under high pressure steam conditions, capable of standard (121°C) and high-speed (134°C) sterilization cycles, accommodating pressures from 1.2 kg to 2.5 kg. Featuring an advanced microprocessor-based fuzzy logic controller with a class 'A' Platinum Pt-100 sensor, it enables precise time and temperature programming, ensuring consistent sterilization quality. Safety is prioritized with multiple alarms including low water level, sensor faults, and process completion alerts. Additional features include automatic purging via a user-settable solenoid valve, water level sensing with glass gauge, pressure switch, compound pressure gauge, and a steam deflector for efficient vacuum and dryness during cycles. Its 80-liter capacity chamber (400x600 mm) is powered by a 6.0 KW electric load, well-suited for professional healthcare and laboratory environments requiring reliable sterilization solutions.
Key Features
| Features | Description |
|---|---|
| Chamber Material | SS-304 Stainless Steel |
| Door Type | Single Radial Self-Locking with Silicon Gasket |
| Controller | Microprocessor-based Fuzzy Logic with Pt-100 Sensor |
| Capacity | 80 Liters (400x600 mm chamber size) |
| Operating Pressure | 1.2 kg to 2.5 kg (Standard 121°C and High Speed 134°C) |
| Electric Load | 6.0 KW |
| Safety Features | Low water level alarm and cutoff, sensor fault alarm, safety valves, earth safety system |
| Display | Alphanumeric Digital Backlit LCD |
| Door Locking Mechanism | Self-locking safety door under pressure |
| Operating System | Multiport Valve for Manual Operation (Pre Vacuum, Sterilizer, Fast Exhaust, Vacuum) |
| Attributes | Description |
|---|---|
| Model | HCSS-80 (PROFAD) |
| Chamber Dimensions | 400 x 600 mm |
| Chamber Capacity | 80 Liters |
| Material (Inner Chamber, Outer Cover, Door, Ring) | SS-304 Stainless Steel |
| Control Panel and Stand Material | SS-304 Stainless Steel |
| Controller Type | Microprocessor-based with Fuzzy Logic |
| Temperature Sensor | Class 'A' Platinum (Pt-100) |
| Door Locking Type | Single Radial Type Locking with Self-locking Safety |
| Operating Pressure Range | 1.2 kg to 2.5 kg |
| Operating Temperature | Standard 121°C, High Speed 134°C |
| Electric Load | 6.0 KW |
| Safety Features | Low Water Level Alarm & Cutoff, Sensor Open Alarm, Safety Valves, Earth Safety System, Weight Safety Valve |
| Display Type | Alphanumeric Digital Backlit LCD |
| Steam Control | Solenoid Valve for Automatic Purging & Exhaust |
| Additional Features | Steam Deflector, Air Vent/Steam Trap, Pressure and Compound Gauges |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
HCSS-80 includes a self-locking safety door, low water level alarm and automatic heater cutoff, sensor fault alarms, spring-loaded and weight safety valves for overpressure protection, and an earth safety system to ensure operator and machine safety.
The microprocessor-based fuzzy logic controller with a Class 'A' Platinum (Pt-100) sensor allows precise time and temperature programmability, monitoring, and control, ensuring consistent sterilization cycles tailored to specific user requirements.
Yes, it supports two working cycles: standard speed at 121°C and high speed at 134°C with operating pressures ranging between 1.2 kg and 2.5 kg, allowing flexible sterilization depending on the requirement.
The sterilizer features a single radial type locking door with a self-locking safety feature and heat-resistant silicone gasket to securely seal the chamber under pressure and ensure safe operation.
It employs a solenoid valve for automatic purging and exhaust that can be set by the user, optimizing steam usage and cycle efficiency.
Brand: mac
Country Of Origin: India
• Inner Chamber, Outer Cover, Jacket, Door & Ring : SS-304
• Door Type /Locking : Single Radial Type Locking Door
• Control Panel & Stand : SS – 304
• µProcessor based Controller with time and temperature programmable by user. Class 'A' Platinum (Pt-100) sensor, enabling precise and accurate monitoring. Low water level alarm and cut off for safety of heater. Sensor open alarm and display. End of cycle buzzer to alert the user and auto reset. Solenoid Valve for automatic purging and exhaust (user settable).
Self-Locking Safety Door Under pressure and heat resistant SILICON door gasket.
Water Level Gauge Glass Show water level with SENSOR
Safety Valves Spring loaded valve in jacket for over pressure protection
Weight safety valve in jacket for over pressure protection
Pressure Switch For Pressure cut off & low power consumption
Low Water Cut Off To protect electric heaters (Safety For Heating Element)
Earth Safety System For safety of operator and machine (Safety For Human Life)
Steam Deflector For better vacuum and dryness
Air Vent / Steam Trap Moisture trap
Pressure Gauge To indicate steam pressure of jacket
Compound Gauge To indicate chamber steam pressure and vacuum
Alarm System Process completion buzzer system
Display Steam pressure/ temp.
Model : HCSS-80(PROFAD)
Chamber Size : 400x600 mm
Capacity : 80 Ltrs.
Electric Load : 6.0 KW
Controller : Microprocessor Based Fully Automatic Fuzzy Logic Control System with Alphanumeric Digital backlit LCD display
Working Cycle : 1 - Standard Speed Working Pressure (121°C), 2- High Speed Working Pressure (134°C) (1.2 kg ) to (2 .5 kg )
Operating System (For Manual) : Multiport Valve (Pre Vacuum, Sterilizer, Fast Exhaust, Vacuum)
