The 100W Horizontal Axis Wind Turbine Test Bench by Atto Labware India is a precision-engineered educational device built for in-depth study and analysis of wind energy conversion principles in a controlled lab environment. Featuring a horizontal axis design and equipped with aerodynamic nylon fiber blades (3 or 5 configurations), the system offers hands-on learning opportunities about wind-to-electricity conversion, generator characteristics, blade aerodynamics, and speed regulation. Its three-phase permanent magnet AC generator delivers rated power of 100W at voltages of 12V or 24V, initiating operation at a low wind speed of just 2.0 m/s. The bench incorporates an electromagnetic controller for speed regulation, a durable die-cast aluminum generator case, and safety guards ensuring secure operation. With performance measurement instruments including voltmeter, ammeter, and load banks, users can explore generator output, turbine efficiency, and power curves under varying simulated wind conditions powered by an axial fan with VFD for speed control. Optional software extends capabilities for real-time data acquisition and SCADA integration, making it ideal for renewable energy research labs, universities, and technology institutes specializing in wind energy and sustainable power generation.
Key Features
| Features | Description |
|---|---|
| Power Rating | 100W rated power, capable up to 120W maximum |
| Blade Material and Number | Nylon fiber blades, available in 3 or 5 blade configurations |
| Start-Up Wind Speed | Low start-up wind speed of 2.0 m/s |
| Generator Type | Three-phase permanent magnet AC generator with NdFeB magnetic steel |
| Speed Regulation | Electromagnetic controller with automatic windward adjustment |
| Simulation Control | Axial fan with variable frequency drive (VFD) for controlled wind simulation |
| Performance Measurement | Includes voltmeter, ammeter, DC/AC load banks for accurate power and efficiency analysis |
| Safety Features | Protective guard enclosure and electromagnetic braking system |
| Construction | Robust die-cast aluminum generator casing and DN20 mounting flange |
| Optional Software | Real-time data logging and SCADA-compatible monitoring software available |
| Attributes | Description |
|---|---|
| Rated Power | 100W |
| Maximum Power | 120W |
| Rated Voltage | 12V / 24V |
| Start-Up Wind Speed | 2.0 m/s |
| Rated Wind Speed | 10.5 m/s |
| Survival Wind Speed | 55 m/s |
| Wheel Diameter | 1.15 meters |
| Blade Number | 3 or 5 |
| Blade Material | Nylon Fiber |
| Generator | Three-Phase Permanent Magnet AC Generator |
| Magnetic Steel | NdFeB |
| Generator Case | Die-Cast Aluminum |
| Controller System | Electromagnetic Speed Regulation |
| Speed Regulation Type | Automatic Windward Adjustment |
| Mounting Flange Diameter | DN20 |
| Working Temperature Range | -40°C to +80°C |
| Gross Weight | 10 kg |
| Net Weight | 6 kg |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the test bench offers customizable blade configurations with either 3 or 5 nylon fiber blades to study different aerodynamic effects.
The system supports performance evaluation starting from a low wind speed of 2.0 m/s up to rated wind speeds of 10.5 m/s, and it can withstand survival speeds of up to 55 m/s.
Optional software packages are available to provide real-time monitoring and data logging capabilities, including compatibility with PC interfaces and SCADA systems for advanced analysis.
The turbine uses a three-phase permanent magnet AC generator with NdFeB magnetic steel for high efficiency, enclosed in a durable die-cast aluminum case.
The electromagnetic speed regulation system automatically adjusts the turbine's windward positioning and applies electromagnetic braking to maintain optimal rotational speeds.
The test bench includes a protective guard enclosure to prevent accidental contact with moving parts and an electromagnetic braking system to control turbine speed safely.
Yes, its compact design, standard DN20 mounting flange, and optional software compatibility make it ideal for seamless integration in renewable energy labs and university research setups.
Country Of Origin: India
The 100W Horizontal Axis Wind Turbine Test Bench, developed and supplied by Atto Labware India, is a compact and efficient educational trainer designed to study the principles of wind energy conversion using a horizontal axis configuration. With a low start-up wind speed of 2.0 m/s and high-performance aerodynamic blades, this system demonstrates the generation of electrical power from wind under controlled laboratory conditions. The test bench is equipped with a three-phase permanent magnet AC generator, electromagnetic controller, and safety features for accurate measurement and safe operation — ideal for renewable energy labs, universities, and research institutes.

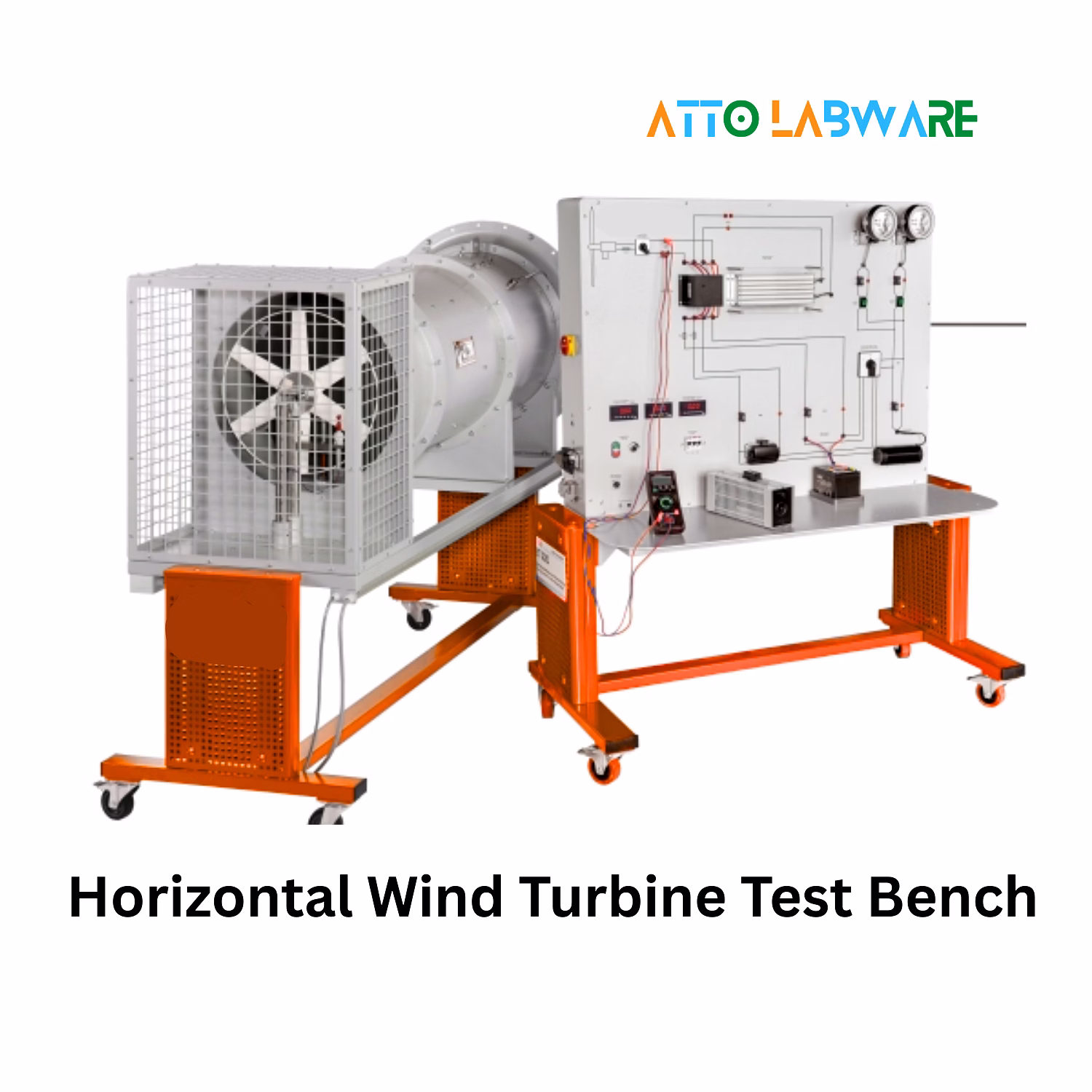

100W Horizontal Axis Wind Turbine Test Bench
The 100W Horizontal Axis Wind Turbine Test Bench, developed and supplied by Atto Labware India, is a compact and efficient educational trainer designed to study the principles of wind energy conversion using a horizontal axis configuration. With a low start-up wind speed of 2.0 m/s and high-performance aerodynamic blades, this system demonstrates the generation of electrical power from wind under controlled laboratory conditions. The test bench is equipped with a three-phase permanent magnet AC generator, electromagnetic controller, and safety features for accurate measurement and safe operation — ideal for renewable energy labs, universities, and research institutes.
Educational Objectives
Demonstrate wind energy conversion using a horizontal axis wind turbine (HAWT).
Study the relationship between wind speed and generated electrical power.
Analyze generator characteristics, blade aerodynamics, and speed regulation.
Explore system efficiency under various wind and load conditions.
Conduct hands-on experiments on voltage, current, and power output measurement.
Performance Measurement
Measurement of output voltage and current under different wind speeds.
Evaluation of start-up, rated, and survival wind speed performance.
Determination of turbine efficiency and power curve plotting.
Observation of automatic windward adjustment and electromagnetic braking.
Optional software for real-time monitoring and data logging.
Panel & Instruments / Components

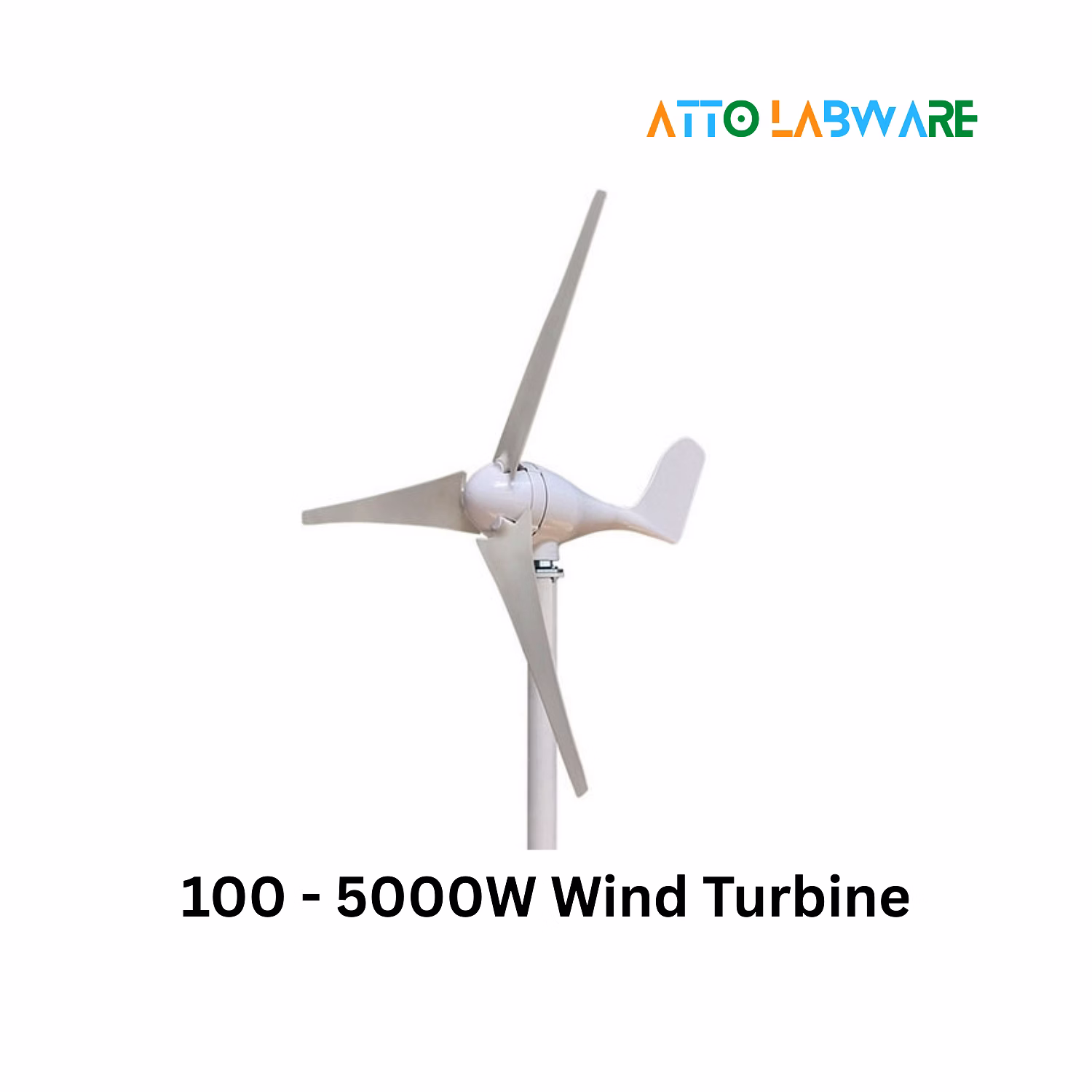

Horizontal Axis Wind Turbine Unit (3 or 5 Nylon Fiber Blades)
Test Bench / Mounting Stand
Axial Fan (for controlled wind simulation)

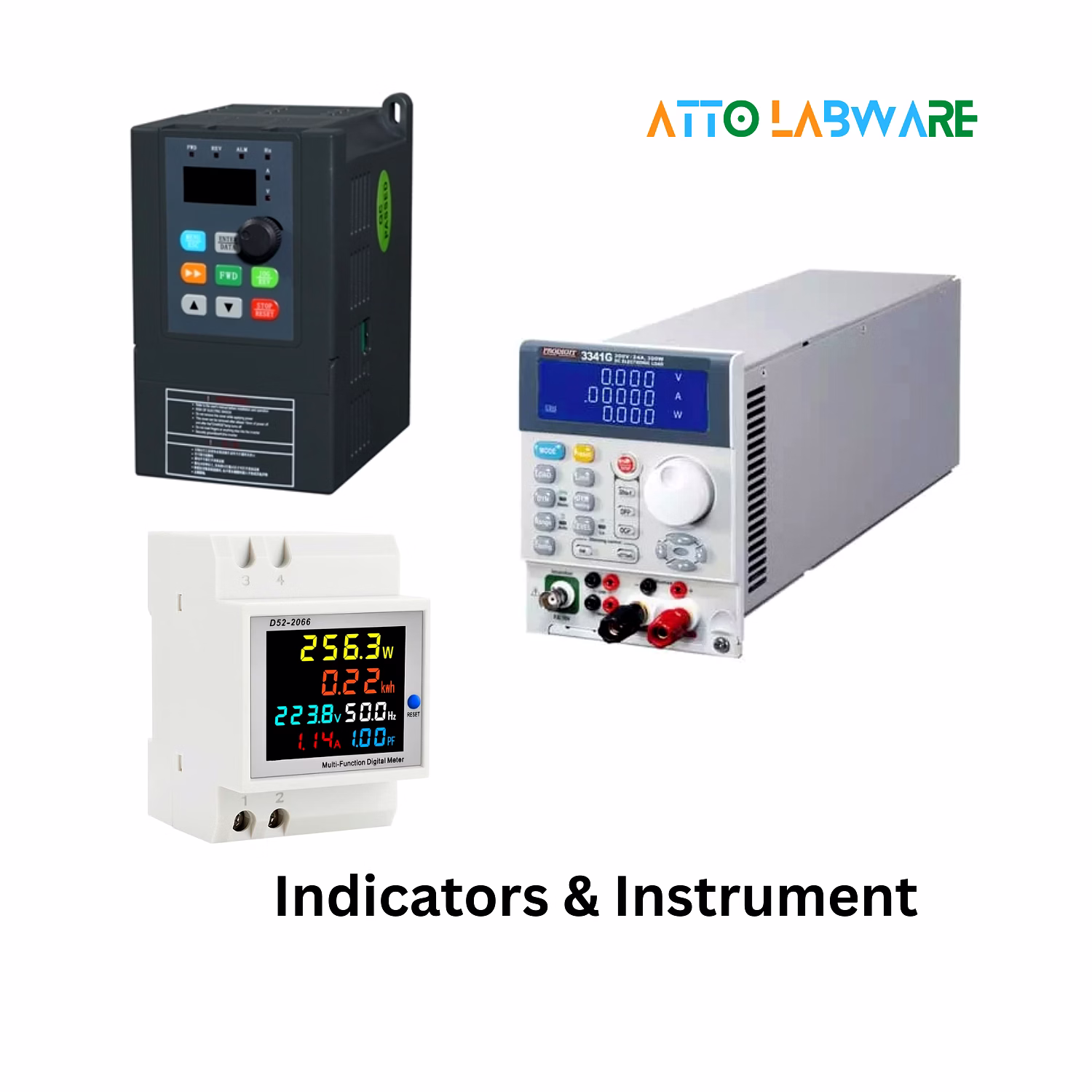

VFD (Variable Frequency Drive) (for fan speed regulation)
Charge Controller (DC regulation and safety)
Volt Meter (real-time voltage display)
Ammeter (current monitoring)
DC / AC Load Bank (performance testing under varying loads)
Output Terminals & Cabling Panel
Safety Guard / Protective Enclosure
Mounting Flange (DN20)
⚙ Specifications
Specification Value
Rated Power 100W
Maximum Power 120W
Rated Voltage 12V / 24V
Start Up Wind Speed 2.0 m/s
Rated Wind Speed 10.5 m/s
Survival Wind Speed 55 m/s
Wheel Diameter 1.15 m
Blade Number 3 / 5
Blade Material Nylon Fiber
Generator Three-Phase Permanent Magnet AC Generator
Magnetic Steel NdFeB
Generator Case Die-Cast Aluminum
Controller System Electromagnetic
Speed Regulation Automatically Adjust Windward
Installation Flange DN20
Working Temperature -40°C ~ +80°C
Gross Weight 10 kg
Top Net Weight 6 kg
Optional Features & Customization
Optional software package for data logging and performance analysis.
Customized blade configurations (3 or 5 blades).
Compatible with PC interface or SCADA integration for advanced monitoring.
