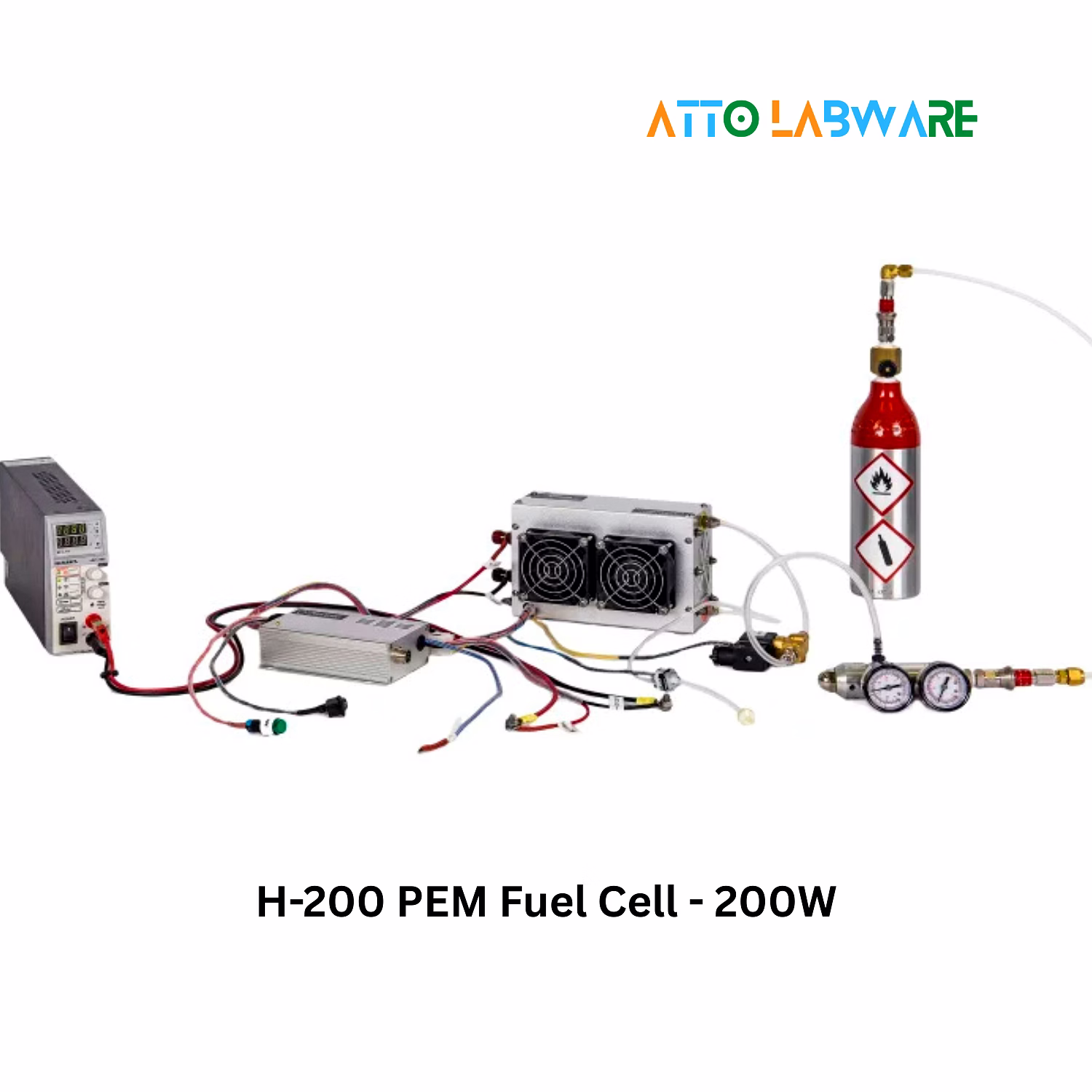

The Horizon-200 PEM Fuel Cell Test System is a cutting-edge 200W educational and research trainer designed specifically for hydrogen fuel cell technology exploration. Developed by Horizon Fuel Cell Technologies and manufactured by Atto Labware India, this test system provides a comprehensive platform to study the electrochemical conversion of hydrogen into electrical energy using a Proton Exchange Membrane (PEM) fuel cell stack. It features an integrated hydrogen generator, digital flow controller, gas leak detector, and controlled DC load to simulate realistic operating conditions and test performance parameters such as voltage, current, power output, efficiency, and polarization curves. With robust safety features including over-temperature, over-current, and low-voltage protections, the Horizon-200 ensures safe, reliable, and repeatable laboratory experiments. This portable and rugged system is perfect for renewable energy laboratories, technical institutes, universities, and research and development centers focused on clean energy technologies. Its modular design and optional customization allow for enhanced studies and software integration via LabVIEW, making it ideal for advanced educational and experimental objectives in hydrogen fuel cell performance analysis and efficiency optimization.
Key Features
| Features | Description |
|---|---|
| Power Output | 200 Watts |
| Fuel Cell Type | Proton Exchange Membrane (PEM) Fuel Cell Stack |
| Operating Voltage | 24V DC |
| Maximum Current Output | 8.3 Amperes |
| Cooling Method | Air-cooled, self-humidified |
| Safety Features | Over-temperature, Over-current, Low-voltage protection |
| Hydrogen Supply | Integrated Hydrogen Generator |
| Hydrogen Flow Control | Digital Flow Controller for precise regulation |
| Gas Safety | Integrated Gas Leak Detector |
| Load Management | Controlled DC Load for variable performance testing |
| Portability | Rugged and portable design for laboratory use |
| Educational Utilities | Comes with instructional manuals and experiment guides |
| Customization | Optional customized specifications and LabVIEW software integration available |
| Attributes | Description |
|---|---|
| Manufacturer | Atto Labware India |
| Developer | Horizon Fuel Cell Technologies |
| Rated Power | 200 Watts |
| Operating Voltage | 24 Volts Direct Current |
| Maximum Load Current | 8.3 Amps |
| Fuel Cell Stack Type | PEM Fuel Cell Stack |
| Cooling | Air-cooled, self-humidified |
| Safety Protections | Over-temperature, Over-current and Low-voltage Protection |
| Hydrogen Supply System | Integrated Hydrogen Generator |
| Flow Control | Digital Hydrogen Flow Controller |
| Leak Detection | Gas Leak Detector included |
| Load Type | Controllable DC Load |
| Portability | Yes, rugged and portable |
| Documentation | Instruction manuals and experimental guides included |
| Customization Options | Yes – accessories, panel instruments, LabVIEW software |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the system includes a controllable DC load that allows users to perform performance and efficiency analysis under varying electrical loads to simulate real-world operating conditions.
The system incorporates a gas leak detector for continuous monitoring of hydrogen leakage, along with safety protections such as over-temperature, over-current, and low-voltage protections to ensure safe and reliable operation.
Yes, the Horizon-200 includes a digital hydrogen flow controller that precisely regulates the hydrogen supply for accurate and reproducible testing conditions.
Absolutely. The system supports customization of specifications, additional accessories, panel instruments, and LabVIEW software integration upon request, making it ideal for advanced R&D and educational projects.
The PEM fuel cell stack uses an air-cooled, self-humidified cooling method, eliminating the need for external cooling systems and simplifying laboratory setup.
Brand: atto labware
Country Of Origin: India
The Horizon-200 PEM Fuel Cell Test System (200W), developed by Horizon Fuel Cell Technologies and manufactured, exported, and supplied by Atto Labware India, is an advanced educational and research trainer designed to explore hydrogen fuel cell technology. This system demonstrates hydrogen-to-electricity conversion, efficiency, and performance under various load conditions. With integrated safety and control features, it is ideal for renewable energy labs, technical institutes, universities, and R&D centers.
The Horizon 200 PEM Fuel Cell Test System, developed by Horizon Fuel Cell Technologies and manufactured, exported, and supplied by Atto Labware India, is an advanced educational and research trainer designed to explore hydrogen fuel cell technology. This system demonstrates hydrogen-to-electricity conversion, efficiency, and performance under various load conditions. With integrated safety and control features, it is ideal for renewable energy labs, technical institutes, universities, and R&D centers.
Educational Objectives
Students and researchers will be able to:
Understand the working principle of Proton Exchange Membrane (PEM) fuel cells.
Study the electrochemical conversion of hydrogen into electrical energy.
Analyze performance under varying load and flow conditions.
Measure efficiency, polarization curves, and V-I characteristics.
Explore applications of hydrogen as a clean and renewable energy source.
Performance Measurement
Demonstration of hydrogen-to-electricity conversion.
Measurement of voltage, current, and power output.
Observation of efficiency and performance under different loads.
Study of polarization curves and characteristic trends.
Validation of theoretical models through experimental data.
Panel and Instruments / Components

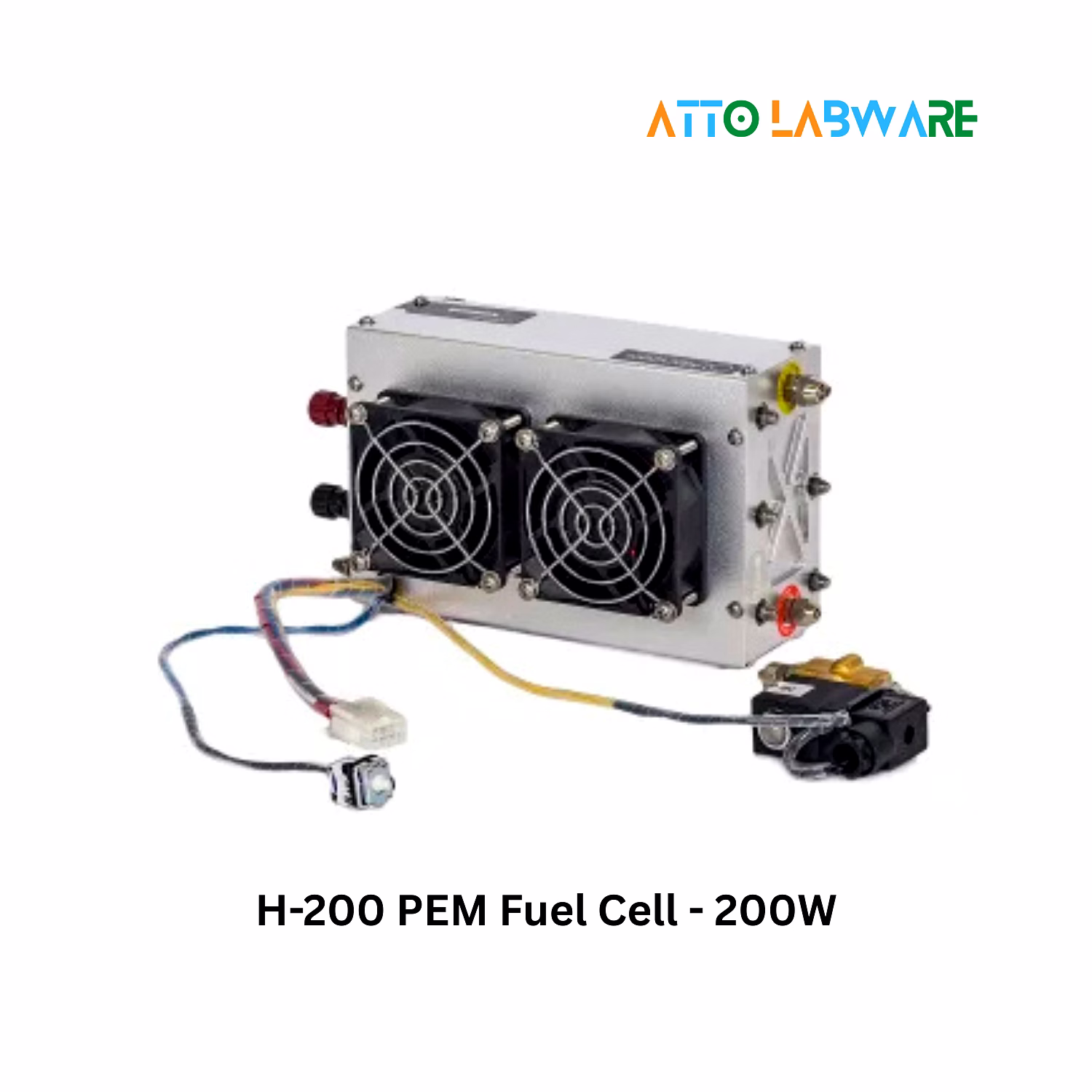

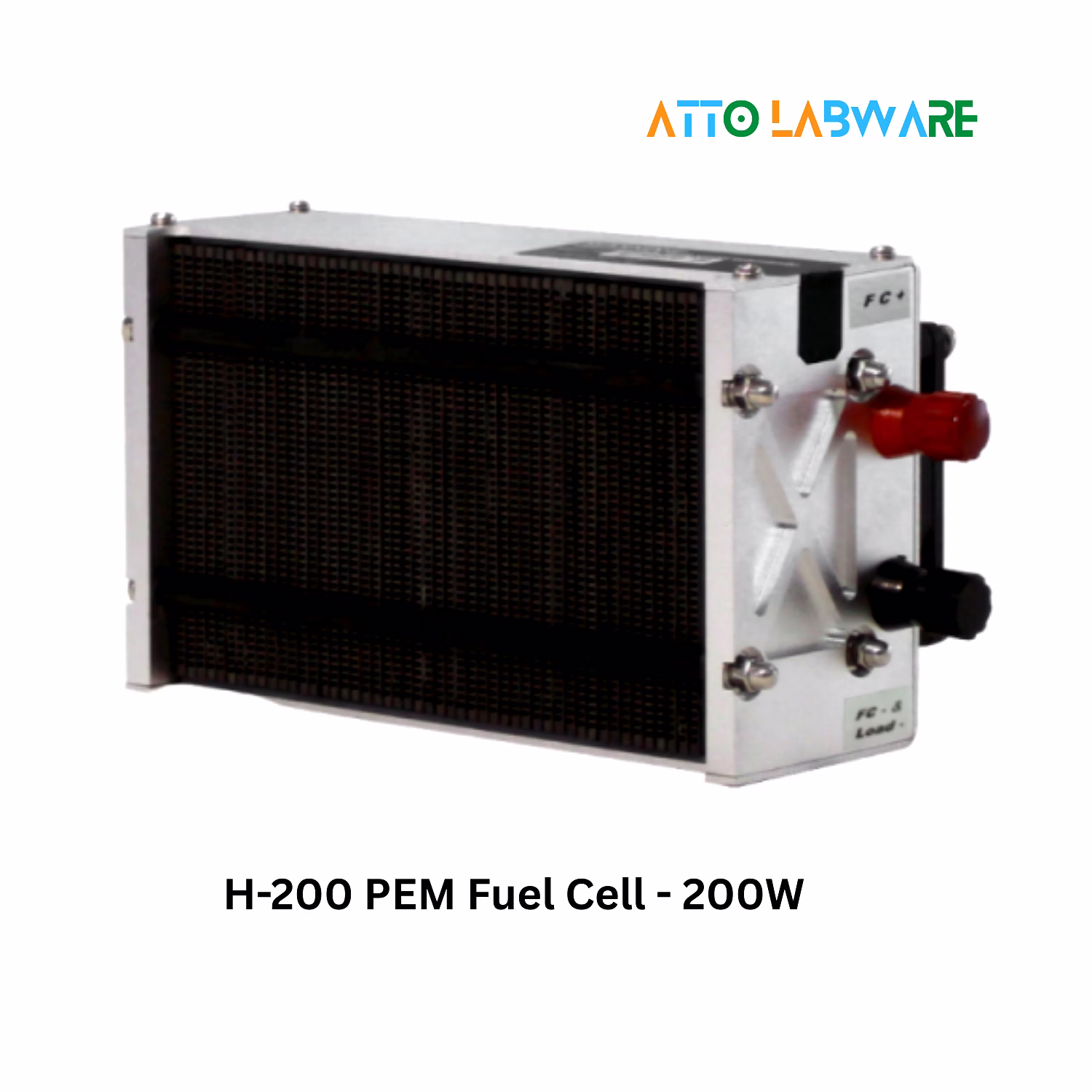

Horizon 200W PEM fuel cell stack integrated into the test system.
Control panel with monitoring instruments for voltage, current, and power.
Electrical terminals for external load connection.
Panel Accessories with Usage:

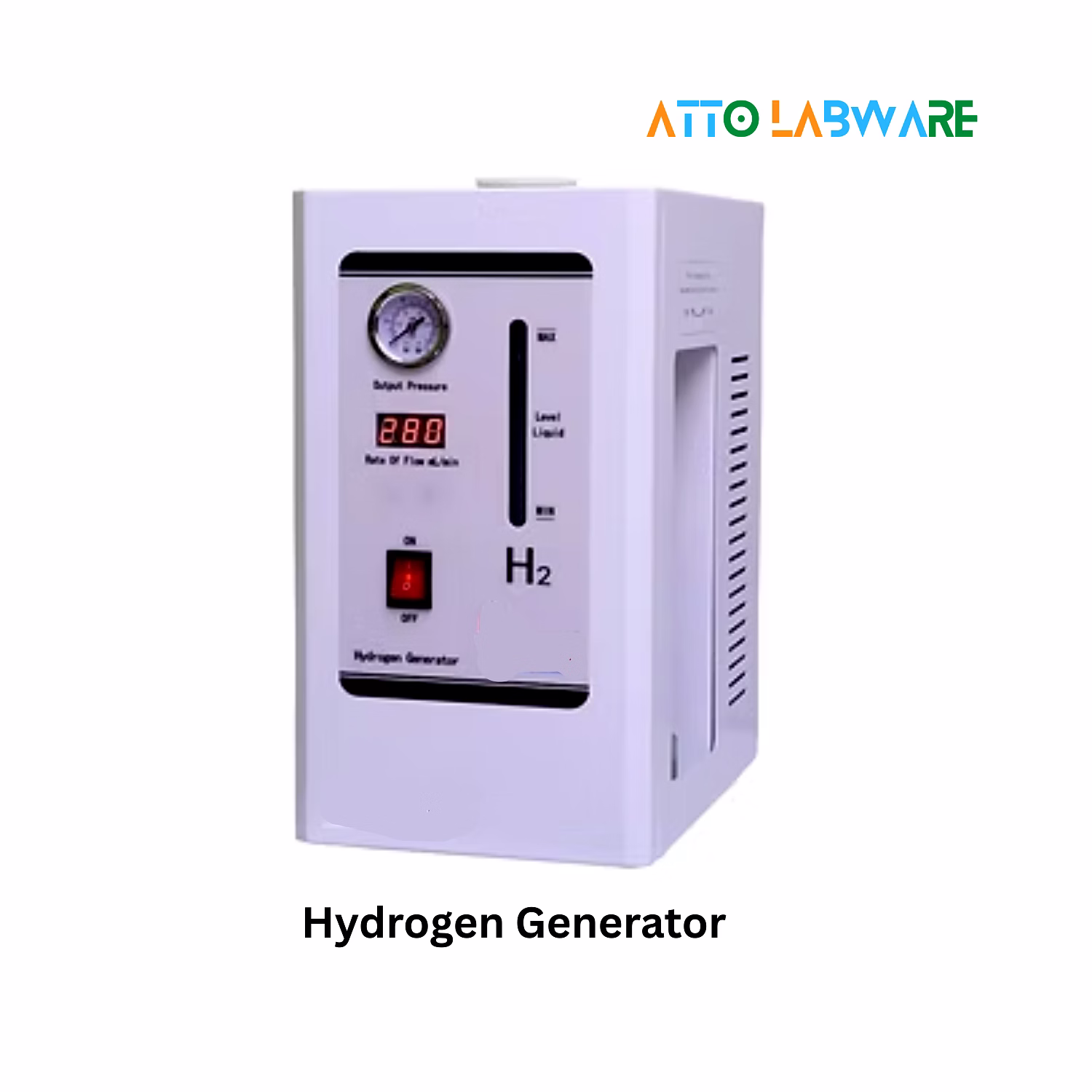

Hydrogen Generator: Provides a safe, continuous hydrogen supply to the fuel cell.
Digital Hydrogen Flow Controller: Regulates hydrogen flow precisely for accurate testing.
Gas Leak Detector: Ensures safe operation by monitoring hydrogen leakage.

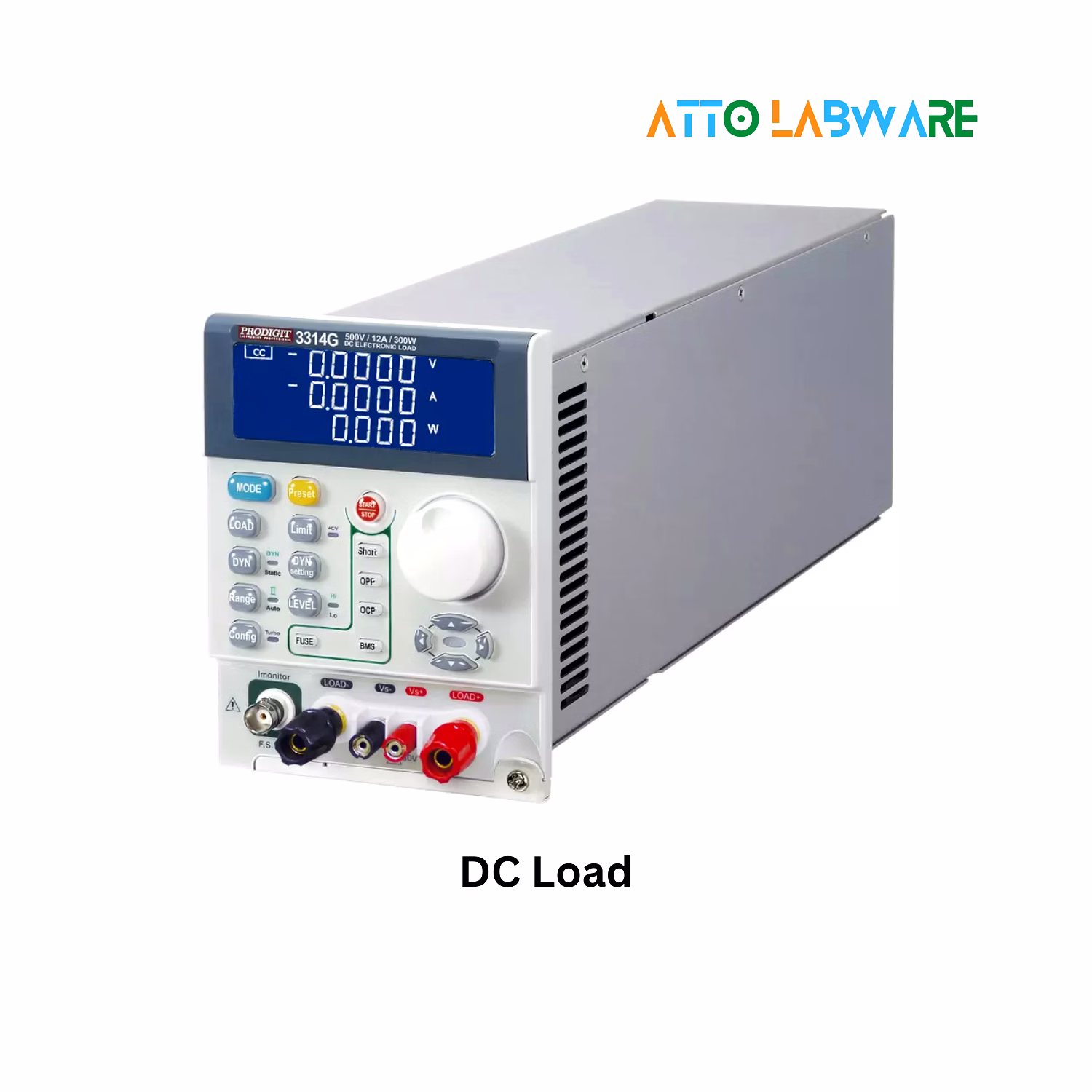

DC Load: Enables controlled electrical loading for performance and efficiency analysis.
Instructional manuals and experiment guides.
Rugged, portable, and safe construction for repeated laboratory use.
Specifications
⚡ Fuel Cell Stack: Horizon Fuel Cell Technologies
⚡ Test System Manufacturer: Atto Labware India
⚡ Rated Power Output: 200W
⚡ Operating Voltage: 24V DC
⚡ Current Output: Up to 8.3A
⚡ Cooling: Air-cooled, self-humidified
⚡ Safety Features: Over-temperature, over-current, and low-voltage protection
Note: Customized specifications, accessories, panel instruments, and LabVIEW software available on request.
