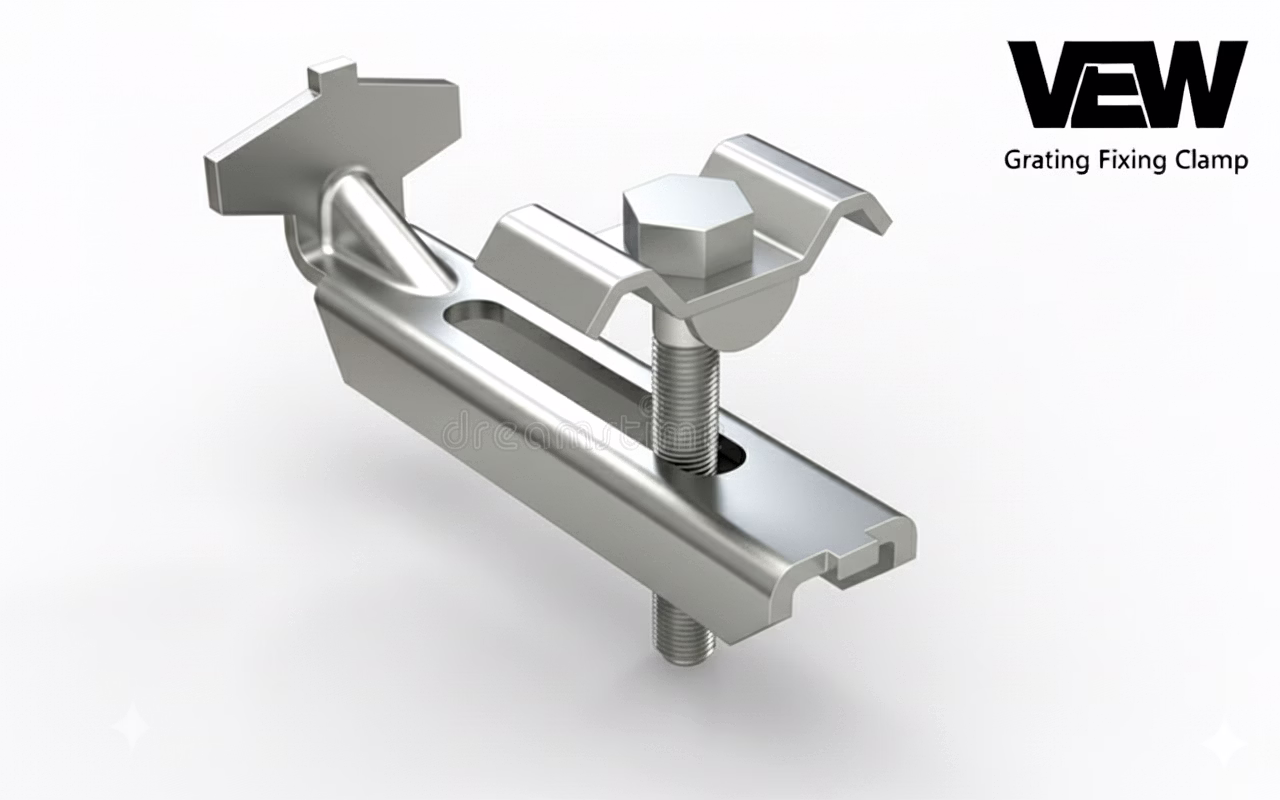

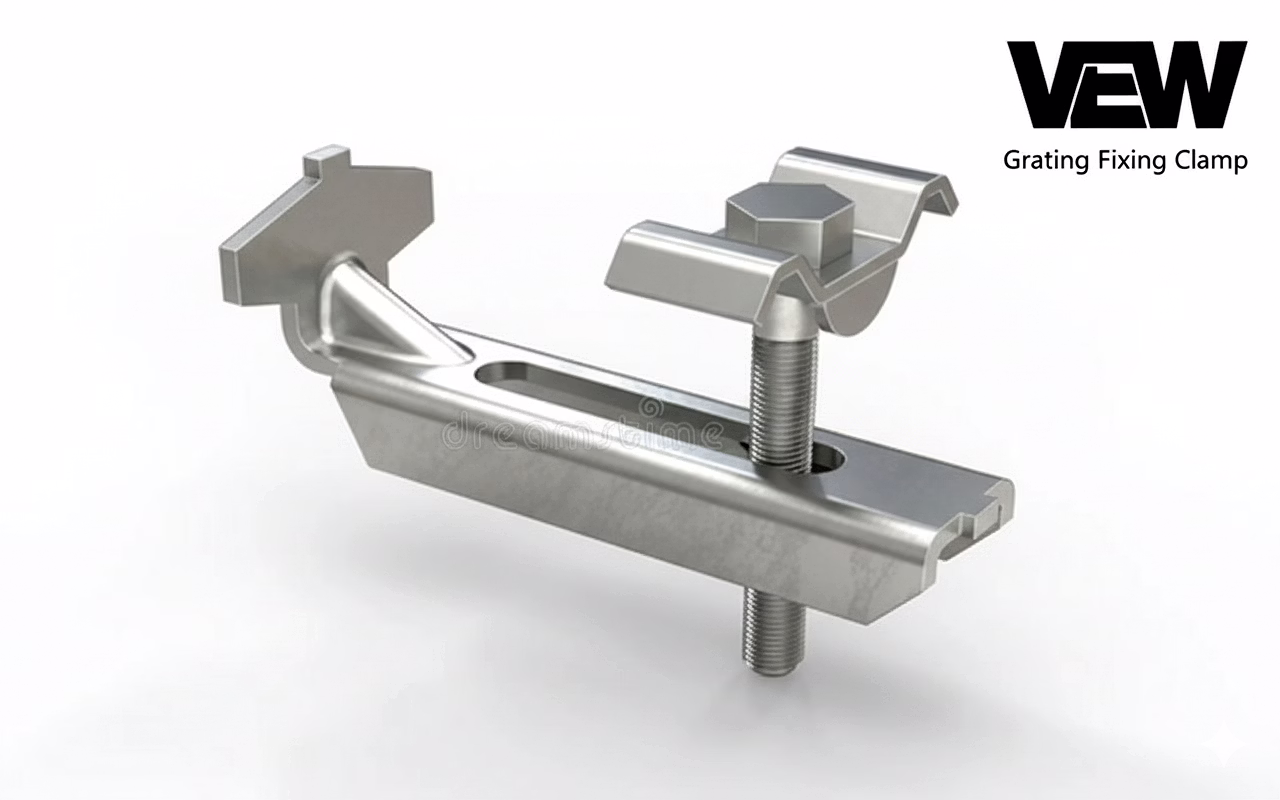

The Vishwakarma Engineering Works (VEW) Grating Fixing Clamp is an expertly engineered, weld-free fastening solution designed specifically for securing floor gratings rapidly and reliably without compromising the structural integrity of the installation surface. This universal clamp is compatible with Stainless Steel, Aluminium, and FRP/GRP gratings, accommodating grating bar widths from 30mm up to 41mm and bar depths of up to 50mm. Its innovative design eliminates the need for welding or drilling, making it ideal for environments such as offshore, chemical plants, and industrial facilities where conventional fixing methods are restricted or undesirable. Crafted from premium materials including Mild Steel with hot-dip galvanized finish and high-grade Stainless Steel (SS 304 and SS 316), the clamp ensures exceptional corrosion resistance suited for harsh operating conditions. Featuring a robust assembly composed of a 3mm thick pressed bottom clamp plate, a 2mm thick top M-type saddle clip, and M8 x 70mm fasteners, this fixing clamp offers long-lasting performance with easy top-down installation using standard hand tools. VEW Grating Fixing Clamps deliver unparalleled adaptability, durability, and efficiency for demanding fastening applications, providing a reliable and maintenance-free solution to secure industrial flooring gratings quickly without damage or compromise.
Key Features
| Features | Description |
|---|---|
| Universal Compatibility | Fits Stainless Steel (SS), Aluminium (Al), and FRP/GRP gratings |
| Weld-Free Installation | No drilling or welding required, preserving structural integrity |
| Grating Size Accommodation | Supports bar widths 30mm to 41mm and bar depths up to 50mm |
| Material Options | Mild Steel (Hot Dip Galvanized), SS 304 (Mill/Polished), SS 316 (Mill/Polished) |
| Robust Components | Bottom clamp plate 3mm thick, top saddle clip 2mm thick, M8 x 70mm bolts and nuts |
| Corrosion Resistance | Available with hot dip galvanized coating and high-grade stainless steel for harsh environments |
| Easy Installation | Top-down tightening with basic hand tools without specialized equipment |
| Application Areas | Ideal for industrial, offshore, chemical plants, and other high-spec environments |
| MOQ | 1 Number |
| Export Ready | Designed for international shipment with durable finish options |
| Attributes | Description |
|---|---|
| Grating Bar Width Compatibility | 30mm to 41mm |
| Grating Bar Depth Compatibility | Up to 50mm |
| Material Grades Available | Mild Steel (HDG), Stainless Steel SS 304 (A2), SS 316 (A4) |
| Finish Options | Hot Dip Galvanized, Mill Finish, Polished Finish |
| Bottom Clamp Thickness | 3mm |
| Top Clip Thickness | 2mm |
| Fastener Size | M8 x 70mm Bolt and Nut (custom sizes upon request) |
| Installation Method | Weld-Free, Drill-Free, Top Down Tightening |
| MOQ | 1 Number |
| Suitable Grating Types | S.S., Al., FRP/GRP Floor Gratings |
| Intended Use Environment | Industrial, Offshore, Chemical Plant |
| Store Name | VISHWAKARMA ENGINEERING WORKS |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the clamp is universally compatible and can securely fix Stainless Steel, Aluminium, and FRP/GRP gratings without welding.
No, the VEW Grating Fixing Clamp uses a weld-free fastening mechanism that avoids drilling or welding, preserving beam integrity.
The clamp is designed for grating bar depths up to 50mm.
Yes, the clamp can be supplied in Mild Steel with hot dip galvanizing for general corrosion protection, or high-grade SS 304 and SS 316 stainless steel with mill or polished finishes for enhanced resistance.
Standard fasteners included are M8 x 70mm bolts and nuts, with variable sizes available upon request.
Country Of Origin: India
The Vishwakarma Engineering Works (VEW) Grating Fixing Clamp is a premium, multi-purpose solution designed for quick, secure, and non-invasive fastening of floor gratings. Ideal for environments where welding or drilling is restricted, this clamp ensures reliable performance across various industrial applications.
Universal Compatibility: Suitable for fixing Stainless Steel (S.S.), Aluminium (Al.), and FRP/GRP Gratings.
Weld-Free Installation: Eliminates the need for drilling or welding, preserving the structural integrity of beams and reducing installation time.
High Adaptability: Designed to accommodate standard grating sections with:
Grating Bar Widths: 30mm to 41mm
Grating Bar Depths: Up to 50mm deep
We offer a range of robust materials and finishes to suit specific environmental and load-bearing requirements:
| Component Material | Material Grade | Finish Options |
| Mild Steel | Standard | Hot Dip Galvanized |
| Stainless Steel | SS 304 (A2) | Mill Finish / Polished |
| Stainless Steel | SS 316 (A4) | Mill Finish / Polished |
All components are available in a high-durability Hot Dip Galvanized finish for superior corrosion protection.

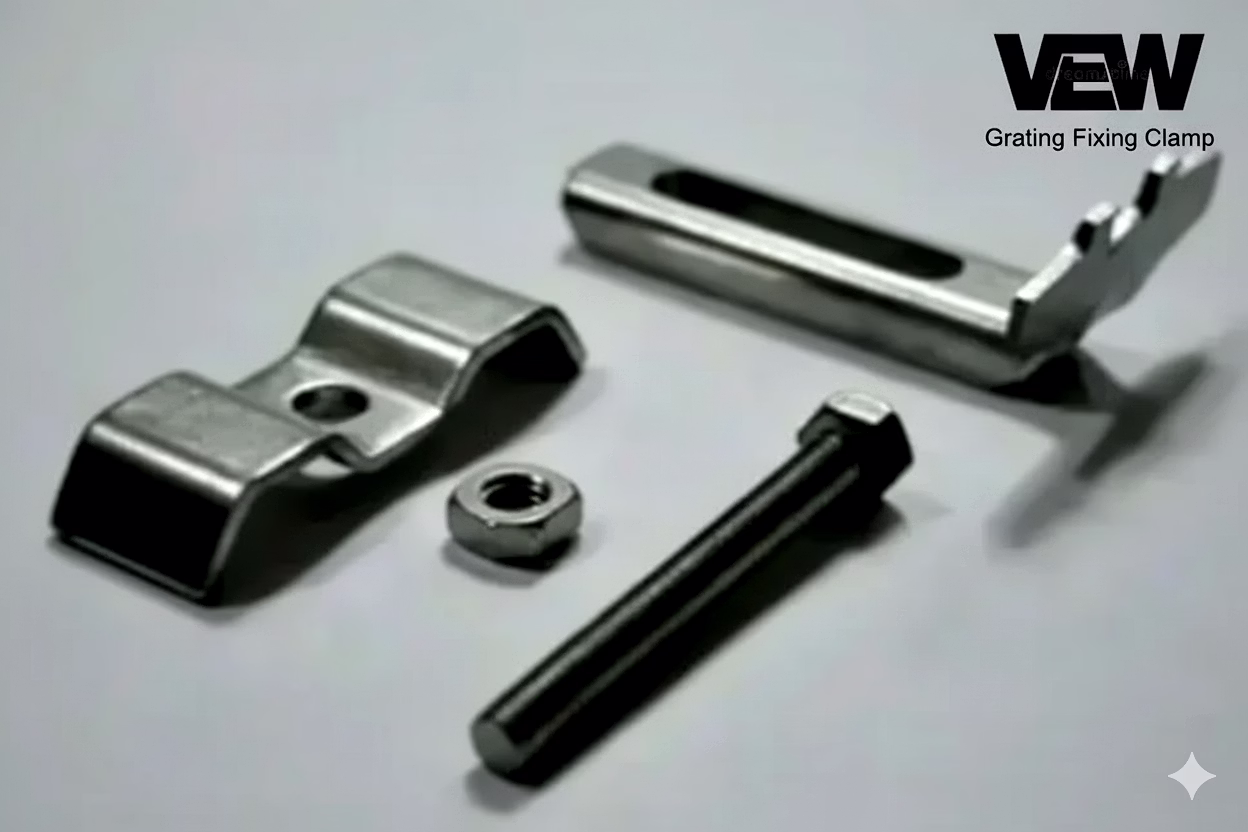

Each clamp assembly is comprised of the following heavy-duty parts:
Bottom Clamp (Pressed Clamp Plate): 3mm Thickness Material
Top Clamp (M-Type Saddle Clip): 2mm Thickness Material
Fasteners: M8 x 70mm Bolt and Nut (Variable Bolt Sizes also available upon request)
Longevity: Available in SS 316 (A4) for maximum resistance in harsh, corrosive environments.
Efficiency: Allows for simple, top-down fastening using basic hand tools.
Reliability: Engineered to meet the demanding specifications of industrial, offshore, and chemical plant applications.
Inquire today for bulk pricing and technical specifications.
