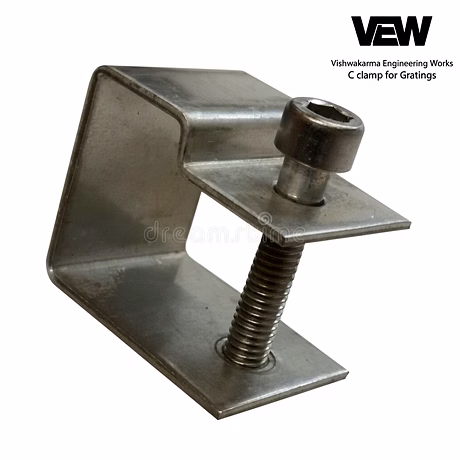

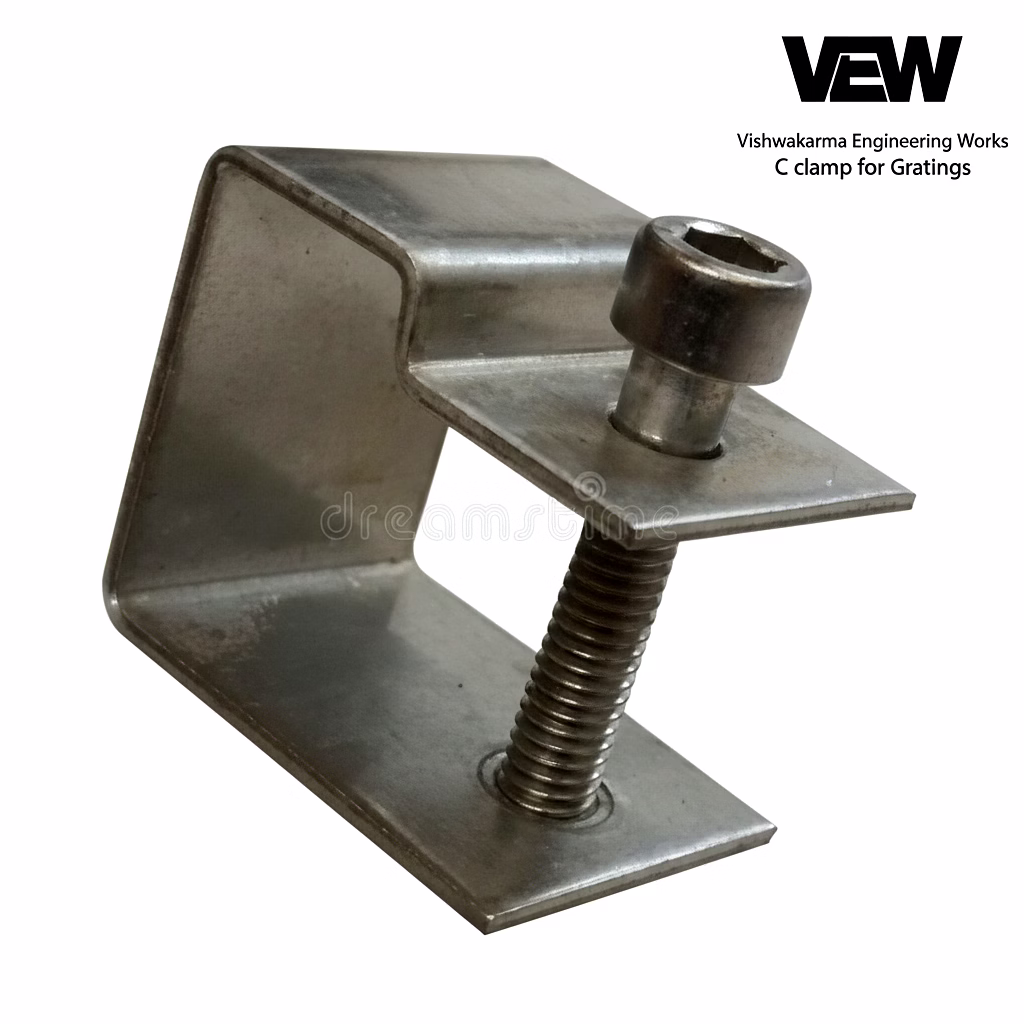

The Grating C Clamp by VISHWAKARMA ENGINEERING WORKS is a precision-engineered, heavy-duty clamping tool made from high-grade stainless steel (AISI 304 or 316) designed to securely fasten molded FRP grating panels. Engineered for industrial and commercial grating installations, this clamp offers superior durability and corrosion resistance, making it ideal for harsh environments. It supports various grating heights including 25mm, 30mm, 38mm, and 50mm, and uses M6 or M8 Allen cap bolts for robust fastening without the need for drilling, allowing top-side access during installation. The clamp's design ensures easy and secure alignment by gripping adjacent load bars horizontally, providing a reliable connection to prevent displacement under load. Available in mill or polished finishes, the clamp is suited for heavy industrial usage requiring high strength, longevity, and quick installation of molded FRP gratings in factory floors, walkways, platforms, and other commercial structures.
Key Features
| Features | Description |
|---|---|
| Material | Stainless Steel AISI 304 or 316 |
| Finish | Mill or Polished |
| Compatibility | Molded FRP Gratings |
| Grating Heights Supported | 25mm, 30mm, 38mm, 50mm |
| Fastener Type | M6 or M8 Allen Cap Bolt |
| Installation Method | Top-side access with no drilling required |
| Installation Procedure | Securely clamps adjacent load bars with diagonal insertion and twist-to-lock design |
| Corrosion Resistance | High corrosion resistance due to stainless steel construction |
| Usage | Designed for heavy-duty industrial grating fastening |
| Bolt Length | Varies according to grating height |
| Attributes | Description |
|---|---|
| Clamp Type | C clamp for grating panels |
| Material Grades | AISI 304 or 316 Stainless Steel |
| Finish Options | Mill or Polished |
| Compatible Grating | Molded Fiber Reinforced Plastic (FRP) Gratings |
| Grating Thickness Compatibility | 25mm, 30mm, 38mm, 50mm |
| Fastening Hardware | M6 or M8 Allen Cap Bolt bolts with base nut |
| Installation Access | Top-side access, no drilling needed |
| Installation Tool | Standard Allen key |
| Corrosion Resistance | Suitable for outdoor and industrial environments |
| Weight | Varies per clamp size |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The Grating C Clamp is specifically designed for grating heights of 25mm, 30mm, 38mm, and 50mm. Using it outside these thicknesses may result in improper fit and reduced fastening strength.
No, the clamp offers top-side access installation and does not require any drilling into the grating panels, simplifying and speeding up the fastening process.
The clamp uses either M6 or M8 Allen Cap Bolts, with the length chosen according to grating height, ensuring a secure and tight fit.
Yes, made from corrosion-resistant AISI 304 or 316 stainless steel, the clamp is suitable for harsh industrial environments and outdoor applications.
This clamp is specifically compatible with molded FRP gratings. Compatibility with other grating materials is not guaranteed and should be verified.
Country Of Origin: India
Material: Stainless Steel AISI 304 or 316
Finish: Mill or Polished
Compatibility: Molded FRP Gratings
Grating Heights: 25mm, 30mm, 38mm, 50mm
Fasteners: M6 or M8 Allen Cap Bolt (Length varies by grating height)
Installation: Top-side access; no drilling required.

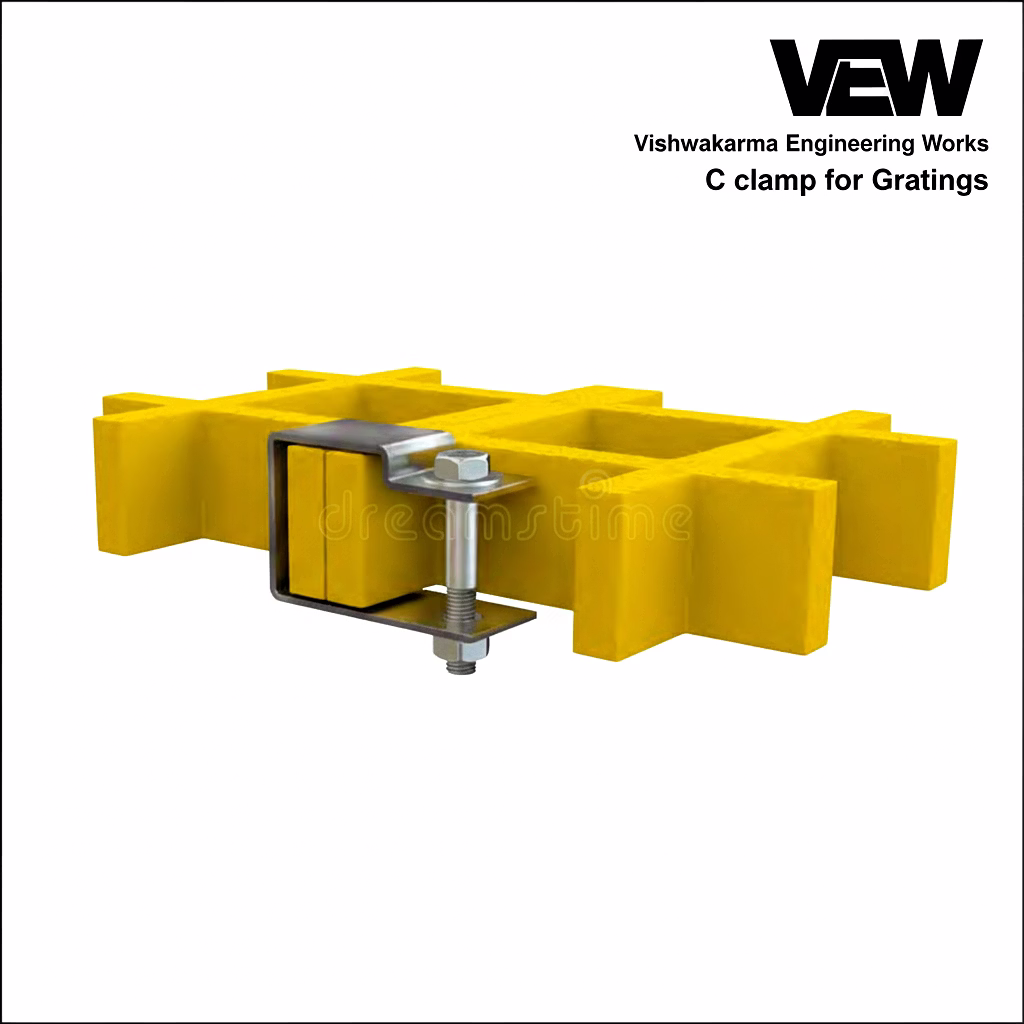

Alignment: Position the two grating panels so the load bars are parallel and adjacent.
Insertion: Hold the C-clip at a slight diagonal angle and slot it over the two adjacent load bars.
Positioning: Twist the clip until it sits horizontally, gripping the underside of both bars.
Securing: Insert the Allen cap bolt through the top and thread it into the base nut. Tighten using a standard Allen key until the panels are immobilized.
