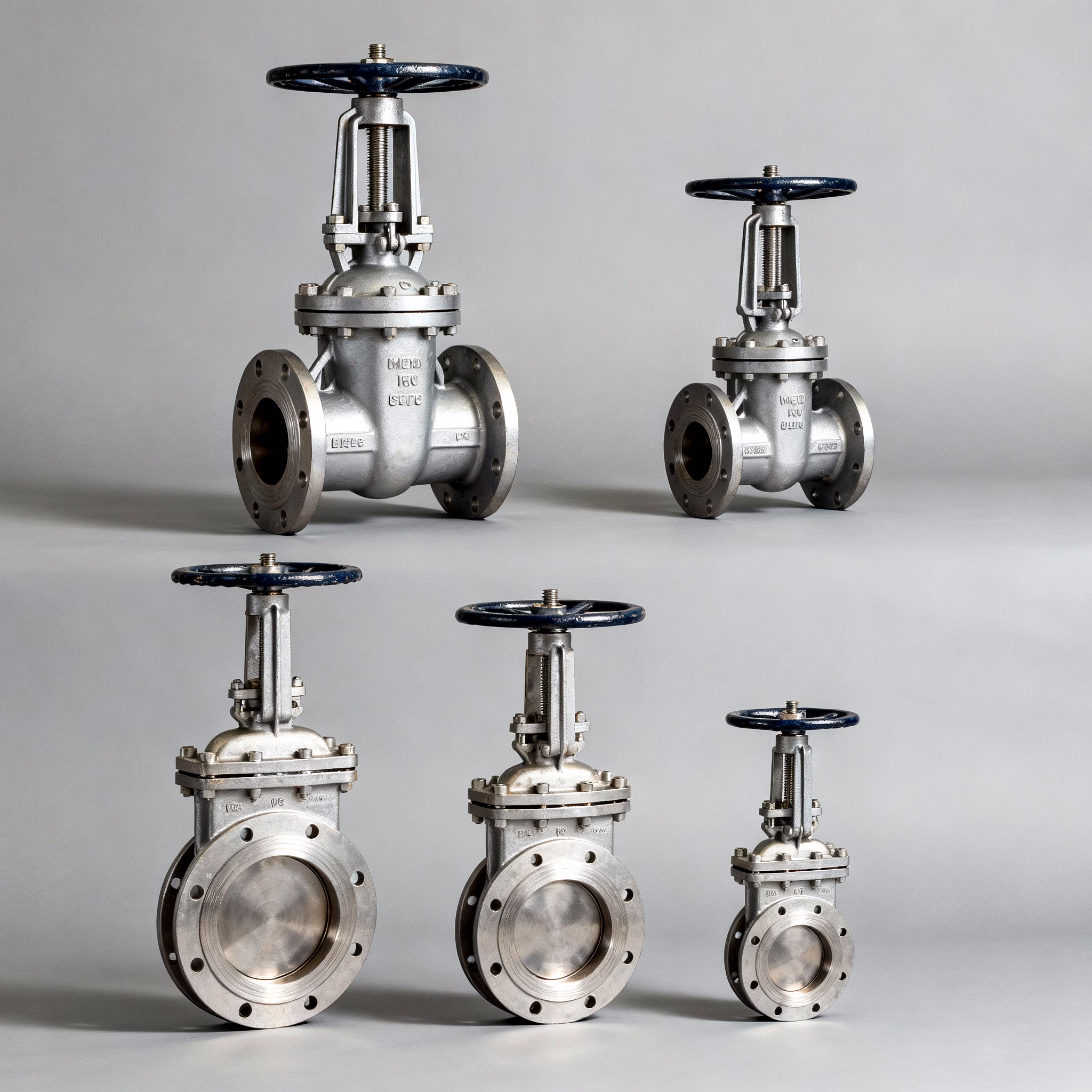

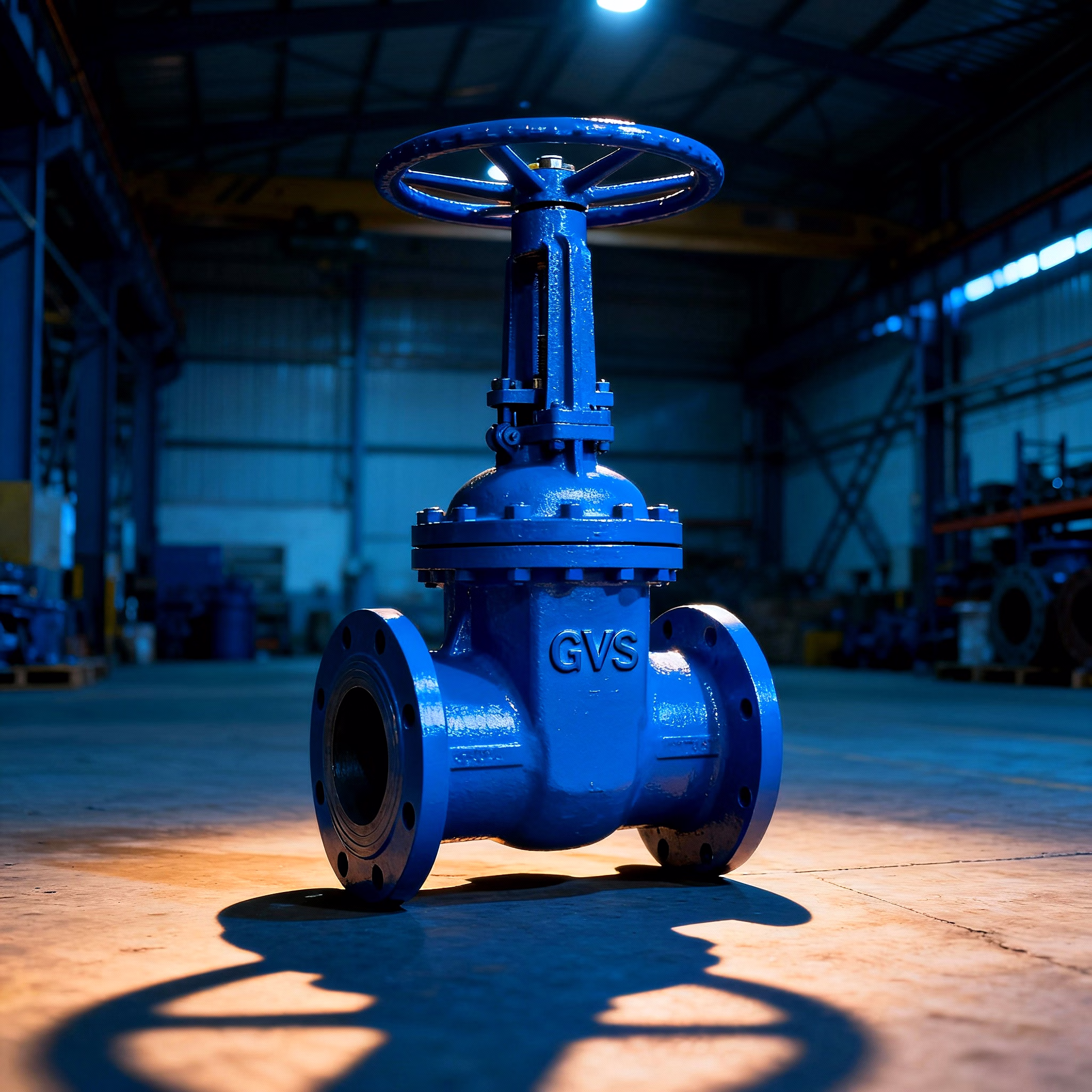

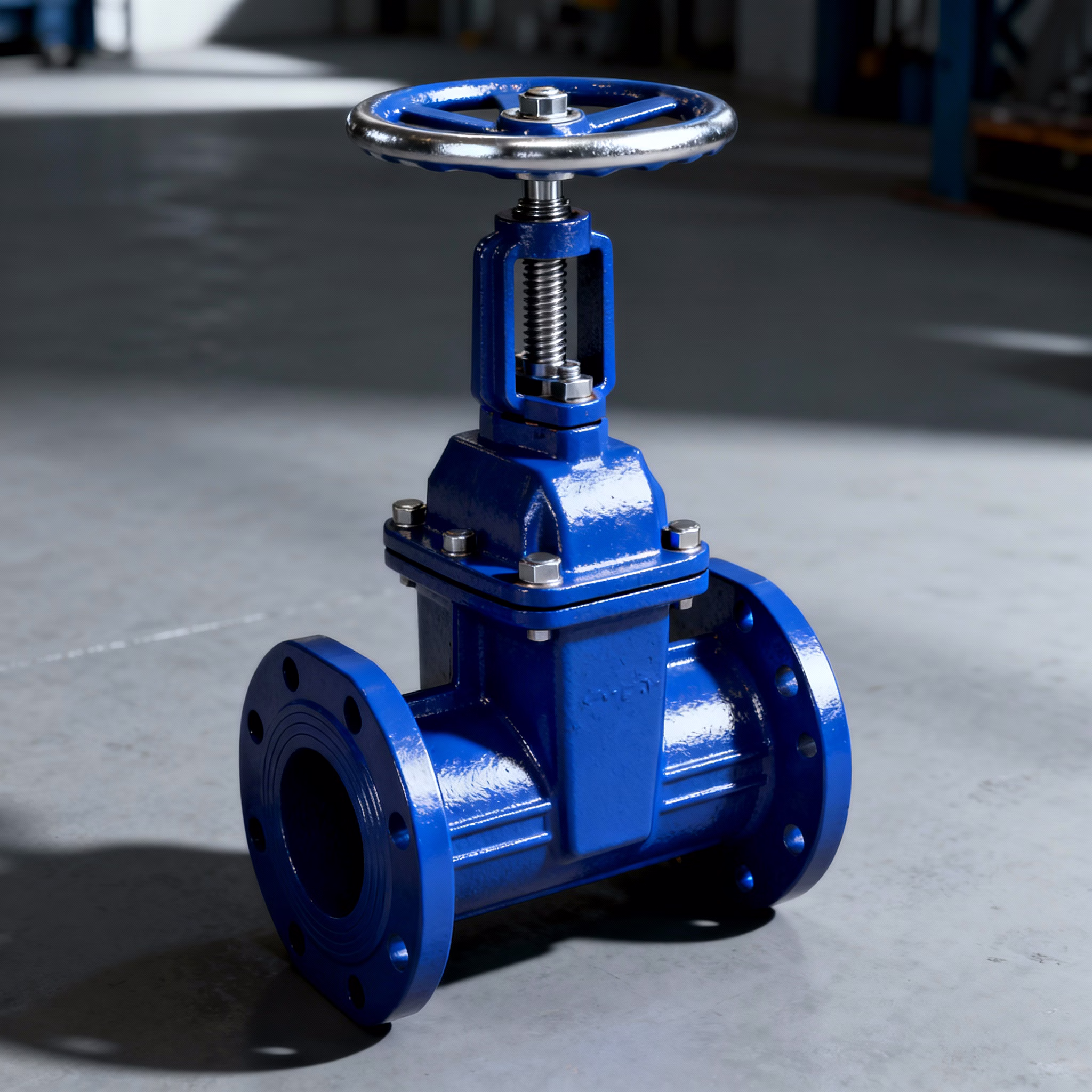

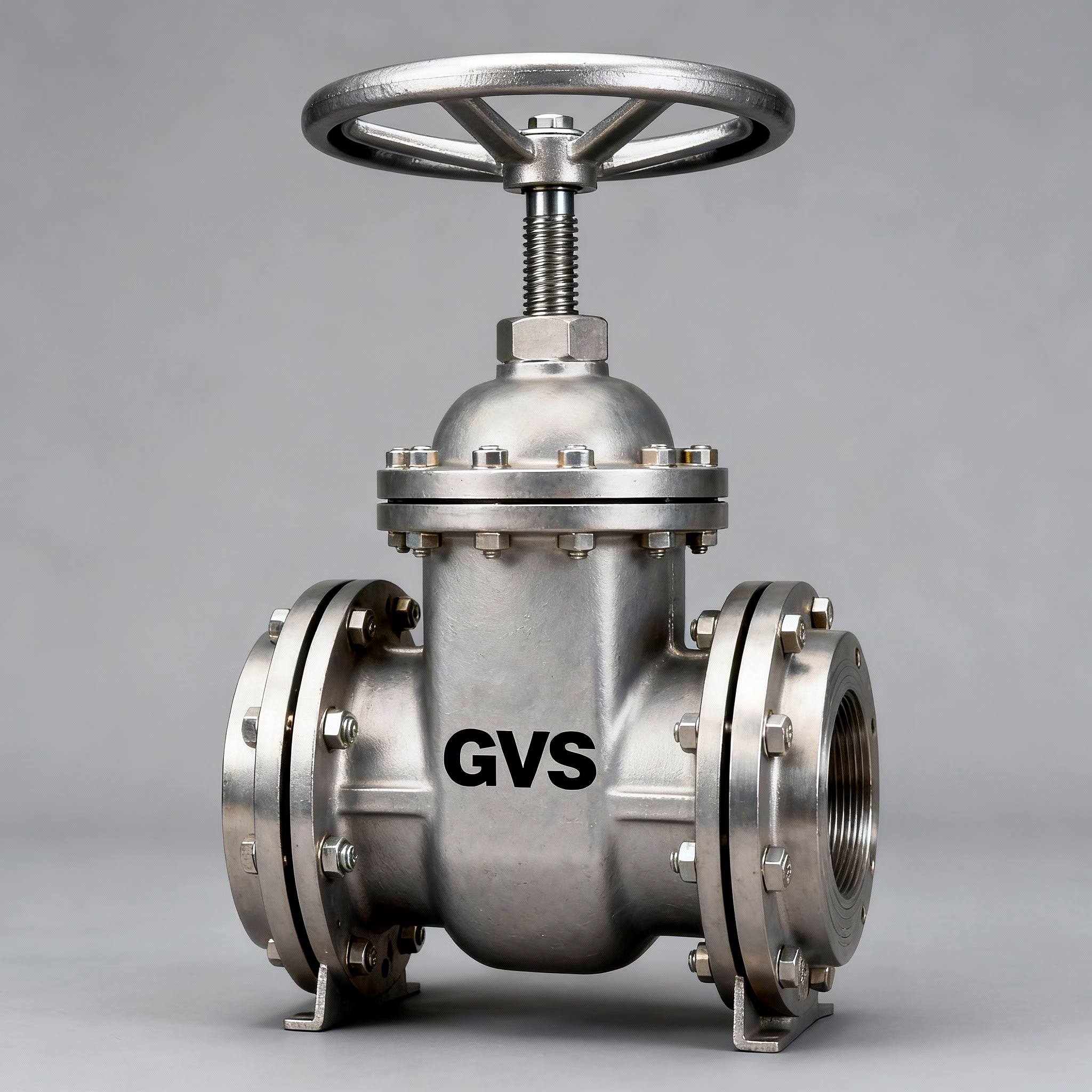

Our premium Gate Valve is expertly engineered for full isolation with minimal turbulence, making it an ideal solution for applications that demand high-integrity shut-off. Designed to ensure zero leakage in the closed position, this valve is widely used in critical industrial sectors such as oil and gas, petrochemicals, power plants, water treatment, and fertilizer manufacturing. Manufactured from high-quality materials including carbon steel (ASTM A216 WCB), stainless steel (grades 304 and 316), and specialty alloys, the valve ensures compatibility with diverse fluids ranging from water and steam to corrosive chemicals and oils. Available in sizes from ½ inch to 36 inches with pressure ratings from Class 150 up to Class 2500, the valve meets rigorous international standards like API 600, ASME B16.34, ASME B16.5, and API 598, making it reliable for high-pressure and high-temperature industrial usage. It features a choice of solid, flexible, or split wedge designs with either metal-seated or soft-seated configurations to optimize performance in various media and operational conditions. The valve is offered with flexible connection options including flanged, butt weld, socket weld, and threaded ends to seamlessly integrate into existing piping systems. Operated manually (handwheel), electrically, or pneumatically depending on size and specific application requirements, the valve’s wedge-shaped or parallel gate mechanism moves perpendicular to the flow to provide full bore flow with minimal resistance when open. This gate valve is engineered to comply with strict safety, quality, and performance standards, ensuring longevity and efficient operation in demanding industrial environments.
Key Features
| Features | Description |
|---|---|
| Valve Type | Gate Valve |
| Design Purpose | Full isolation and high-integrity shut-off with minimal turbulence |
| Materials | Carbon steel (ASTM A216 WCB), Stainless steel (304, 316), Specialty alloys |
| Connection Types | Flanged, butt weld, socket weld, threaded ends |
| Operating Mechanism | Manual (handwheel), electric, pneumatic operations |
| Size Range | ½ inch to 36 inches |
| Pressure Ratings | Class 150 to Class 2500 |
| Compliance Standards | API 600, ASME B16.34, ASME B16.5, API 598 |
| Seal Options | Metal-seated and soft-seated |
| Wedge Designs | Solid, flexible, split wedge; parallel slide and knife gate types |
| Applications | Oil, gas, water, steam, corrosive chemicals; high-pressure, high-temperature service |
| Attributes | Description |
|---|---|
| Body Material | Cast or forged carbon steel (ASTM A216 WCB), stainless steel 304/316, specialty alloys |
| Trim Materials | 13% Cr stainless steel, 304/316 stainless steel, hardfaced/stellite alloys |
| Pressure Class | Class 150 to Class 2500 |
| Temperature Range | -29°C to 425°C |
| End Connections | Flanged (ASME B16.5), butt weld, socket weld, threaded |
| Standards Compliance | API 600, ASME B16.10, ASME B16.5, API 598 |
| Sealing Type | Metal-seated and soft-seated |
| Operation Type | Manual handwheel, electric actuator, pneumatic actuator |
| Stem Type | Rising or non-rising stem options |
| Flow Characteristics | Full bore with minimal flow resistance when fully open |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Metal-seated gate valves are ideal for high-temperature and abrasive media offering superior durability and resistance to wear, while soft-seated valves provide tighter shut-off for less aggressive fluids but are limited in temperature and pressure capabilities.
Yes, the valve body and trim components can be fabricated from specialty alloys tailored to handle highly corrosive or demanding fluids as per client requirements.
For gate valves exceeding 12 inches, electric and pneumatic actuation are commonly offered to accommodate the increased torque requirements and automation needs.
The valve’s wedge-shaped or parallel gate design provides full bore flow with no flow obstruction when fully open, minimizing turbulence and pressure drop across the valve.
Yes, customers can select either rising or non-rising stem designs based on installation space constraints and operational preferences.
Country Of Origin: India
Key Features
Designed for full isolation and minimal turbulence, suitable for applications requiring a high-integrity shut-off.
Available in various materials including carbon steel, stainless steel, and specialty alloys for compatibility with a wide range of fluids.
Offered with multiple connection options, such as flanged, welded, or threaded ends, to match piping systems.
Operated manually, electrically, or pneumatically depending on size and application requirements.
Commonly used across industries like oil and gas, petrochemicals, power plants, water treatment, and fertilizer manufacturing.
Technical Specifications
Sizes commonly range from ½ inch up to 36 inches, with pressure ratings typically from Class 150 to Class 2500.
Meets international standards such as API 600, ASME B16.34, and BS 1414 for performance, safety, and quality.
Seal options include metal-seated and soft-seated designs for different media and service conditions.
Available in solid, flexible, or split wedge designs, as well as parallel slide or knife gate types for specialized functions.
Applications
Industrial liquids, water, steam, and corrosive chemicals
Suitable for both high-pressure and high-temperature service
Preferred for isolation rather than flow regulation, ensuring zero leakage in shut-off position
The body is typically manufactured from cast or forged steel, stainless steel, or specialty alloys to suit different media, including water, steam, oil, or corrosive chemicals. The valve operates using a wedge-shaped or parallel gate that moves perpendicular to the flow, offering full-bore passage with minimal flow restriction or turbulence when the valve is completely open.
Gate valves feature a rising or non-rising stem, and the stem can be operated manually (with a handwheel), electrically, or pneumatically, depending on the application. They are preferred for applications that require full shut-off rather than flow regulation.
Technical Details
Standard Compliance: Designed and tested as per API 600, ASME B16.10 (face-to-face), ASME B16.5 (flanged end), and API 598 (inspection and testing).
Pressure Classes: Commonly available from Class 150 to Class 2500 with temperature ranges of -29°C up to 425°C, suitable for industrial environments.
Body Material: Options include ASTM A216 WCB (carbon steel), stainless steel grades 304/316, as well as special alloys for higher corrosion resistance.
Trim Materials: Seats, discs (wedges), stems, and other internal parts are typically made of 13% Cr stainless steel, 304/316 stainless, or hardfaced/stellite alloys for superior durability and tight shut-off.
Sealing: Offers both metal-seated and soft-seated configurations for different service conditions.
Operating Medium: Handles oil, gas, water, steam, and a range of corrosive chemicals.
Connection End: Available with flange, butt weld, socket weld, and threaded ends for compatibility with various piping systems.
