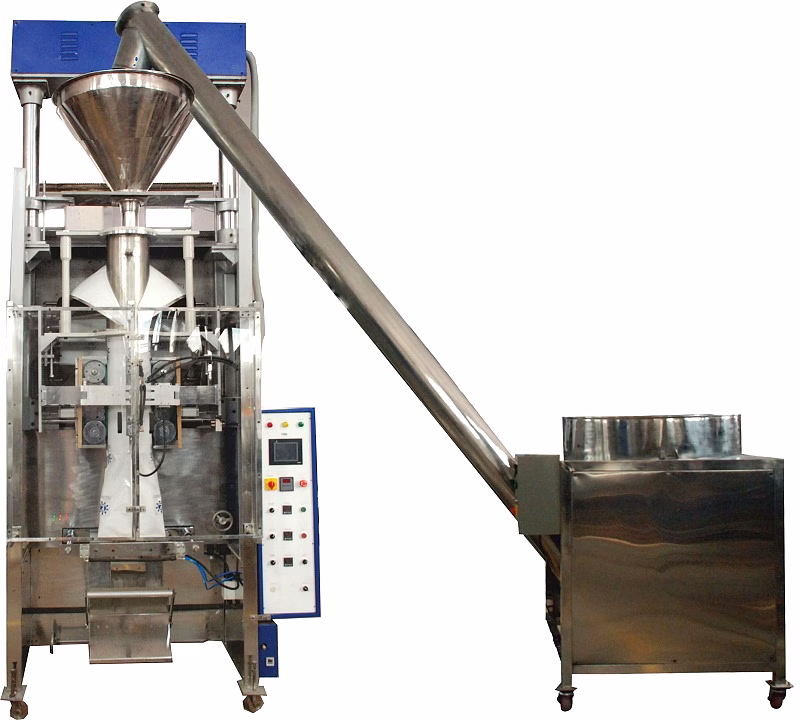

The Fully Automatic PLC Controlled Vertical Form-Fill-Seal (FFS) Machine with Collar Type design and Servo Motor Controlled Auger Filler is engineered specifically for high precision powder packing up to 10 kilograms. This automatic packing machine integrates advanced PLC control technology for seamless operation and enhanced production efficiency. The servo motor-driven auger filler ensures accurate volumetric filling of various powdered products, making it ideal for industries such as food processing, pharmaceuticals, chemicals, and fertilizers. The machine supports heat-sealable laminated film in roll form with a maximum roll width of 900 mm and can produce pouches up to 550 mm in length. Designed for industrial applications, this vertical FFS system runs on a robust 3-phase 440 VAC power supply with power consumption between 8-9 kW and requires compressed air at 4-5 cfm and 8 Kg/cm sq pressure. Optional features like batch coding for traceability, nitrogen flushing for product preservation, pouch gusseting unit for enhanced pouch design, outfeed conveyor for streamlined packaging handling, and screw feeder to augment material feed provide added flexibility and customization options to meet diverse production demands.
Key Features
| Features | Description |
|---|---|
| Control System | PLC controlled automatic operation |
| Filling Mechanism | Servo motor-controlled auger filler for precise powder filling |
| Filling Capacity | Up to 10 kilograms per pouch |
| Packaging Film | Heat sealable laminated film in roll form |
| Maximum Roll Width | 900 mm |
| Maximum Pouch Length | 550 mm |
| Electrical Requirement | 3 phase, 440 VAC +/- 10%, 8-9 kW |
| Compressed Air Requirement | 4-5 cfm @ 8 Kg/cm sq |
| Optional Attachments | Batch coding, Nitrogen flushing, Pouch gusseting unit, Outfeed conveyor, Screw feeder |
| Attributes | Description |
|---|---|
| Machine Type | Fully automatic vertical FFS collar type |
| Product Type | Powder items |
| Filling System Type | Servo motor-controlled auger filler |
| Maximum Filling Weight | 10 Kgs |
| Film Type | Heat sealable laminated film in roll form |
| Max Film Roll Width | 900 mm |
| Max Pouch Length | 550 mm |
| Power Supply | 3 phase, 440 VAC +/- 10% |
| Power Consumption | 8-9 kW |
| Compressed Air Pressure | 8 Kg/cm² |
| Compressed Air Volume | 4-5 cfm |
| Control Type | Programmable Logic Controller (PLC) |
| Optional Features | Batch coding, Nitrogen flushing, Pouch gusseting unit, Outfeed conveyor, Screw feeder |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The machine can fill powder items up to a maximum weight of 10 kilograms per pouch.
It is compatible with heat sealable laminated films supplied in roll form, with a maximum roll width of 900 mm.
Yes, nitrogen flushing is available as an optional attachment to help preserve packed powder products.
The machine operates with an advanced Programmable Logic Controller (PLC) system for precise and automated packing control.
Yes, batch coding can be integrated as an optional feature to enable traceability and product identification.
The machine requires a 3-phase 440 VAC power supply with 8-9 kW consumption and compressed air supply of 4-5 cfm at 8 Kg/cm² pressure.
Brand: elegant engineers
Country Of Origin: India
AUTOMATIC PLC CONTROLLED VERTICAL FFS (COLLAR TYPE) MACHINE WITH SERVO MOTOR CONTROLLED AUGER FILLER FOR POWDER ITEMS.
AUTOMATIC PLC CONTROLLED VERTICAL FFS (COLLAR TYPE) MACHINE WITH SERVO MOTOR CONTROLLED AUGER FILLER FOR POWDER ITEMS
Machine - Automatic packing machine to pack Powder
Filling range - Upto 10 Kgs.
Filling System - Servo motor-controlled Auger filler
Packaging film - Heat sealable laminated film in roll form
Maximum roll width - 900 mm
Maximum pouch length - 550 mm
Electrical requirement - 3 phase, 440 VAC +/- 10%, 8-9 kW
Compressed Air required - 4-5 cfm @ 8 Kg/cm sq
Optional Attachments - Batch coding, Nitrogen flushing, Pouch gusseting unit, Outfeed conveyor, Screw Feeder.
