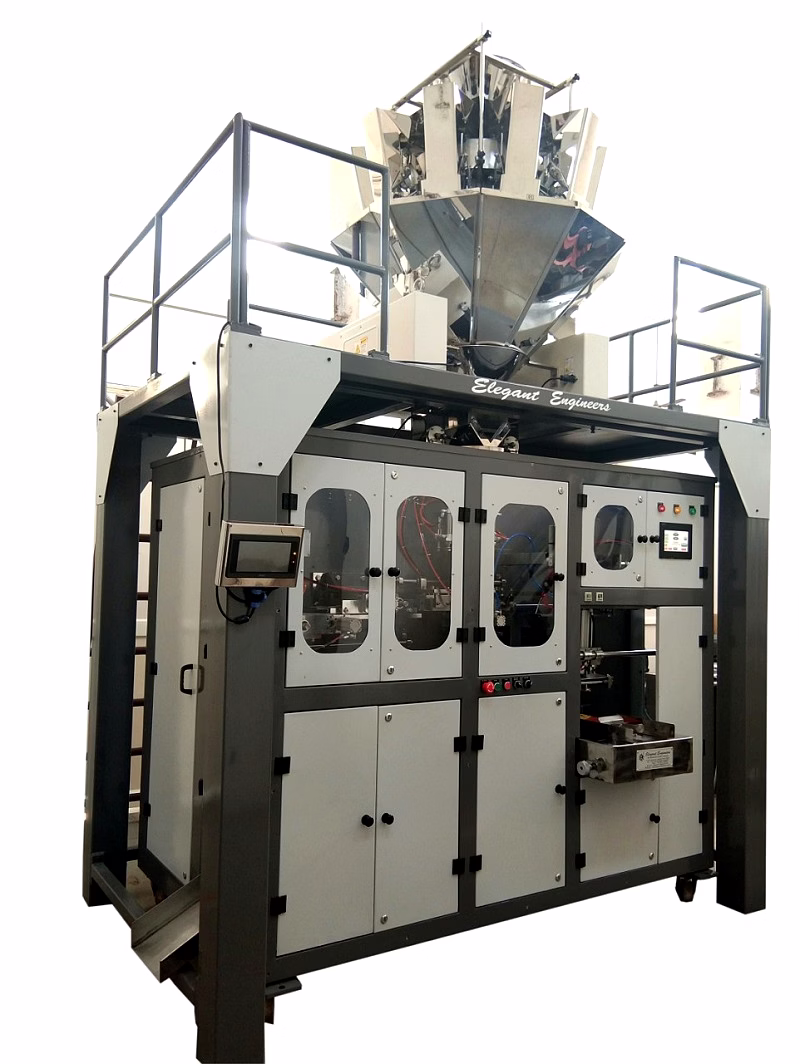

The Automatic Linear Pick, Fill and Seal Machine (Model No. PFS-40+JW-14) is engineered specifically for high-efficiency packaging of free-flow granules into preformed pouches. This advanced linear machine is integrated with a multihead combination weigh filler facilitating precise and rapid filling, ideal for varying pouch sizes and types. Designed to handle all kinds of laminated preformed pouches such as pillow type, side seal, bottom gusset, pouches with D-cut, and pouches with rope, it optimizes flexibility for multiple packaging needs. The vacuum-driven pouch picking, transferring, and opening mechanism ensures smooth, contamination-free operation. Suitable for pouch dimensions ranging from 300 mm to 500 mm in length and 240 mm to 400 mm in width, it caters to a filling range of 500 grams up to 5 kilograms, accommodating different product and pouch requirements. Operating at a power supply of 440 VAC, single-phase with a power consumption of 5 kW, this machine is designed for industrial use, promising accuracy, reliability, and reduced labor cost in packaging free-flow granular products.
Key Features
| Features | Description |
|---|---|
| Model Number | PFS-40+JW-14 |
| Packaging Type Compatibility | All laminated preformed pouches including pillow, side seal, bottom gusset, D-cut, and rope pouches |
| Pouch Handling Mechanism | Vacuum-based pouch picking, transferring, and opening |
| Pouch Size Range | Length: 300 mm to 500 mm; Width: 240 mm to 400 mm |
| Filling Range | 500 grams to 5 kilograms |
| Material Suitable | Free flow granules |
| Power Requirement | 440 VAC, Single phase, 5 kW |
| Weighing System | Multihead combination weigh filler for precise filling |
| Automation Level | Fully automatic linear pick, fill, and seal |
| Pouch Types Supported | Pillow type, side seal type, bottom gusset, pouches with D-cut, pouches with rope handles |
| Attributes | Description |
|---|---|
| Machine Type | Automatic Linear Pick, Fill and Seal Machine |
| Model | PFS-40+JW-14 |
| Material Packed | Free flow granules |
| Pouch Types | Laminated, preformed pillow, side seal, bottom gusset, with D-cut, with rope |
| Pouch Length Capacity | 300 to 500 mm |
| Pouch Width Capacity | 240 to 400 mm |
| Filling Weight Range | 500 g to 5 kg |
| Power Supply | 440 VAC, Single phase |
| Power Consumption | 5 kW |
| Weigh Filler Type | Multihead combination |
| Automation | Fully automatic linear operation |
| Operation Features | Vacuum pouch handling, precise weighing and sealing |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the machine is compatible with all types of laminated preformed pouches including pillow type, side seal type, and bottom gusset pouches.
The machine can accommodate pouches with a maximum length of 500 mm and a maximum width of 400 mm.
No, this model is designed specifically for free-flow granules; materials that do not flow freely may not be compatible.
The machine uses a vacuum system for pouch picking, transferring, and opening to ensure precise and contamination-free operation.
No, the filling range is limited from 500 grams up to 5 kilograms according to the pouch specification.
The machine requires a 440 VAC, single-phase power supply with 5 kW consumption.
Brand: elegant engineers
Country Of Origin: India
AUTOMATIC LINEAR PICK, FILL AND SEAL MACHINE WITH MULTIHEAD COMBINATION WEIGH FILLER FOR PREFORMED POUCHES (MODEL NO. – PFS-40+JW-14)
AUTOMATIC LINEAR PICK, FILL AND SEAL MACHINE WITH MULTIHEAD COMBINATION WEIGH FILLER FOR PREFORMED POUCHES (MODEL NO. – PFS-40+JW-14)
Material to be packed - Free flow Granules.
Pouch Type - All types of laminated preformed pouches Pillow type, Side seal type, Bottom Gusset, with D-cut, with Rope etc.
Pouch picking, transferring and opening by vacuum.
Pouch length - 300 mm (Min.) x 500 mm (Max).
Pouch width - 240 mm (Min.) x 400 mm (Max.).
Filling range - 500 Gms. to 05 Kgs. (As per pouch specification)
Power Required - 440 VAC, Single phase, 5 kW.
