The FISCHER FBN II 10/10 (10X85) is a high-performance steel bolt anchor designed specifically for cost-effective, versatile fixings in non-cracked concrete applications. Its standardized anchorage depth ensures that maximum load-bearing capacities are achieved, allowing for fewer fixing points and smaller anchor plates, thereby optimizing material use and installation efficiency. The anchor's reduced anchorage depth lowers the required drill hole depth, minimizing installation time and enhancing flexibility in various construction scenarios. Equipped with a protective drive-in pin, the thread is safeguarded from damage, which guarantees faster installation and dismantling of attachments. The FBN II’s long thread and dual anchorage depths provide adaptability for different fixing methods including stand-off installation, pre-positioned, and push-through applications. Its zinc-plated steel construction ensures durability and corrosion resistance, making it ideal for internal applications like securing railings, cable trays, and consoles.
Key Features
| Features | Description |
|---|---|
| Anchorage Depth | Standardized to maximize load-bearing capacity while reducing drill hole depth |
| Thread Protection | Drive-in pin protects thread from damage for faster installation and dismantling |
| Material | Zinc-plated steel for corrosion resistance and durability in internal environments |
| Installation Methods | Suitable for stand-off, pre-positioned, and push-through installations |
| Load-Bearing Capacity | High load capacity permitting fewer fixing points and smaller anchor plates |
| Flexibility | Two anchorage depths and long thread provide versatile application options |
| Application Areas | Ideal for fixing railings, cable trays, consoles in non-cracked concrete |
| Time Efficiency | Reduced drill hole depth minimizes installation time |
| Attributes | Description |
|---|---|
| Product Model | FISCHER FBN II 10/10 (10X85) |
| Anchor Type | Steel bolt anchor |
| Size | 10 mm diameter x 85 mm length |
| Material | Zinc-plated steel |
| Suitable Base Material | Non-cracked concrete |
| Anchorage Depth Options | Two anchorage depths for flexible applications |
| Installation Types | Stand-off, pre-positioned, push-through |
| Protection Feature | Drive-in pin to protect thread |
| Corrosion Resistance | Zinc plating for internal use |
| Applications | Fixing railings, cable trays, consoles |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
No, this model is specifically designed for use in non-cracked concrete to ensure optimal load capacity and safety.
No, the drive-in pin protects the thread from damage during installation without compromising the anchor's load-bearing performance.
This zinc-plated steel anchor is primarily intended for internal applications; it may not offer sufficient corrosion resistance for exterior or highly humid/wet environments.

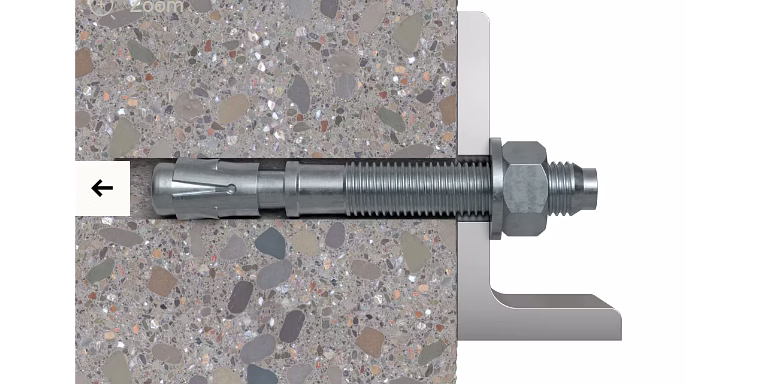

It supports stand-off installation, pre-positioned installation, and push-through installation, offering great flexibility on-site.
Reduced anchorage depth minimizes the drill hole depth, which cuts down on installation time and effort while maintaining load capacity.
Country Of Origin: Germany
The standard anchorage depth achieves the maximum load-bearing capacities. Thus fewer fixing points and smaller anchor plates are required.
The reduced anchorage depth reduces the drill hole depth. This minimises the amount of time needed for installation whilst increasing flexibility.
The drive-in pin protects the thread from damage, and thus ensures a faster installation and dismantling of the attachment.

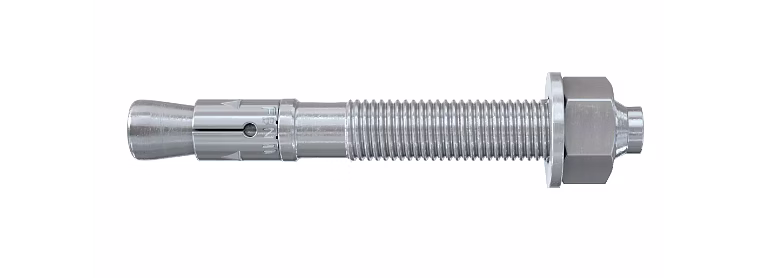

The fischer bolt anchor FBN II is a steel anchor for cost-effective fixings in non-cracked concrete. Due to the long thread and the two anchorage depths, the fischer bolt anchor FBN II can be used in a particularly flexible manner. The bolt anchor is also suitable for stand-off installation as well as pre-positioned and in push-through installation. The zinc-plated steel version of the bolt anchor is suitable for fixing railings, cable trays, and consoles in internal areas.
