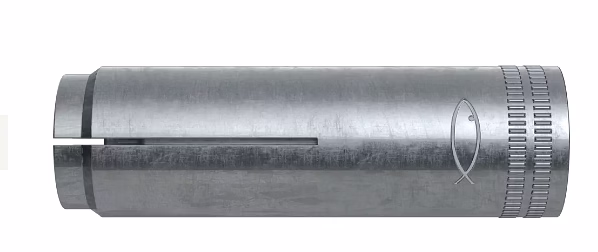

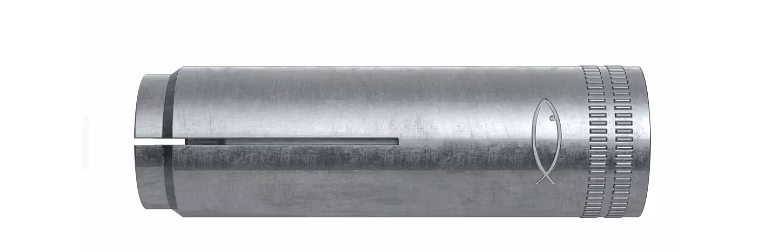

The FISCHER EA M10 N Bullet Anchor is a high-quality internal thread hammerset anchor designed for reliable and cost-effective fastening in non-structural applications. Manufactured from durable zinc-plated and stainless steel materials, this metric internal thread anchor supports the use of standard screws or threaded rods for versatile adaptation to various installation requirements. Its simple hammerset installation method enables efficient mounting with minimal embedment depth, significantly reducing installation time and effort. Equipped with the EA-ST hand setting tool, installation is further streamlined, allowing for quick and easy sleeve expansion and secure bracing against the drill hole wall. Ideal for multiple fixations, the EA N Bullet Anchor ensures stable and direction-controlled screwing without requiring torque on the screw, making it perfect for use in applications where approved anchorage is not mandatory. This anchor is especially suited for non-structural systems where reliability, speed, and adaptability are key.
Key Features
| Features | Description |
|---|---|
| Installation Method | Simple hammerset installation with low embedment depth |
| Material | Zinc-plated and stainless steel |
| Thread Type | Metric internal thread compatible with standard screws and threaded rods |
| Setting Tool | Hand setting tool EA-ST for fast and reliable installation |
| Application | Multiple fixation of non-structural systems not requiring approved anchorage |
| Expansion Mechanism | Sleeve expanded and braced against drill hole wall via internal pin driving |
| Installation Detail | Mounted flush with base material, ensuring clean and secure fixing |
| Torque Requirement | No torque should be applied to the screw for correct expansion |
| Cost Efficiency | Fast hammerset installation and low embedment depth reduce overall costs |
| Durability | Corrosion-resistant zinc-plated and stainless steel construction |
| Attributes | Description |
|---|---|
| Anchor Size | M10 |
| Anchor Type | Bullet Anchor with internal thread |
| Material | Zinc-plated steel and stainless steel |
| Setting Tool Compatible | EA-ST Hand Setting Tool |
| Embedment Depth | Low embedment depth for efficient installation |
| Thread Compatibility | Standard screws and threaded rods |
| Installation Method | Hammer flush to base material |
| Expansion Type | Directional sleeve expansion by internal pin |
| Application | Non-structural multiple fixations |
| Corrosion Resistance | High, due to zinc plating and stainless steel components |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
No, the FISCHER EA M10 N Bullet Anchor is specifically designed for non-structural multiple fixations and does not have approved anchorage certifications for structural load-bearing use.
No, torque should not be applied to the screw during installation to ensure correct sleeve expansion and effective anchoring.
The anchor features a metric internal thread allowing the use of standard screws or threaded rods, providing flexibility in fastening options.
The EA-ST setting tool facilitates fast installation by driving the internal pin to expand and brace the sleeve securely against the drill hole wall.
While primarily intended for concrete or solid base materials, installation effectiveness depends on the base material's integrity and suitability for hammerset anchors.
Country Of Origin: Germany
Advantages
Simple hammerset installation
The metric internal thread allows for the use of standard screws or threaded rods for ideal adaptation in line with the intended use.
The hand setting tool EA-ST facilitates fast installation.
The fischer hammerset anchor EA N is an internal thread anchor made from zinc-plated and stainless steel. The hammerset anchor is ideal for the multiple fixation of non-structural systems that do not require approved anchorage. The assembly of the internal thread anchor is extremely cost-effective thanks to the low embedment depth, fast hammerset installation, and direction-controlled screwing process. The EA N is mounted with the hammer flush to the base material. With the setting tool EA-ST, the sleeve is expanded and braced against the drill hole wall through the driving in of the internal pin. No torque should be applied to the screw to enable correct expansion.
