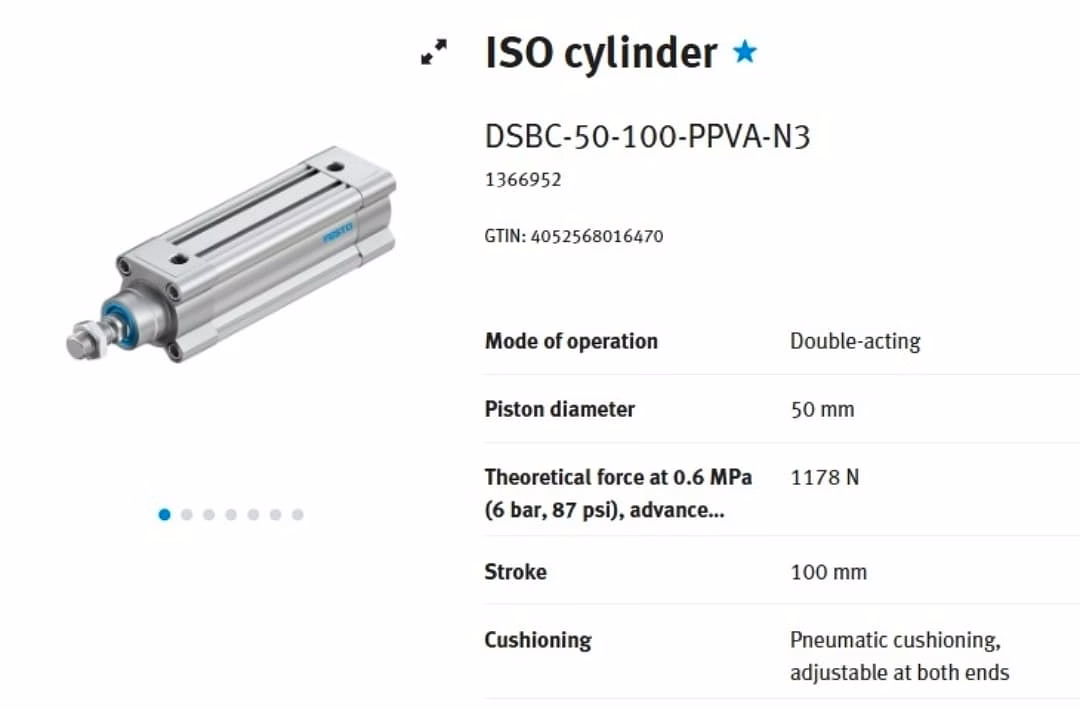

The FESTO ISO Cylinder DSBC-50-100-PPVA-N3 is a high-quality pneumatic ISO cylinder designed for industrial automation and machinery applications requiring precise linear motion control. This double-acting cylinder features a 50 mm bore size and a 100 mm stroke length, making it ideal for medium-duty applications that demand reliable and efficient actuation performance. Constructed with robust materials and engineered for extended operational life, the DSBC series adheres to ISO standards, ensuring compatibility with various pneumatic systems and easy integration. The cylinder is equipped with PPVA cushioning for controlled deceleration at the end positions, minimizing wear and noise, enhancing operational smoothness and machine safety. The N3 suffix indicates specific mounting or configuration details conforming to FESTO standards. Overall, this cylinder offers excellent performance, durability, and versatility for automation professionals optimizing pneumatic motion in industrial environments.
Key Features
| Features | Description |
|---|---|
| Bore Size | 50 mm |
| Stroke Length | 100 mm |
| Cylinder Type | Double-acting ISO cylinder |
| Cushioning Type | PPVA cushioning for smooth end position damping |
| Mounting Configuration | N3 |
| Compliance | ISO standard cylinder design |
| Application | Industrial automation, machinery linear actuation |
| Material | Robust metallic construction for durability |
| Operating Principle | Pneumatic actuation with controlled motion |
| Manufacturer | FESTO |
| Attributes | Description |
|---|---|
| Manufacturer Part Number | DSBC-50-100-PPVA-N3 |
| Bore Diameter | 50 mm |
| Stroke | 100 mm |
| Cushioning | PPVA type adjustable cushioning |
| Operating Pressure Range | Typically 0.1 to 1.0 MPa (consult datasheet for exact range) |
| Cylinder Type | Double-acting ISO cylinder |
| Mounting Style | N3 mounting |
| Operating Temperature Range | -20°C to +80°C |
| Piston Rod Material | Chromium-plated steel |
| Seals | High-quality seals for leak prevention |
| Weight | Approximate weight varies, consult FESTO datasheet |
| Standard Compliance | ISO 6432 |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The PPVA cushioning provides adjustable pneumatic damping at the cylinder's end positions, reducing impact noise and mechanical shock, which extends the cylinder's operational life and enhances machine safety.
Yes, this DSBC series cylinder complies with ISO 6432 standards, ensuring compatibility with other ISO pneumatic fittings and components.
The cylinder generally operates effectively within an operating pressure range of 0.1 to 1.0 MPa, but specific pressures should be confirmed as per FESTO technical datasheets.
The DSBC-50-100 model specifically offers a 100 mm stroke; however, FESTO provides similar cylinders with varied stroke lengths if longer strokes are required.
The N3 mounting option designates specific mounting interfaces and accessories tailored by FESTO for secure and precise cylinder installation in various automation setups.
