The EtchON Portable Dot Pin Marking Machine PC Based (Domestic Series) is an advanced industrial marking solution designed for precision and versatility. Tailored for heavy-duty industrial applications, this machine offers a 140x50 mm working area that can be customized to meet specific customer needs. Ideal for marking on metals and non-metals alike, it excels in chassis marking, engine number marking, battery marking, and more. Equipped with a portable PC-based controller and a marking head featuring E-Magnets, the machine securely holds workpieces for accurate marking. It supports both line and dot engraving using multiple fonts and is capable of marking on flat as well as curved surfaces up to a 10° arc. The EtchON machine can produce a variety of markings, including logos, alphanumeric characters, dates, serial numbers, and graphical data from PLT, SLG, and DWG files compatible with AutoCAD and CorelDraw. Its modular aluminium casing ensures efficient heat dissipation, while the marking head incorporates genuine FESTO and SMC components for enhanced durability and performance. The IP65-rated oil and dust resistant buttons and auto-lubrication facility guarantee long-term reliable usage. Data cables feature steel connectors within a conduit to prevent oil and dust intrusion, making this dot pin marking machine a robust and highly adaptable tool for industrial marking requirements.
Key Features
| Features | Description |
|---|---|
| Working Area | 140 x 50 mm, customizable as per customer requirement |
| Portability | Portable machine suitable for heavy-duty use |
| Marking Methods | Supports Line and Dot engraving |
| Surface Compatibility | Marks on flat and curved surfaces up to 10° arc |
| Marking Types | Supports logos, alphanumeric characters, dates, serial numbers, graphs |
| File Format Support | Compatible with PLT, SLG, DWG formats from AutoCAD and CorelDraw |
| Marking Orientations | Linear, angular, radial, inverted, and mirror marking supported |
| Controller Type | PC-based portable controller |
| Marking Head Features | Equipped with E-Magnets for workpiece holding, genuine FESTO and SMC components |
| Build Material | Modular Aluminium casing for heat dissipation |
| Durability Features | IP65 rated oil and dust resistant buttons with auto-lubrication |
| Data Cable | Steel connectors with conduit protection against oil and dust |
| Attributes | Description |
|---|---|
| Model | DPM305D Domestic Series |
| Working Area Dimension | 140 mm x 50 mm |
| Marking Head | Equipped with E-Magnets for workpiece fixation |
| Marking Types | Line and Dot engraving |
| Supported Marking Locations | Flat and curved surfaces up to 10° arc |
| File Formats Supported | PLT, SLG, DWG |
| Material Compatibility | Metal and non-metal materials |
| Marking Content | Logos, alphanumeric characters, dates, serial numbers, graphs |
| Marking Orientation | Linear, angular, radial, inverted, mirror |
| Construction Material | Modular Aluminium casing |
| Component Brands | FESTO and SMC components in marking head |
| Button Protection Rating | IP65 - Oil and dust resistant |
| Additional Features | Auto lubrication facility |
| Controller Type | PC-based portable controller |
| Data Cable Specification | Steel connector with conduit for oil and dust resistance |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the EtchON DPM305D supports marking on curved surfaces up to a 10° arc, allowing flexible marking on slightly curved components.
Yes, the marking head is equipped with E-Magnets designed to firmly hold heavy workpieces during marking, ensuring precision and stability.
The machine supports importing graphical designs in PLT, SLG, and DWG formats compatible with AutoCAD and CorelDraw for detailed engraving.
Yes, the EtchON DPM305D supports linear, angular, radial, inverted, and mirror marking orientations to meet diverse marking requirements.
The machine features an IP65-rated oil and dust resistant button interface, auto-lubrication for the marking head, and a modular aluminium casing for heat dissipation, enhancing durability.
• Industrial marking and engraving are rapidly growing industry in the world. Particularly because there is virtually no limit to the number of materials that can be marked or engraved whether you are using metal or non-metal.

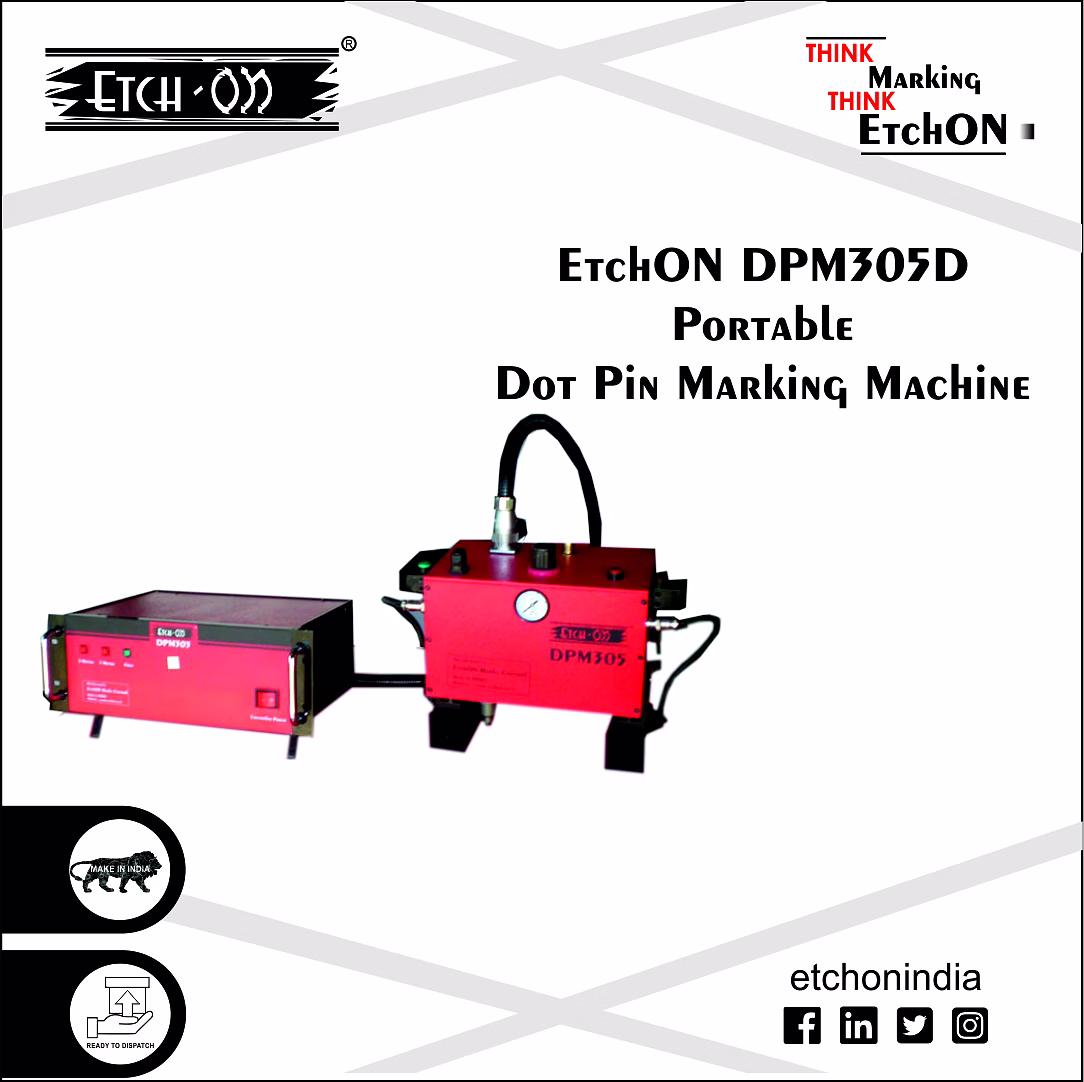

• EtchON DPM305D, is a Domestic series PC Based Portable Dot Pin marking machine with 140*50 mm working area which can be customised as per the customer requirement.
• This is a Portable machine which is suitable for heavy jobs.
• This machine is most widely used in chassis marking, engine number marking, battery marking etc.
• This machine controller is equipped with Portable PC Based and marking head is equipped with E-Magnets which is used to hold the work piece.
• This machine supports LINE and DOT engraving also supported by multiple fonts and suitable on flat as well as curved surface upto 10° arc marking.
• Marking contains all kinds of logos, characters, alphanumeric, dates, numbers, serial no, graph etc
• Supports linear, angular, radial, inverted and mirror marking.
• Supports. PLT, .SLG, .DWG format graph from AutoCAD or Corel Draw.
• This machine is made from modular type Aluminium casing which is attractive in design and stands for fast heat liberation.
• Marking Head is made from Genuine components like FESTO and SMC whereas buttons used are stands to IP65 norms which is oil and dust resistant with Auto Lubrication Facility.
• Data cable is made from Steel Connector with conduit which is also free from oil and dust.
