The Eaton PLSM-C63 AC Miniature Circuit Breaker (MCB) is a high-performance electrical protection device designed for industrial and commercial electrical installations. Featuring a rated current of 63 Amps with a single pole configuration and Curve C tripping characteristic, this MCB ensures reliable overload and short circuit protection for circuits with moderate inductive loads such as motor circuits and commercial lighting. Engineered to operate effectively under rated voltages of 230/415 V AC and 48 V DC, the Eaton PLSM-C63 offers a rated breaking capacity of 10kA in compliance with the IEC/EN 60898 standard, capable of safely interrupting high fault currents to protect wiring and equipment. This circuit breaker incorporates low let-through energy technology, minimizing damage caused by fault currents thereby enhancing equipment safety and longevity. It offers flexible bi-connect options for load or line installation, ensuring versatile application for various electrical systems. Built for durability, the PLSM-C63 withstands up to 20,000 mechanical operations, making it suitable for demanding electrical environments. Additionally, a full range of accessories including shunt trips, undervoltage releases, and auxiliary contacts are available for enhanced control and monitoring capabilities. Ideal for electrical contractors, panel builders, and industrial facility maintenance teams, the Eaton PLSM-C63 AC MCB is a dependable solution for circuit protection needs in commercial and industrial sectors.
Key Features
| Features | Description |
|---|---|
| Rated Current | 63 Amps |
| Pole Configuration | 1 Pole |
| Tripping Characteristic | Curve C |
| Rated Voltage AC | 230/415 V |
| Rated Voltage DC | 48 V (per pole) |
| Rated Breaking Capacity | 10 kA according to IEC/EN 60898 |
| Let-through Energy | Low Let-through Energy for minimized fault impact |
| Bi-Connect Option | Load or line connection capabilities |
| Mechanical Endurance | 20,000 operations |
| Accessory Compatibility | Supports shunt trips, undervoltage releases, auxiliary contacts |
| Attributes | Description |
|---|---|
| Product Model | PLSM-C63 |
| Brand | Eaton |
| Type | Miniature Circuit Breaker |
| Current Rating | 0.5 A to 63 A |
| Pole Type | Single Pole |
| Rated Voltage AC | 230/415 V |
| Rated Voltage DC | 48 V (per pole) |
| Breaking Capacity | 10 kA |
| Standard Compliance | IEC/EN 60898 |
| Tripping Curve | Curve C |
| Mechanical Endurance | 20,000 operations |
| Accessories Supported | Shunt trip, undervoltage release, auxiliary contacts |
| Connection Type | Bi-Connect (load or line) |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the Eaton PLSM-C63 is rated for use in AC systems up to 230/415 V and DC systems up to 48 V per pole, making it versatile for various electrical applications.
Curve C indicates the MCB trips at 5 to 10 times its rated current, making it suitable for circuits with moderate inrush currents such as motors and lighting loads to prevent nuisance trips.
Accessories like shunt trips, undervoltage releases, and auxiliary contacts can be integrated with the PLSM-C63 to provide remote tripping, power loss indication, and status signaling.
The PLSM-C63 MCB is designed to withstand up to 20,000 mechanical operations, ensuring long-term reliability under frequent switching conditions.
Yes, this MCB is compliant with IEC/EN 60898 standards, which align with Indian electrical safety regulations, making it safe and legal for use in Indian industrial and commercial electrical installations.
Country Of Origin: India

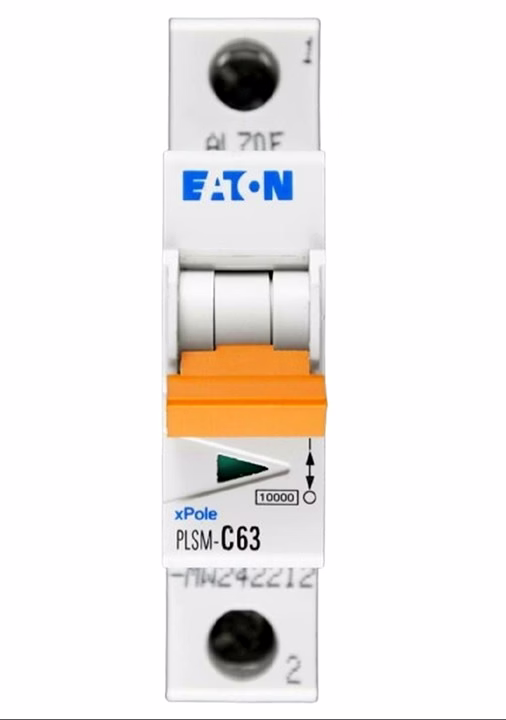

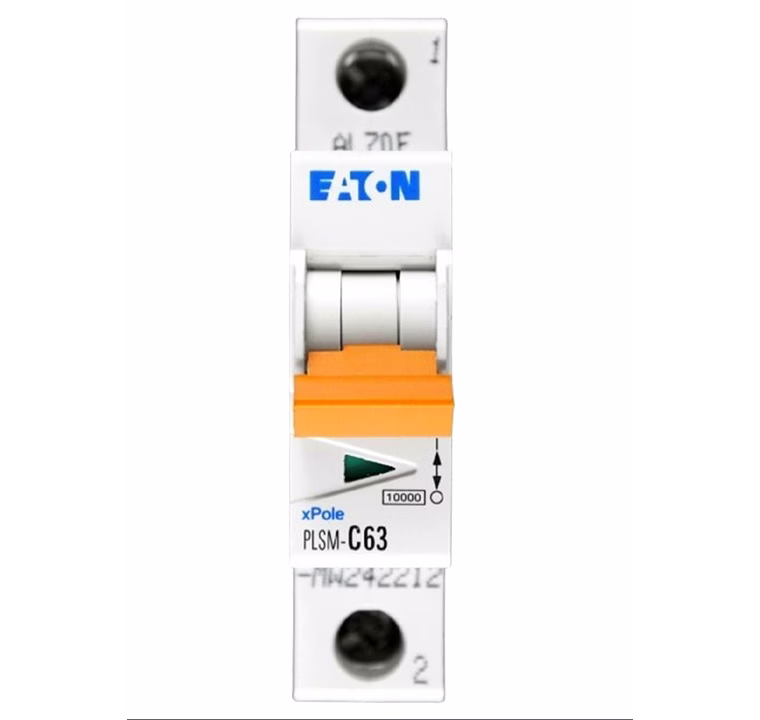

Eaton PLSM-C63 Miniature circuit breaker 63Amp, 1pole Curve C.
Specifications-
Rated current: 0.5 A to 63 A
Rated voltage AC: 230/415V, DC: 48V (per pole)
Rated breaking capacity: 10kA acc. to IEC/EN 60898 Tripping Characteristics B, C, D
Low let-through energy
Bi connect optionally on load or line
Endurance: 20,000 operations
Full range of accessories: shunt, UV, auxiliary
