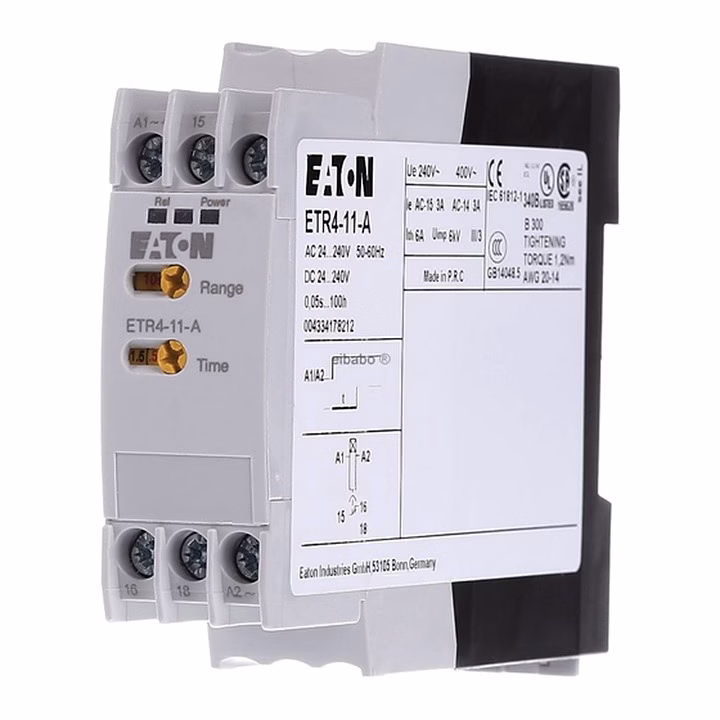

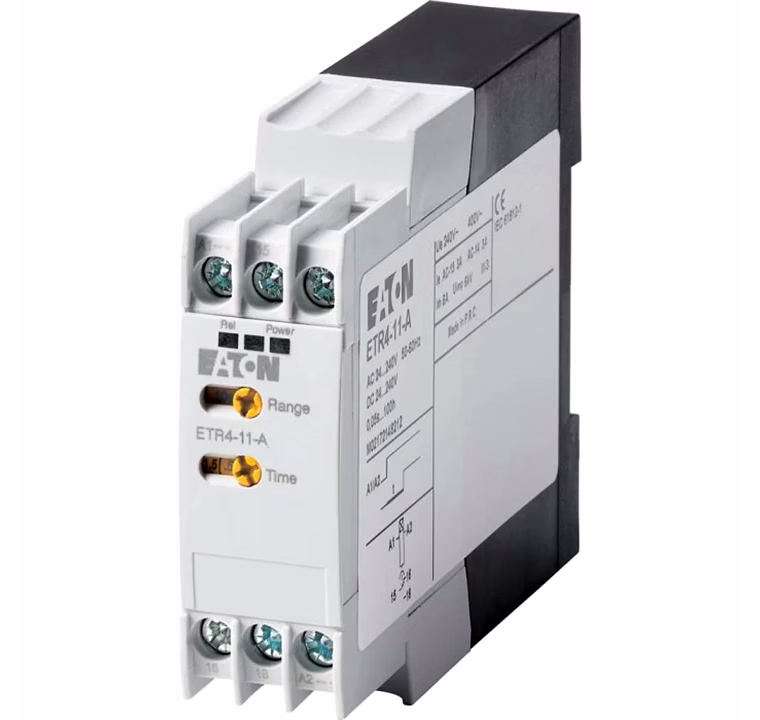

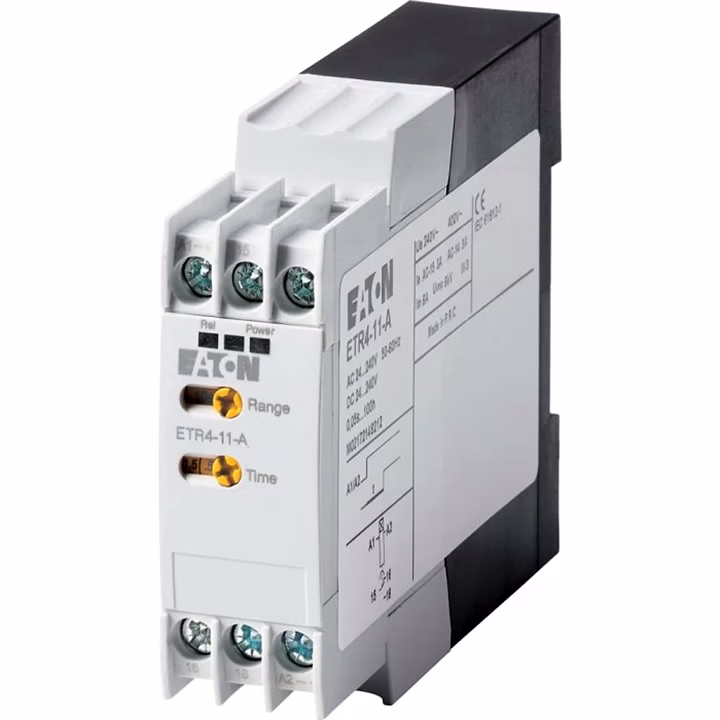

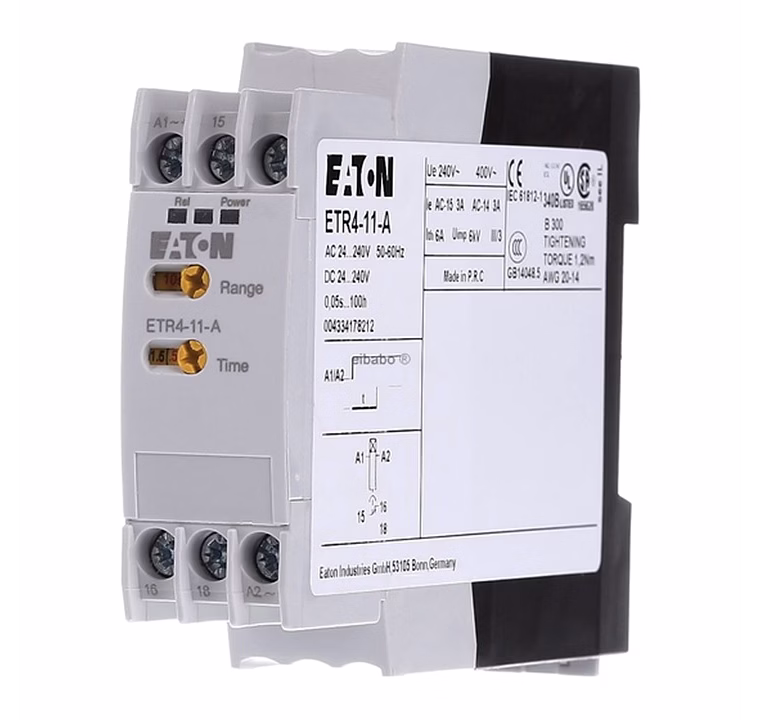

The Eaton Moeller Series ETR4 Timer Relay (Model: ETR4-11-A) is a highly reliable analogue on-delay electronic timing relay designed for precise timing control in industrial automation and contactor control systems. Operating across a broad voltage range from 24V to 240V AC/DC and featuring an adjustable timing range from 0.05 seconds up to 100 hours, this timer relay is ideal for applications demanding short rest times, high repetition accuracy, and frequent switching cycles. Its DIN rail mounting capability simplifies installation in control panels while the 1 changeover (SPDT) contact supports versatile switching requirements. The built-in IP20 protection rating ensures safety from accidental contact with live parts, and the product’s compliance with UL and CSA standards guarantees quality and performance for professional industrial applications.
Key Features
| Features | Description |
|---|---|
| Timing Function | On-delay timing |
| Voltage Range | 24-240V AC/DC 50/60Hz |
| Timing Range | 0.05 seconds to 100 hours |
| Current Rating | 3 Amperes rated operational current |
| Contact Configuration | 1 Changeover relay (SPDT) |
| Mounting Type | DIN rail mountable |
| Protection Rating | IP20 |
| Approval Certifications | UL and CSA approved |
| Time Selection | 10 selectable time ranges with potentiometers |
| Application | Contactor control systems, clock & timing in industrial automation |
| Attributes | Description |
|---|---|
| Model Number | ETR4-11-A |
| Series | Eaton Moeller Series ETR4 |
| Power Consumption | 1 Watt |
| Operating Voltage | 24-240V AC and 24-240V DC |
| Frequency | 50/60 Hz |
| Timing Range | 0.05s to 100 hours |
| Relay Type | Analogue on-delay electronic timer |
| Contact Type | 1 changeover (SPDT) |
| Rated Current | 3A |
| Mounting | DIN Rail |
| Protection Class | IP20 |
| Certifications | UL, CSA |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the ETR4-11-A timer relay operates within a voltage range of 24-240V AC as well as 24-240V DC at 50/60Hz frequency, allowing versatile use in different industrial applications.
The rated operational current for the ETR4-11-A changeover contact is 3 Amperes.
The timer relay offers an adjustable timing range from as low as 0.05 seconds up to 100 hours, configurable via potentiometers.
Yes, the ETR4-11-A model is specifically designed for easy installation on DIN rails, making it convenient for integration into industrial control panels.
This timer relay is UL and CSA certified, ensuring it meets international standards for safety and performance.
Brand: eaton
Country Of Origin: India
Eaton Moeller Series ETR4 Timer relay, 1W, 0.05s-100h, 24-240V50/60Hz, 24-240VDC, on-delayed,Din Rail.
ETR4-11-A from Eaton Moeller is ETR4 series analogue on-delay electronic timing relay. These timers are used in contactor control systems which require short rest times, high repetition accuracy, high switching frequency and long component life span.
Features-
On-delay timing function
UL, CSA approved
10 range of time selection between 0.05s to 100h
IP20 degree of protection
Operating voltage is 24VAC to 240VAC / 24VDC to 240VDC
Range and time selection potentio meters available
Rated operational current is 3A
1 changeover relay
DIN rail mountable
Application- Clock & Timing
