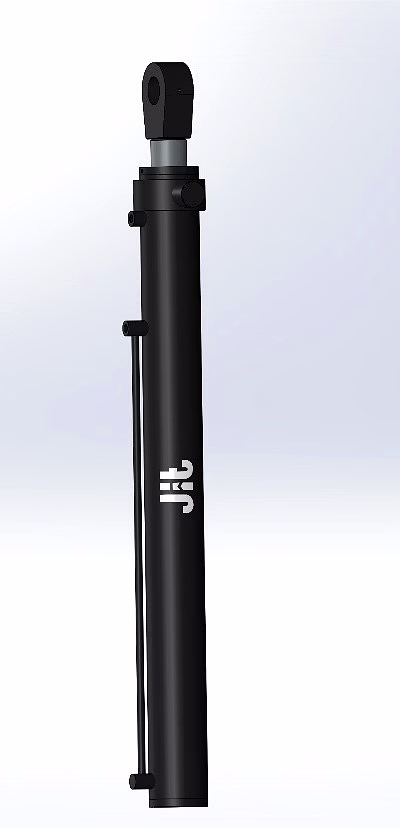

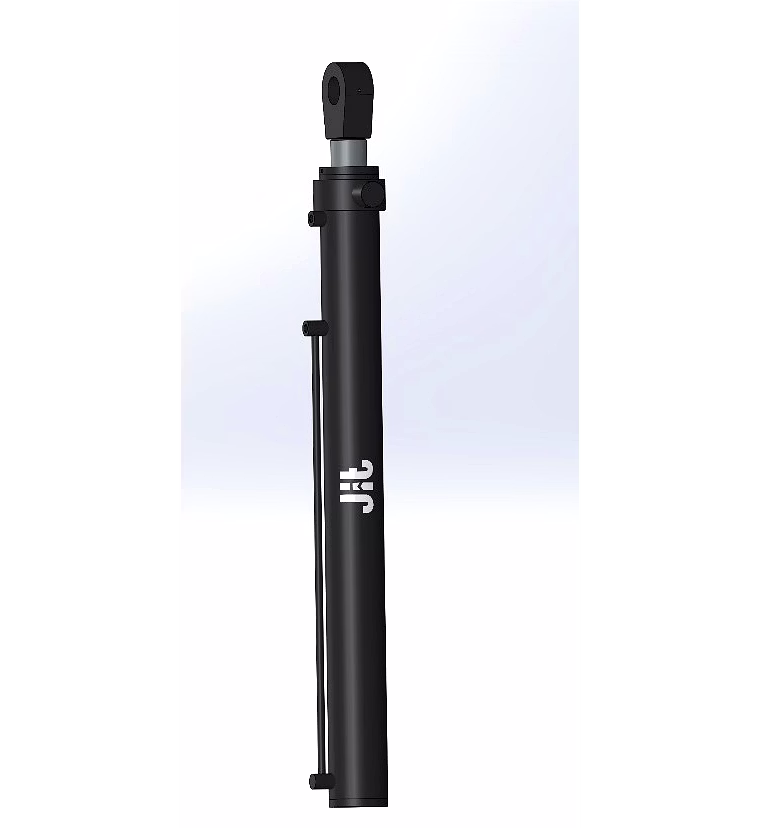

The Double Acting Telescopic Cylinder is a high-performance hydraulic actuator designed for precise control in both extension and retraction using hydraulic pressure. Featuring a multi-stage telescoping construction, it provides a long stroke within a compact closed length, making it highly adaptable for applications where space is limited but extended reach is required. Unlike single-acting cylinders, this model delivers force bidirectionally, ensuring smooth, controlled movement even in horizontal or non-gravity-assisted scenarios. Constructed with premium ST52 steel tubes and rods that are hard chrome-plated or induction-hardened, it ensures exceptional durability and wear resistance for heavy-duty industrial settings. Its heavy-duty seals prevent leakage during bidirectional operations, enhancing operational reliability. Commonly utilized in side tippers, underground mining equipment, refuse compactors, mobile cranes, and aerial platforms, this cylinder supports various mounting configurations including trunnion, flange, clevis, cross-tube, and custom options. With precision-ground tubes and hardened rods, the cylinder guarantees long service life, minimal maintenance requirements, and superior positioning accuracy, making it an optimal solution for demanding hydraulic applications requiring controlled horizontal retraction and multi-stage extended stroke cycles.
Key Features
| Features | Description |
|---|---|
| Operation Type | Double Acting (hydraulic pressure for both extension and retraction) |
| Construction | Telescoping Multi-Stage design for long stroke in compact length |
| Material | ST52 Steel Tubes; Hard Chrome-Plated or Induction Hardened Rods |
| Sealing System | Heavy-Duty Seals for bidirectional pressure sealing to prevent leaks |
| Retraction Control | Smooth and controlled retraction, suitable for horizontal applications |
| Mounting Options | Trunnion, Flange, Clevis, Cross-tube, Custom mountings |
| Durability | Precision-ground tubes and hardened rods for extended service life |
| Applications | Side Tippers, Underground Mining Equipment, Refuse Compactors, Mobile Cranes, Aerial Platforms |
| Stroke Efficiency | Multi-stage telescoping enables long stroke with minimal closed length |
| Attributes | Description |
|---|---|
| Stroke Type | Multi-Stage Telescoping |
| Cylinder Operation | Double Acting Hydraulic |
| Tube Material | ST52 Steel |
| Rod Treatment | Hard Chrome-Plated or Induction Hardened |
| Seal Type | Heavy-Duty Bidirectional Sealing |
| Mounting Styles Available | Trunnion, Flange, Clevis, Cross-tube, Custom |
| Suitable For | Horizontal Retraction and Gravity-Independent Applications |
| Service Life | Extended due to precision-ground and hardened components |
| Typical Industries | Mining, Waste Management, Construction, Material Handling |
| Control | Hydraulic pressure controlled extension and retraction |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The double acting design enables hydraulic force for both extension and retraction, providing controlled movement in applications where gravity retraction is not feasible, such as horizontal lifting or sideways movements.
The multi-stage design incorporates nested cylinder tubes that extend sequentially to achieve a long stroke from a minimal closed length, optimizing available space without compromising reach.
High-strength ST52 steel tubes combined with hard chrome-plated or induction-hardened rods provide excellent wear resistance and mechanical strength for heavy-duty industrial use.
Yes, the cylinder supports multiple mounting options including trunnion, flange, clevis, cross-tube, and customized mounts to seamlessly integrate with different equipment configurations.
Heavy-duty seals are designed for bidirectional pressure sealing, preventing hydraulic fluid leaks during both extension and retraction phases, which enhances reliability and service life.
Absolutely, the double acting mechanism combined with precision control makes it ideal for horizontal applications where gravity cannot assist retraction.
Country Of Origin: India
A Double Acting Telescopic Cylinder is a precision-engineered hydraulic actuator designed for controlled extension and retraction under hydraulic pressure. Unlike single-acting cylinders, it delivers force in both directions, making it ideal for applications that require horizontal movement or where gravity-assisted retraction is not possible. Its compact design with multi-stage extension enables a long stroke in a minimal closed length, offering flexibility and power in demanding industrial applications.
Advantages:
