Carbon Steel Buttweld Fittings

Name: Carbon Steel Buttweld Fittings
SKU: 8611615
Availability: InStoreOnly

MRP

Price

Inclusive of all taxes

Add to Cart

Continue to checkout

Send Inquiry

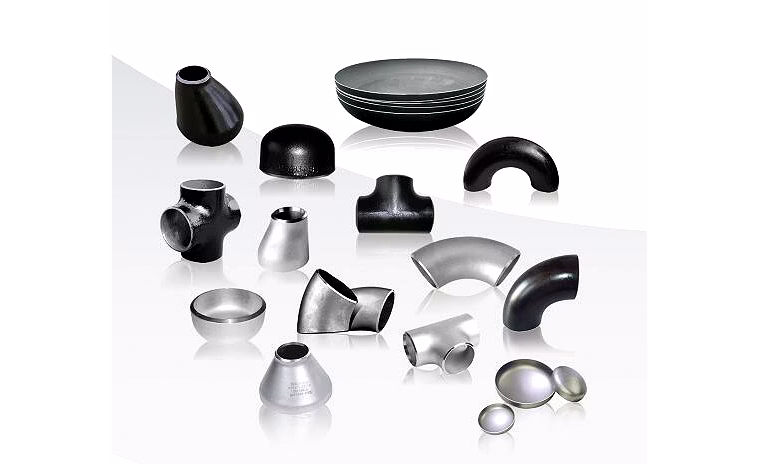

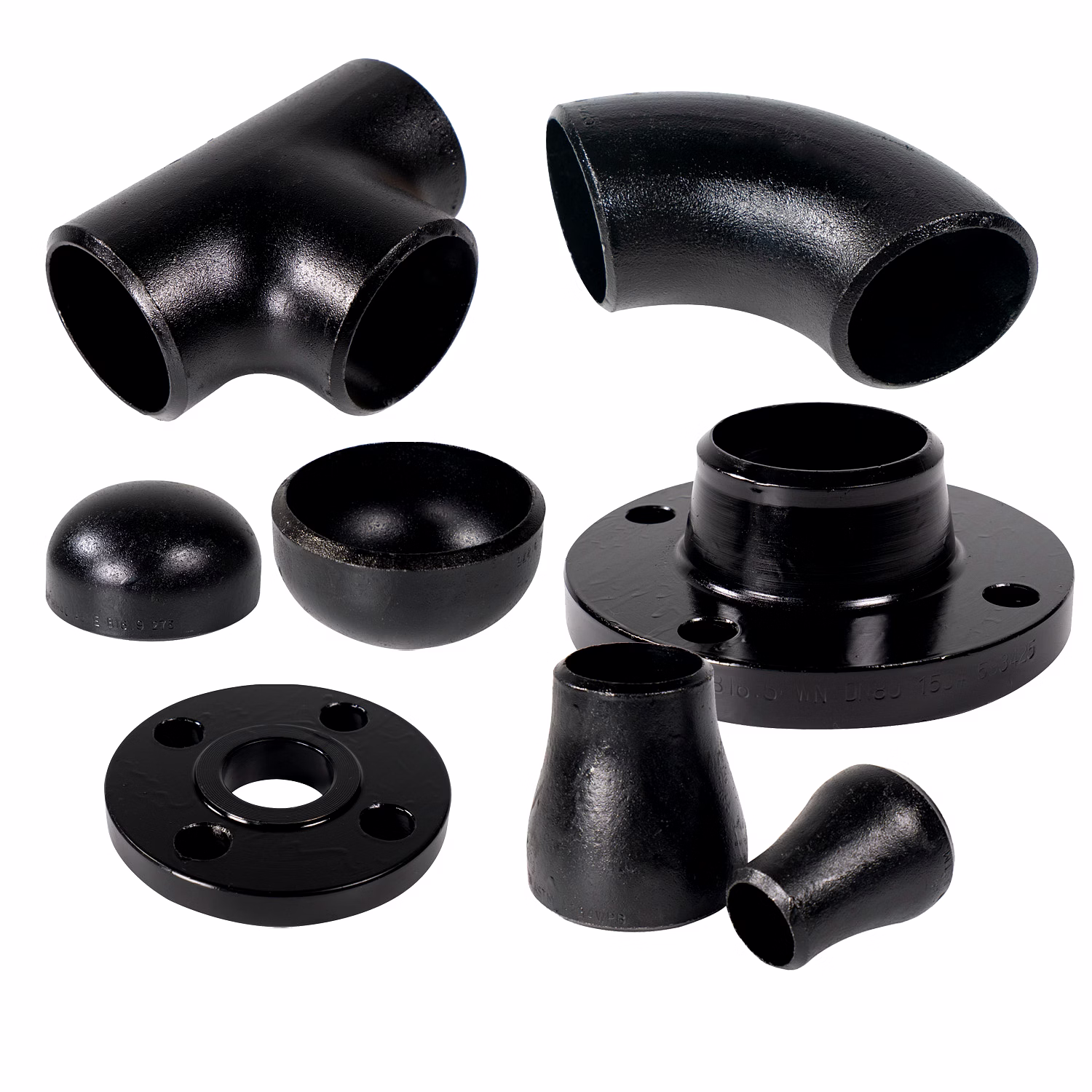

Carbon Steel Buttweld Fittings from NILAM STEELAGE INDIA PRIVATE LIMITED are precision-engineered components designed for joining pipes through butt welding, ensuring a robust, leak-proof, and permanent connection in a wide range of industrial piping systems. These fittings are manufactured per strict ASTM and ASME standards, making them ideal for applications in oil and gas, petrochemical, power plants, and general industrial sectors. Available in multiple types including elbows (90°, 45°, and 180°), tees (equal and reducing), reducers (concentric and eccentric), caps, crosses, and stub ends, these carbon steel fittings accommodate different pipe diameters and flow requirements efficiently. Manufactured using ASTM A234 WPB, ASTM A420 WPL6, and MSS-SP-75 WPHY grades, they meet the demands of medium to high temperature, low temperature, and high-pressure environments respectively. Their availability in various pipe schedules (Sch 40, Sch 80, Sch XXS) and sizes (1/2" NB to 60" NB) ensures compatibility with diverse industrial piping designs. NILAM STEELAGE ensures factory-direct pricing with a minimum order quantity of just one piece, providing export-ready quality fittings to global businesses.

Key Features

Features	Description
Material Grade	ASTM A234 WPB, ASTM A420 WPL6, MSS-SP-75 WPHY
Types Available	Elbows (90°, 45°, 180°), Tees (Equal & Reducing), Reducers (Concentric & Eccentric), Caps, Crosses, Stub Ends
Pipe Schedules	Sch 40, Sch 80, Sch XXS
Size Range	1/2" NB to 60" NB
Standard Compliance	ASME B16.9, ASME B16.28
Connection Method	Butt Welding
MOQ	1 Piece
Application	Oil & Gas, Petrochemical, Power Plants, Industrial Piping
Surface Finish	Smooth and ready for welding
Pressure Rating	Dependent on Pipe Schedule and Material Grade

Attributes	Description
Material Standard	ASTM A234
Temperature Range	Moderate to High (WPB), Low (WPL6)
Pressure Rating	High Pressure variants available with MSS-SP-75 WPHY grades
Manufacturing Standard	ASME B16.9, ASME B16.28
End Connection	Butt Weld
Surface Preparation	Ready for welding; deburred and smooth edges
Size Range	1/2" NB to 60" NB
MOQ	1 Piece

*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.

Product Reviews

Be the first to write a review

Review this product

Your Rating *Clear

Your Review *

Add an Image

What material grades are available for the carbon steel buttweld fittings?

The fittings are available in ASTM A234 WPB for general moderate to high temperature services, ASTM A420 WPL6 for low-temperature applications, and MSS-SP-75 WPHY grades like WPHY 42, 52, 65, and 70 for high-pressure transmission pipelines.

Which standards do the carbon steel buttweld fittings comply with?

They comply with ASTM A234 for material specifications, and are manufactured according to ASME B16.9 for standard fittings and ASME B16.28 for short radius elbows.

What sizes and pipe schedules are offered for these buttweld fittings?

Sizes range from 1/2 inch NB to 60 inch NB, with pipe schedules including Sch 40, Sch 80, and Sch XXS to meet different pressure ratings.

Are these fittings suitable for high-pressure applications?

Yes, MSS-SP-75 WPHY grades are high-yield materials specifically designed for high-pressure transmission pipelines.

What types of fittings are included in the carbon steel buttweld fittings range?

The product range includes elbows (90°, 45°, 180°), tees (equal and reducing), reducers (concentric and eccentric), caps, crosses, and stub ends.

Incorporation Type
GST
GST Registration Date
Number of Employees
Import Export Code (IEC)
Year of Establishment
Nature of Business
GlobalLinker Member Since

Country Of Origin: India

Carbon steel buttweld fittings are essential components used to change the direction, branch off, or reduce the size of a piping system. They are joined to pipes through butt welding, which creates a strong, leak-proof, and permanent.

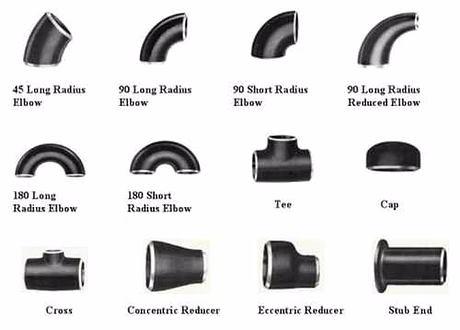

Common Types of Fittings

Elbows: Used to change the flow direction. Available in 90°, 45°, and 180° (return bend) angles. They come in Long Radius (LR) for smoother flow or Short Radius (SR) for tight spaces.
Tees: T-shaped fittings with three outlets. Equal Tees have three identical diameters, while Reducing Tees have a smaller branch outlet.
Reducers: Connect pipes of different diameters. Concentric Reducers share the same centerline (ideal for vertical lines), and Eccentric Reducers have an offset centerline (ideal for horizontal lines to prevent air pockets).
Caps: Used to seal the end of a pipeline.
Crosses: Connect four pipelines at a single point.
Stub Ends: Used in combination with lap joint flanges to allow for easy inspection and maintenance.

Materials and Grades

Buttweld fittings are primarily manufactured from wrought carbon steel according to ASTM A234 standards.

ASTM A234 WPB: The most common grade for moderate to high-temperature services.
ASTM A420 WPL6: Specifically designed for low-temperature applications.
MSS-SP-75 WPHY: High-yield grades (e.g., WPHY 42, 52, 65, 70) used for high-pressure transmission pipelines.

Standards and Specifications

Dimensions & Tolerances: Manufactured according to ASME B16.9 (standard wrought fittings) and ASME B16.28 (short radius elbows).
Schedules: Unlike threaded fittings that use pressure classes, buttweld fittings are specified by pipe schedule (e.g., Sch 40, Sch 80, Sch XXS), which determines wall thickness and pressure rating.
Sizes: Typically range from 1/2" NB to 60" NB.
