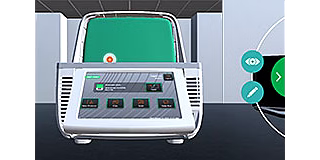

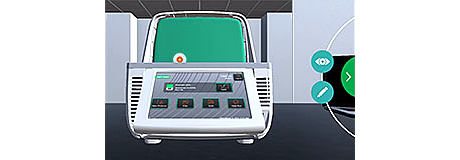

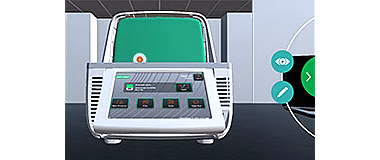

The Bio Rad CFX384 Touch Real-Time PCR Detection System is engineered for accurate and efficient real-time PCR applications in a high-throughput 384-well format. This state-of-the-art system is tailored for researchers requiring sophisticated optical detection paired with advanced temperature control capabilities. It incorporates powerful features such as a user-friendly LCD touchscreen for easy navigation, real-time monitoring of amplification traces, and the capability to conduct both singleplex and multiplex reactions with precision. Moreover, the CFX384 Touch integrates seamlessly with CFX Maestro Software, allowing for intuitive design and analysis of experiments from a connected computer. By utilizing innovative 4-color detection optics and robust thermal cycler performance, this system ensures reliable and reproducible qPCR results that propel your research efforts forward, enhancing productivity in genomic studies and diagnostics.
Key Features
| Features | Description |
|---|---|
| High-Throughput Format | 384-well format for increased sample capacity. |
| Touchscreen Interface | User-friendly 7-inch LCD touchscreen for easy access and real-time monitoring. |
| Advanced Detection Optics | Equipped with sensitive 4-color detection optics for enhanced result accuracy. |
| Robust Thermal Cycler | Fast ramp rates ensure efficient cycling with minimal delays. |
| Intuitive Software Integration | CFX Maestro Software for easy experiment design and detailed results analysis. |
| Multiplexing Capability | Up to four targets can be detected simultaneously. |
| Accurate Temperature Control | Temperature range of 4–100°C with ±0.2°C accuracy. |
| Dynamic Range | Capable of detecting 1 copy of target sequence with a dynamic range of 10 orders of magnitude. |
| Attributes | Description |
|---|---|
| Maximum Ramp Rate (°C/sec) | 2.5 |
| Average Ramp Rate (°C/sec) | 2 |
| Heating and Cooling Method | Peltier |
| Lid Temperature Range (°C) | 30–110 |
| Temperature Range (°C) | 4–100 |
| Accuracy (°C) | ±0.2 of programmed target at 90°C |
| Uniformity (°C) | ±0.3 well-to-well after 10 sec at target |
| Gradient Operational Range (°C) | 30–100 |
| Programmable Span (°C) | 1–24 |
| Excitation Wavelengths (nm) | 450–650 |
| Emission Wavelengths (nm) | 515–690 |
| Sensitivity | Detects 1 copy of target sequence in human genomic DNA. |
| Dynamic Range | 10 orders of magnitude. |
| Scan Time (All Channels, sec) | 1 |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The maximum temperature range of the CFX384 Touch system is 4–100°C.
The system is capable of detecting up to four targets simultaneously.
The system integrates with CFX Maestro Software for intuitive experiment design and results analysis.
The CFX384 Touch can detect as low as 1 copy of the target sequence in human genomic DNA.
The average ramp rate is 2°C per second.
Brand: bio rad
Country Of Origin: India
Bio Rad CFX384 Touch Real-Time PCR Detection System by Bio Rad is engineered for precision testing and used in quality assurance workflows. Built with robust components and advanced optics, it ensures reliable measurements for high-precision lab and production environments.
