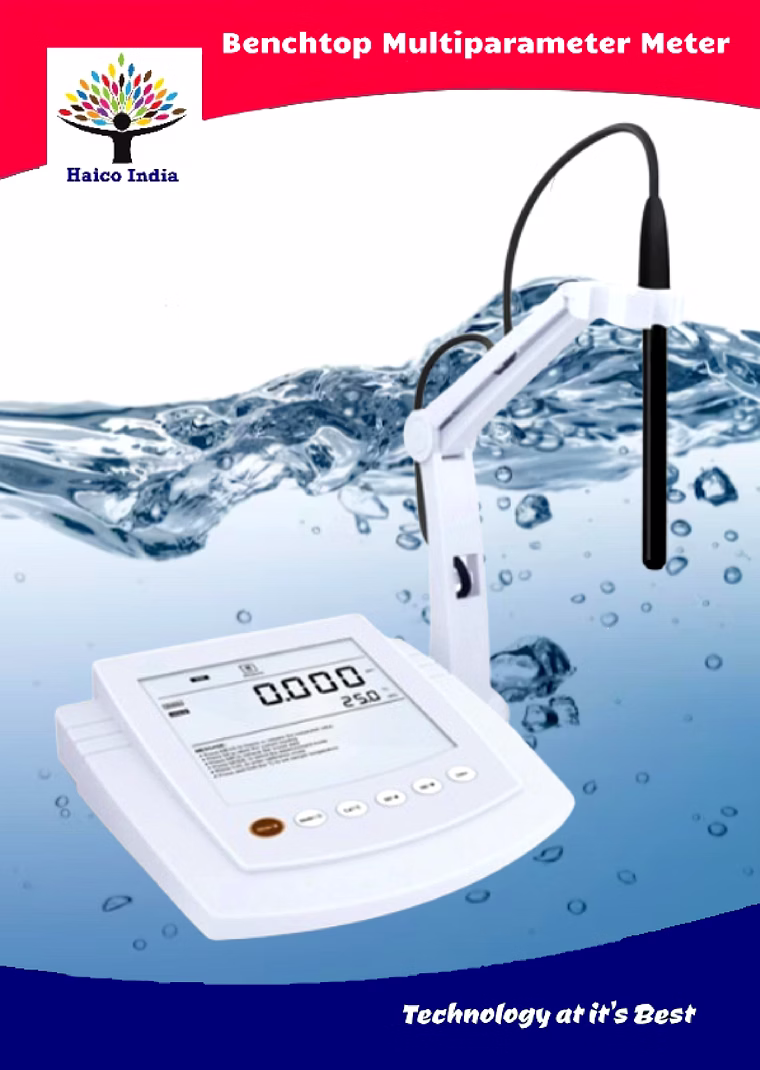

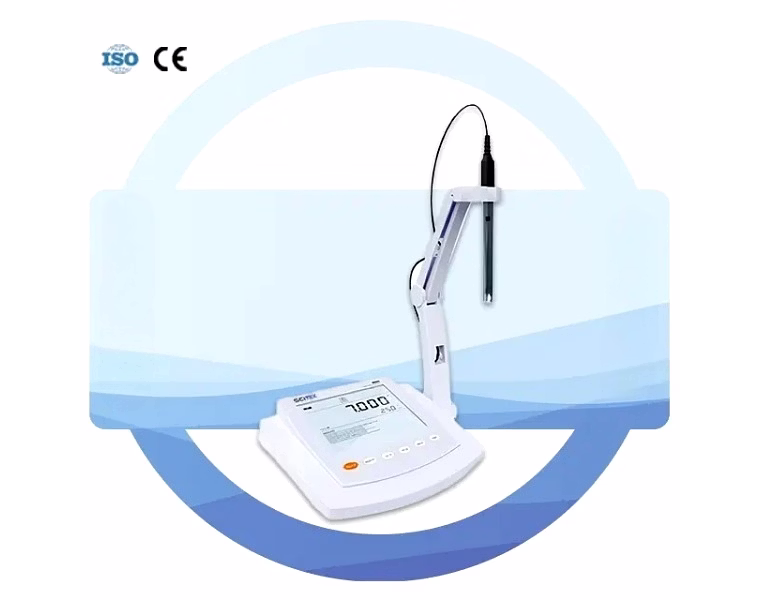

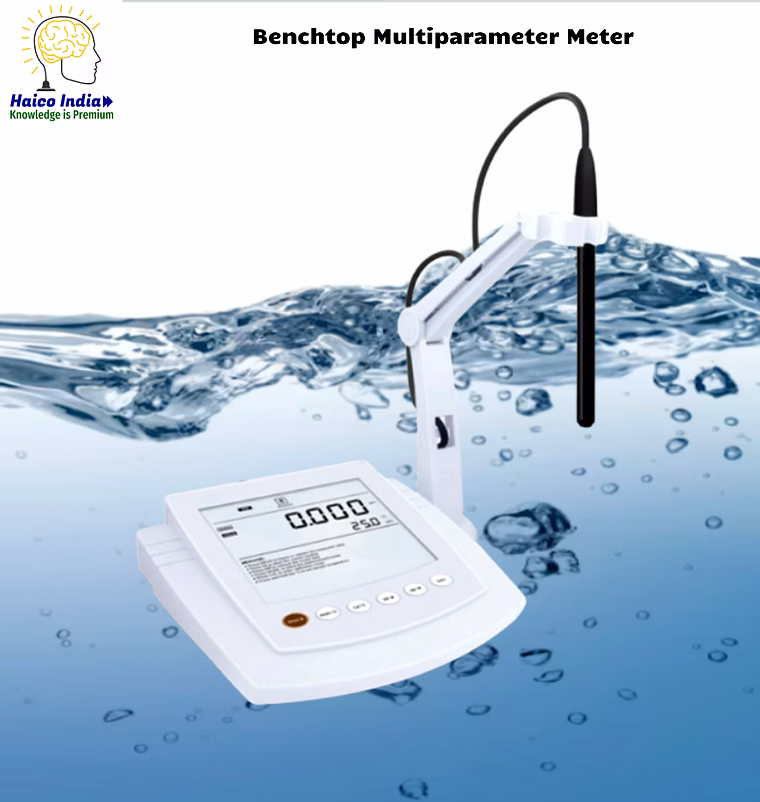

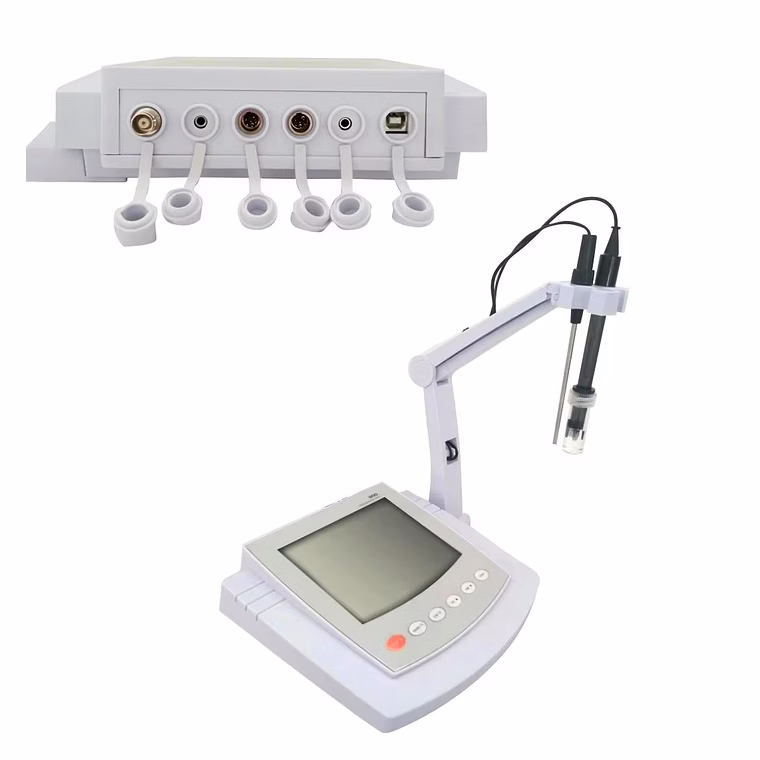

The Benchtop Multiparameter Meter is a robust and versatile device designed for measuring a wide range of water quality parameters with high precision. This instrument supports a total of 15 optional parameters, including pH, ORP, ion concentration, conductivity, total dissolved solids (TDS), salinity, resistivity, and dissolved oxygen (DO). It is ideal for laboratories, aquaculture, environmental monitoring, and industrial applications. The multiparameter meter features user-friendly calibration modes, customizable settings, and advanced temperature compensation mechanisms to ensure accurate readings across a range of environmental conditions. Its large LCD display provides clear readings, and multiple calibration points allow for flexibility in measurements. Additionally, the meter can store up to 500 data sets and features USB connectivity for data transfer, making it an essential tool for professionals seeking reliable and comprehensive water quality analysis.
Key Features
| Features | Description |
|---|---|
| Multiparameter Capability | Measures 15 parameters including pH, ORP, DO, and more. |
| Calibration | 1 to 5 point calibration options for various modes. |
| Temperature Compensation | Manual and Automatic compensation from 0 to 100°C. |
| Data Storage | Stores up to 500 data sets for efficient data management. |
| USB Connectivity | Allows easy data export and logging. |
| LCD Display | Large and clear display for easy reading of measurements. |
| Power Options | Can be powered using DC adapter or AC power. |
| Attributes | Description |
|---|---|
| pH Range | -2.000 to 20.000 pH |
| pH Accuracy | ±0.002 pH |
| mV Range | -1999.9 to 1999.9 mV |
| Ion Range | 0.001 to 19999 ppm, mg/L, mol/L |
| Conductivity Range | 0 to 20.00, 200.0, 2000 µS/cm |
| TDS Range | 0 to 100 ppt (Max. 200 ppt depending on factor) |
| Salinity Range | 0 to 10 ppt (Max. 80 ppt) |
| Dissolved Oxygen Range | 0.00 to 20.00 mg/L (or ppm) |
| Weight | 1.5 kg |
| Dimensions | 210 (L) × 188 (W) × 60 (H) mm |
| Power Requirements | DC5V, using AC adapter, 220VAC/50Hz |
| Display | LCD (130×110mm) |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The meter can measure pH, ORP, ion concentrations, conductivity, TDS, salinity, resistivity, and dissolved oxygen.
The meter supports 1 to 5 calibration points depending on the measurement mode used.
No, it requires a DC power adapter or AC power source. USB is used only for data export.
The TDS range is from 0 to 100 ppt, with a maximum of 200 ppt depending on the factor setting.
Yes, the meter has both manual and automatic temperature compensation options ranging from 0 to 100°C.
Brand: haico
Country Of Origin: India
Characteristics:
Multiparameter meter contains 15 optional parameters pH, ORP, Ion, conductivity, TDS, salinity, resistivity and DO of the samples.
pH Mode:
• 1 to 5 points push-button calibration with auto-buffer recognition.
• Automatic electrode slope display helps user decide whether to replace the pH electrode.
ORP Mode:
• Single point offset calibration allows adjusting the displayed value to a known standard.
• Relative and absolute millivolt measurements provide accurate ORP readings.
Ion Mode:
• 2 to 5 points calibration including the eight concentration calibration points can be selected.
• Selectable multiple concentration units including the ppm, mg/L and mol/L.
Conductivity/TDS/Salinity/Resistivity Mode:
• 1 to 5 points push-button calibration, automatically recognizes the standard solutions.
• Selectable cell constant, normalization temperature, TDS conversion factor, seawater and
practical salinity measurement modes.
Dissolved Oxygen Mode:
• 1 or 2 points calibration using the air-saturated water and zero oxygen solution.
• Manual salinity and barometric pressure compensations ensure accurate measureme
pH Range: -2.000~20.000pH
Accuracy: ±0.002pH
Resolution: 0.1, 0.01, 0.001pH, Selectable
Calibration Points: 1 to 5 points
Calibration Solutions: USA, NIST, DIN or User-defined
Temperature Compensation: 0~100°C, 32~212°F
Compensation Mode: Manual or Automatic
mV Range: -1999.9~1999.9mV
Accuracy: ±0.2mV
Resolution: 0.1, 1mV, Selectable
Calibration Points: 1 point (Only for Relative mV mode)
Calibration Range: ±200mV
Ion Range: 0.001~19999ppm, mg/L, mol/L (Refer to the range of ISE)
Accuracy: ±0.5% F.S (Monovalent), ±1% F.S (Divalent)
Resolution: 0.001, 0.01, 0.1, 1
Calibration Points: 2 to 5 points
Calibration Solutions: 0.001, 0.01, 0.1, 1, 10, 100, 1000, 10000ppm, mg/L, mol/L
Temperature Compensation: 0~100°C, 32~212°F
Compensation Mode: Manual or Automatic
Conductivity Range: 0~20.00, 200.0, 2000µS/cm, 20.00, 200.0mS/cm
Accuracy: ±0.5% F.S
Calibration Points: 1 to 5 points
Calibration Solutions: 10µS/cm, 84µS/cm,1413µS/cm,12.88mS/cm,111.8mS/cm
Temperature Compensation: 0~100°C, 32~212°F, Manual or Automatic
Temperature Coefficient: 0.0~10.0%/°C
Compensation Modes: Linear or Pure Water
Cell Constant: K=0.1, 1, 10 or User-defined
Normalization Temperature: 20°C or 25°C
TDS Range: 0~100ppt (Max. 200ppt, depending on factor setting)
Accuracy: ±1% F.S
TDS Factor: 0.1~1.0 (Default 0.5)
Salinity Range: 0~10ppt (Max. 80ppt)
Accuracy: ±1% F.S
Measurement Modes: Seawater or Practical Salinity
Resistivity Range: 0~100MΩ
Accuracy: ±1% F.S
Resolution: 0.01, 0.1, 1
Dissolved Oxygen Range: 0.00~20.00mg/L (or ppm)
Accuracy: ±0.2mg/L
Resolution: 0.01mg/L
Calibration Points: 1 or 2 points
Temperature Compensation: 0~50°C, 32~122°F, Automatic
Pressure Correction: 60.0~112.5kPa, 450~850mmHg
Salinity Correction: 0~50g/L
% Saturation of Oxygen Range: 0.0~200.0%
Accuracy: ±2.0%
Resolution: 0.1, 1%
Temperature Range: 0~105°C, 32~221°F
Accuracy: ±0.5°C, ±0.9°F
Resolution: 0.1°C
Calibration Points: 1 point
Calibration Range: Measured value ±10°C
Others Features:
