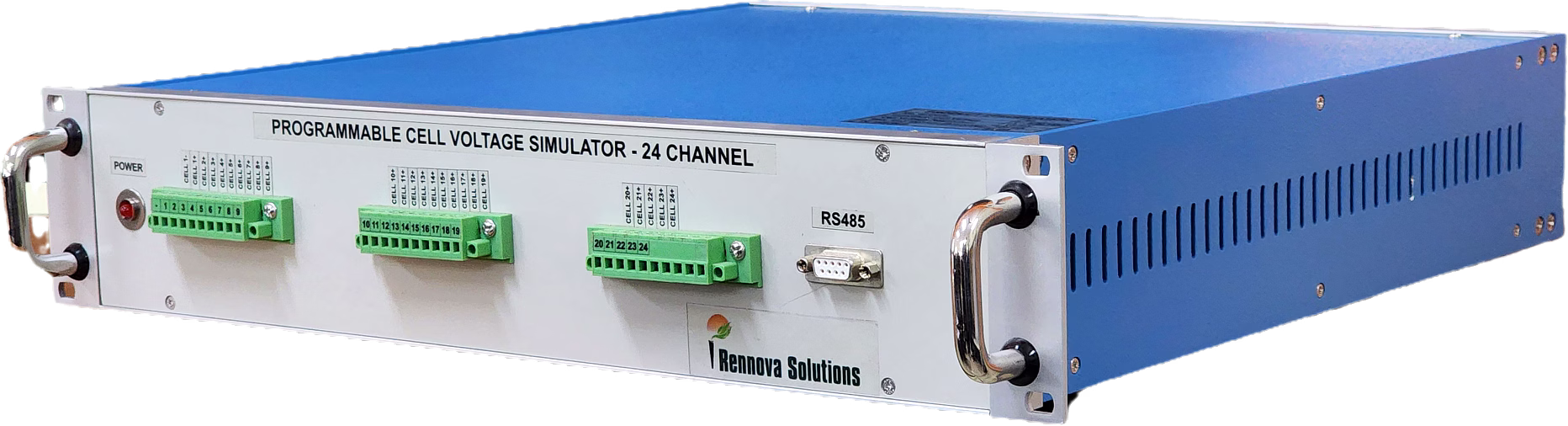

The Battery Cell Simulator, also known as a BMS (Battery Management System) Tester, is an advanced specialized test instrument designed to simulate the behavior and electrical characteristics of up to 24 individual battery cells. It accurately replicates the charging and discharging profiles, cell voltage ranges (0 to 5V), cell current up to -100mA, and cell temperature (via 3 temperature simulations) experienced by real battery cells. This device enables manufacturers and developers to rigorously test and validate BMS ECUs in design and production phases, ensuring reliable cell voltage monitoring, current sensing, cell balancing, and fault diagnosis capabilities (including open circuit and short circuit fault simulation). Additionally, it supports CAN communication and CAN message logging for comprehensive analysis. The system is modular and cascadable to simulate high voltage battery packs, facilitating 24x7 laboratory testing environments. Ideal for EV, renewable energy, and portable device sectors, this simulator ensures safer and more efficient battery management system performance validation without the need for actual battery cells.
Key Features
| Features | Description |
|---|---|
| Number of Cells | 24 |
| Cell Voltage Range | 0 to 5 Volts |
| Cell Current Capacity | -100 mA |
| Cascadable Configuration | Supports cascading for simulating high voltage battery packs |
| Fault Simulation Types | Open circuit fault, Short circuit fault |
| Cell Temperature Simulation | 3 temperature sensors simulated |
| Shunt Sensor Simulation | Voltage range from -1 V to +1 V |
| CAN Communication | Supports CAN messages logging and communication |
| Continuous Operation | Supports 24x7 Lab testing of BMS ECU |
| Application | Validation of BMS ECU during design and production phases |
| Attributes | Description |
|---|---|
| Model Type | Battery Cell Simulator / BMS Tester |
| Simulated Cells | 24 Cells |
| Voltage Range per Cell | 0 - 5 V |
| Current Simulation | -100mA |
| Fault Simulation | Open Circuit, Short Circuit |
| Temperature Simulation Units | 3 simulated cell temperatures |
| Shunt Sensor Voltage Range | -1 V to +1 V |
| Communication Interface | CAN bus with message logging |
| Operating Conditions | Suitable for laboratory testing environments |
| Modularity | Cascadable for high voltage battery pack simulation |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the device is designed to be cascadable, allowing multiple units to be linked together to simulate high voltage battery packs beyond 24 cells.
It supports simulation of cell faults such as open circuit and short circuit conditions to effectively test BMS fault detection and response capabilities.
Yes, it simulates the temperature of 3 individual cells to help validate BMS temperature monitoring and management functionality.
Yes, the Battery Cell Simulator supports CAN bus communication with the capability to log CAN messages for detailed analysis of BMS behavior.
Yes, it accurately replicates both charging and discharging profiles of battery cells, enabling comprehensive BMS validation.
Brand: rennova solutions
Country Of Origin: India
A Battery Cell Simulator, also known as a BMS (Battery Management System) Tester, is a specialized test system used to simulate the behaviour and characteristics of battery cells for the purpose of testing and evaluating BMS functionality.
Application
Key Features
