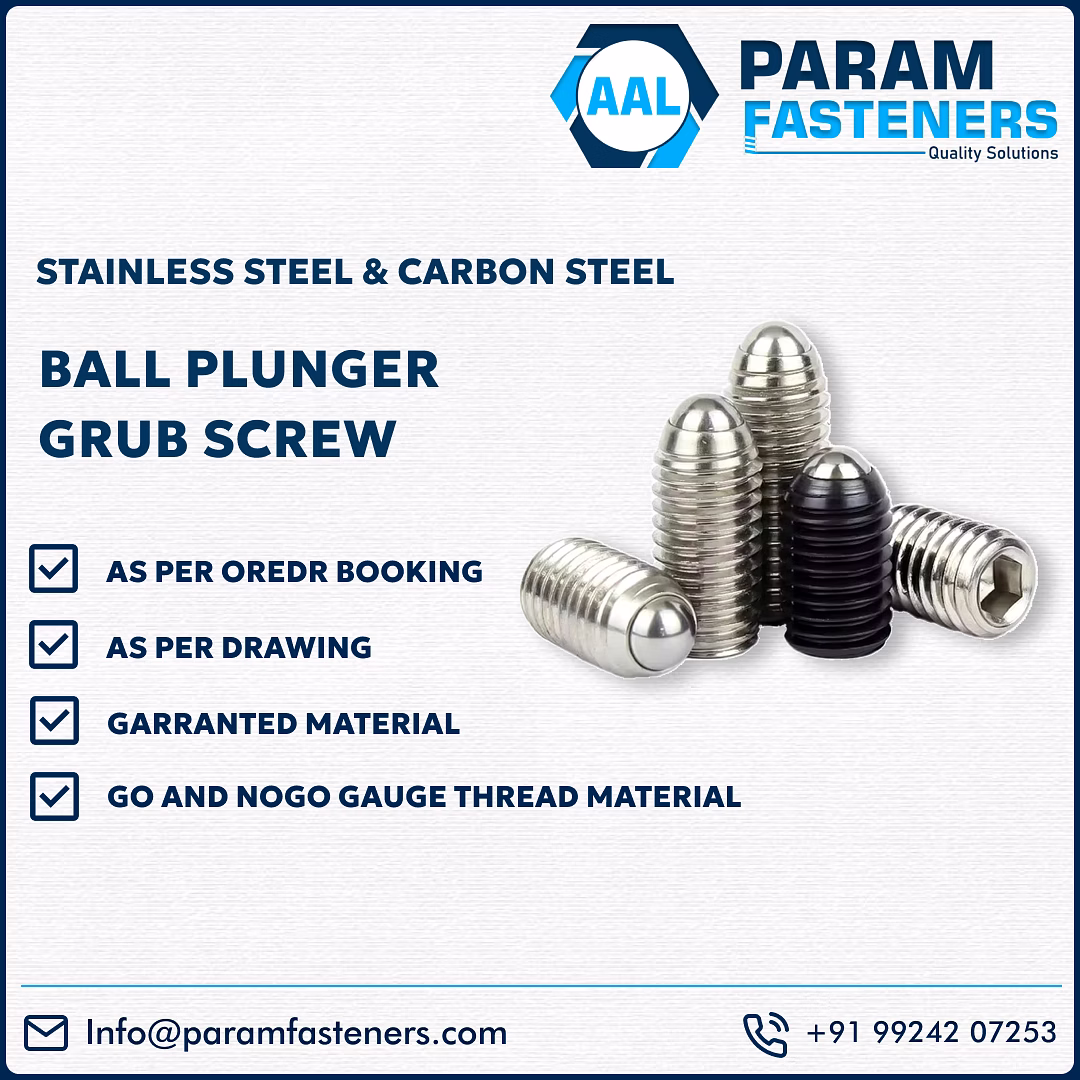

Ball Plunger Grub Screws are precision-engineered spring-loaded screws featuring a high-quality steel or stainless steel ball seated within a threaded body. Designed specifically for accurate positioning, indexing, and controlled pressure applications, these screws utilize an internal spring mechanism to deliver consistent force, enabling reliable engagement and disengagement between mechanical components. Constructed from stainless steel, carbon steel, or brass bodies combined with hardened steel or stainless steel balls, the product offers robust resistance to wear and corrosion. Available in both metric and inch thread types (UNC/UNF), and compliant with DIN 438 and ISO standards, these ball plunger grub screws cater to customizable application needs with light, medium, and heavy spring force options. They are vital components in jigs, fixtures, molds, indexing mechanisms, detent systems, and door latches, widely employed across automotive, aerospace, tooling, and machinery manufacturing industries for enhanced precision and operational reliability.
Key Features
| Features | Description |
|---|---|
| Material | Stainless Steel, Carbon Steel, Brass (body); Hardened Steel or Stainless Steel (ball) |
| Thread Types | Metric & Inch (UNC/UNF) |
| Tip Style | Ball End |
| Spring Force Options | Light, Medium, Heavy |
| Standards | DIN 438 / ISO; Custom sizes available |
| Application Areas | Jigs, fixtures, molds, indexing mechanisms, detent systems, door latches, positioning devices |
| Industry Usage | Automotive, Aerospace, Tooling, Machinery |
| Attributes | Description |
|---|---|
| Body Material | Stainless Steel, Carbon Steel, Brass |
| Ball Material | Hardened Steel, Stainless Steel |
| Thread Type | Metric and Inch (UNC/UNF) |
| Tip Style | Ball End |
| Spring Force | Light, Medium, Heavy options depending on application |
| Standards Compliance | DIN 438, ISO standards |
| Customization | Available on request for sizes and spring force |
| Corrosion Resistance | High, due to stainless steel and brass materials |
| Typical Applications | Positioning, indexing, detents, latching in mechanical assemblies |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The body of the screw can be made from stainless steel, carbon steel, or brass, while the ball is made from hardened steel or stainless steel to ensure durability and corrosion resistance.
Yes, in addition to standard DIN 438 and ISO sizes, custom sizes and spring forces (light, medium, heavy) can be provided upon request to suit specific application requirements.
These screws are available in both metric threads and inch threads, including UNC and UNF standards, enhancing their versatility across different mechanical assembly needs.
They are commonly used in automotive, aerospace, tooling, and machinery industries for applications such as jigs, fixtures, molds, indexing mechanisms, and detent systems involving precise positioning.
The internal spring force determines the pressure exerted by the ball on the mating parts, with light, medium, and heavy options available to allow tailored engagement strength and ease of component movement.
Country Of Origin: India
Ball Plunger Screw
Ball Plunger Screws are spring-loaded devices featuring a precision steel or stainless steel ball housed inside a threaded body. They are used to apply accurate positioning, indexing, and controlled pressure in mechanical assemblies. The internal spring exerts a consistent force, allowing for easy engagement and disengagement between components.
Key Features:
Material: Stainless Steel, Carbon Steel, Brass (body) / Hardened Steel or Stainless Steel (ball)
Thread Types: Metric & Inch (UNC/UNF)
Tip Style: Ball End
Spring Force Options: Light, Medium, Heavy (as per application)
Standards: DIN 438 / ISO / Custom sizes available
Applications:
Ideal for use in jigs, fixtures, molds, indexing mechanisms, detent systems, door latches, and positioning devices across industries such as automotive, aerospace, tooling, and machinery.
