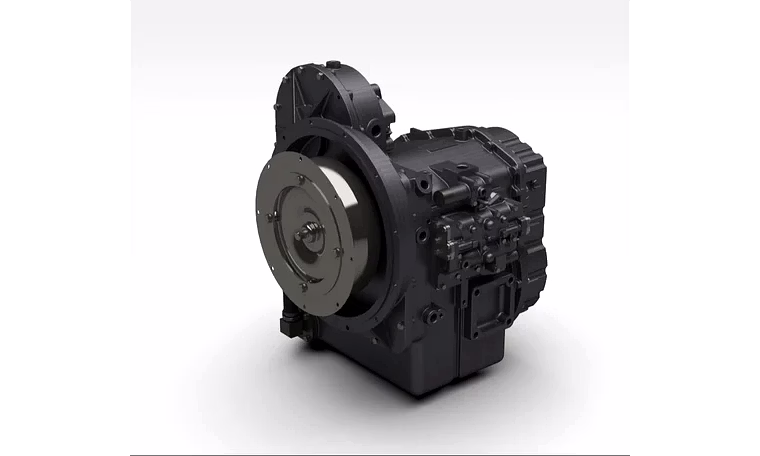

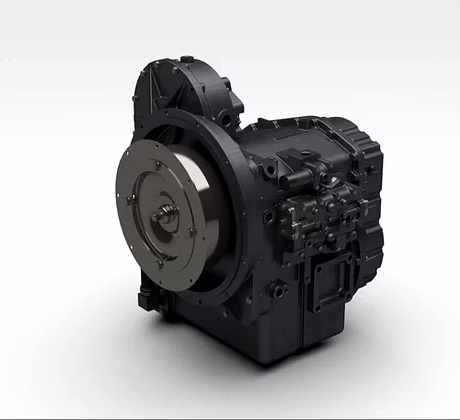

The AVTEC CT 100 (100HP) Transmission is a high-performance transmission system specifically designed for the material handling industry. Renowned for its balanced forward and reverse gear range, it offers versatile operational capabilities with 23 forward and 3 reverse speeds or an alternative ratio of 2 forward and 2 reverse speeds. It supports manual shifting options both in hydraulic and electric forms, catering to diverse operational preferences. This transmission accommodates an engine-driven PTO option, enhancing its applicability in various machinery setups. It delivers a net input power of 100 horsepower (74.5 kW) and a robust torque output of 221 pound-feet (300 Nm), capable of handling demanding workloads. With a maximum input speed of 2,500 rpm, the AVTEC CT 100 ensures efficient power transfer and durability. It features a SAE-3 converter housing with rear and dual-side frame mounting, compatible output flanges (Mechanic 6C or Spicer 1410), a stall torque ratio of 2.870:1, SAE B 2-bolt mounting pads, and SAE C spine sizes for versatile mechanical integration. This transmission is an ideal solution for enterprises seeking reliable and adaptable powertrain performance in material handling equipment.
Key Features
| Features | Description |
|---|---|
| Net Input Power | 100 horsepower (74.5 kilowatts) |
| Net Input Torque | 221 pound-feet (300 newton-meters) |
| Maximum Input Speed | 2,500 revolutions per minute |
| Gear Speeds | 23 Forward and 3 Reverse or 2 Forward and 2 Reverse |
| Shift Type | Manual Hydraulic or Manual Electric Shift |
| Engine Driven PTO | Available |
| Converter Housing | SAE-3 (Rear and Two Sides on Frame) |
| Output Flange Options | Mechanic 6C or Spicer 1410 |
| Stall Torque Ratio | 2.870:1 |
| Mounting Pads | SAE B 2 Bolt Mounting |
| Spine Size | SAE C or Splines (1:1) |
| Attributes | Description |
|---|---|
| Model | AVTEC CT 100 |
| Power Rating | 100 HP (74.5 kW) |
| Torque Rating | 221 lb-ft (300 Nm) |
| Max Input Speed | 2500 RPM |
| Available Gear Configurations | 23 Forward + 3 Reverse or 2 Forward + 2 Reverse |
| Shift Mechanism | Manual Hydraulic Shift / Manual Electric Shift |
| PTO Feature | Engine Driven PTO Option Available |
| Converter Housing Type | SAE-3 with rear & dual-side frame mounting |
| Output Flange | Mechanic 6C or Spicer 1410 |
| Stall Torque Ratio | 2.870:1 |
| Mounting Pads | SAE B 2 bolt |
| Spine Size | SAE C or 1:1 Splines |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The AVTEC CT 100 transmission supports a manual hydraulic shift and a manual electric shift option, catering to different operator requirements.
Yes, the AVTEC CT 100 transmission offers an engine-driven PTO option, enhancing its versatility for various material handling applications.
This transmission provides two configurations: 23 forward and 3 reverse speeds or 2 forward and 2 reverse speeds.
It is compatible with Mechanic 6C and Spicer 1410 output flange types, allowing integration with different driveline assemblies.
The stall torque ratio is 2.870:1, which indicates the torque multiplication capability at stall, important for applications requiring high torque at low speeds.
Brand: avtec
Country Of Origin: India
CT100. CT 100 transmission is the most popular model in material handling segment with equal forward and reverse gear range. Manual hydraulic shift and manual electric shift is available with engine driven PTO option.
Net input power: 100 horsepower (74.5 kilowatts)
Net input torque: 221 pound-feet (300 newton-meters)
Maximum input speed: 2,500 revolutions per minute
Speeds: 23 forward and 3 reverse, or 2 forward and 2 reverse
Manual shift: Hydraulic or electric
Engine driven PTO option: Available
Converter housing: SAE-3 in the rear and two sides on the frame
Output flange: Mechanic 6C or Spicer 1410
Stall torque ratio: 2.870:1
Mounting pads: SAE B 2 bolt mounting
Spine size: SAE C or splines (1:1)
