The Automatic Hatch Angle Measurement system is an advanced imaging solution designed to measure cross hatch angles directly from live video feeds without requiring image capture. This innovation streamlines the inspection process for coatings, paints, and surface treatments by providing real-time angle detection and measurement. Ideal for industrial quality control and surface evaluation, it enhances workflow efficiency with instant feedback and precise angle quantification. The system supports quick assessments, enabling faster decision-making and maintaining consistency in cross hatch adhesion testing as per industry standards. By eliminating the need to manually capture and process images, this solution reduces inspection time and operator workload, making it a valuable tool for professionals in manufacturing, coatings, and material testing laboratories.
Key Features
| Features | Description |
|---|---|
| Real-Time Measurement | Measures cross hatch angles directly on live video without image capture |
| Improved Workflow Efficiency | Enables faster assessments and decision-making |
| High Accuracy | Precise detection and measurement of cross hatch angles adhering to quality standards |
| User-Friendly Interface | Simplifies angle measurement with intuitive controls on live feed |
| Industrial Application | Suitable for coatings, paints, and surface treatment evaluations |
| Non-Destructive Testing | Allows inspection without damaging the sample surface |
| Supports Quality Control | Facilitates compliance with adhesion testing protocols |
| Video Feed Integration | Operates directly on live video feeds from inspection cameras |
| Reduced Manual Efforts | Eliminates need for manual image capture and processing |
| Versatile Use Cases | Applicable for manufacturing lines, laboratories, and field inspections |
| Attributes | Description |
|---|---|
| Measurement Technique | Automated angle detection via video analysis |
| Input Source | Live video feed from compatible inspection cameras |
| Angle Range | Typically measures angles between 0° to 90° cross hatch |
| Display Output | Real-time angle readouts on user interface |
| Compatibility | Integrates with existing quality control hardware and software |
| Operation Mode | Non-contact, live imaging measurement |
| Accuracy | Resolution up to 0.1° angle measurement |
| Data Export | Supports export of measurement results for documentation |

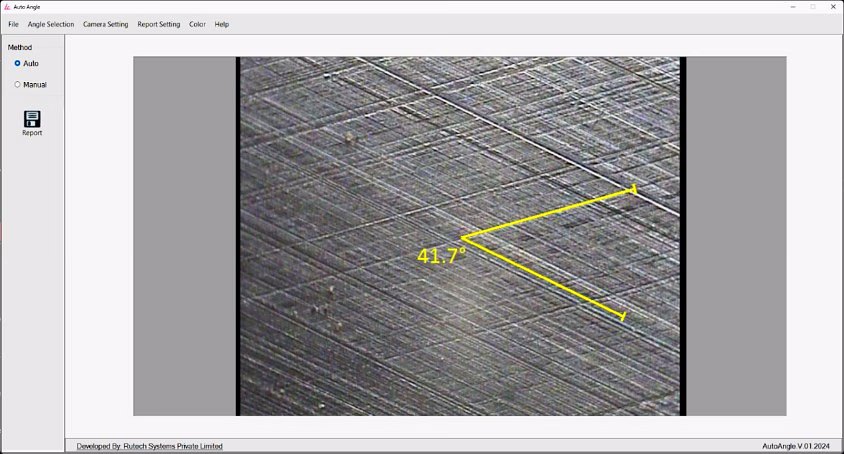

| User Interface | Graphical UI showing live video, angle overlays, and measurements |
| Power Requirements | Dependent on integrated system hardware compatibility |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The system is compatible with a range of inspection cameras that provide live video feeds, but compatibility depends on the camera's ability to integrate with the system's software interface. Specific camera requirements should be referenced in the product manual.
The system provides angle measurements with a resolution up to 0.1°, ensuring precise and reliable assessment suitable for quality control standards.
No, the Automatic Hatch Angle Measurement measures cross hatch angles directly from live video feeds, eliminating the need for static image capture.
Yes, the system uses non-contact video analysis methods, ensuring that the sample surface remains undamaged during inspection.
Yes, the system supports exporting angle measurement results to common file formats to facilitate documentation and quality control reporting.
It is primarily used in coatings, paints, and surface treatment industries to evaluate adhesion quality and ensure compliance with testing protocols.
Country Of Origin: India
The Cross Hatch Angle Detection feature enhances the measurement application by enabling users to detect and measure cross hatch angles directly on live video feeds without the need to capture images. This feature significantly improves workflow efficiency by allowing the detection and measurement of cross hatch angles directly from live images, supporting quick assessments and informed decision-making
