The Automatic Hatch Angle Measurement system with Cross Hatch Angle Detection revolutionizes surface analysis by enabling real-time measurement of cross hatch angles directly on live video feeds. Designed for industrial and quality control applications, this advanced feature eliminates the need for static image capture, allowing operators to conduct immediate assessments of surface damage, coating adhesion, or material integrity with enhanced accuracy and efficiency. By integrating seamlessly with existing measurement workflows, this tool supports rapid decision-making and improves productivity in manufacturing, automotive, aerospace, and coating inspection sectors. Its intuitive interface and precise detection algorithms ensure that angle measurements are both reliable and repeatable, making it an indispensable asset for professionals requiring meticulous surface evaluation.
Key Features
| Features | Description |
|---|---|
| Real-time Cross Hatch Angle Detection | Enables measurement of cross hatch angles directly on live video feeds without capturing images |
| Enhanced Workflow Efficiency | Speeds up inspection process by eliminating the need for static image processing |
| Accurate Measurement | Provides precise cross hatch angle detection for quality control and surface analysis |
| User-Friendly Interface | Intuitive controls designed for quick adoption by inspectors and engineers |
| Industry Compatibility | Suitable for manufacturing, automotive, aerospace, and coating inspection |
| Integration Capabilities | Can be integrated with existing measurement applications and hardware |
| Improved Decision-Making | Real-time data enables faster and informed assessment of surface conditions |
| Non-Destructive Testing | Measures angles without causing damage to tested surfaces |
| Supports Live Video | Operates directly on video streams for dynamic assessment scenarios |
| Attributes | Description |
|---|---|
| Measurement Mode | Live video feed analysis without image capture |
| Detection Angle Range | Cross hatch angles typically ranging from 0° to 180° |
| Supported Interfaces | Compatible with USB and HDMI video input devices |
| Software Compatibility | Works with RutechSystems AutoAngle measurement software |
| Output Formats | Angle data exportable in CSV and PDF reports |
| Operating Environment | Industrial environments including labs and production floors |
| Installation Requirements | Requires compatible hardware with video capture capabilities |
| User Access | Designed for professional inspectors, engineers, and quality assurance personnel |
| Calibration | Software provides calibration tools for accuracy assurance |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the system measures cross hatch angles directly from live video feeds, allowing accurate angle detection on moving or dynamic surfaces without needing to capture static images.
This system is optimized for industrial applications such as manufacturing quality control, automotive and aerospace surface inspections, and coating adhesion testing, where precise cross hatch angle measurement is critical.
The feature requires compatible video capture hardware, such as USB or HDMI camera interfaces supported by RutechSystems AutoAngle software, to function correctly in live video mode.
Real-time measurement eliminates the time-consuming process of capturing and processing static images, enabling inspectors to perform immediate angle assessments and make faster decisions on the production line.
Yes, the software includes calibration tools designed to maintain high precision in angle detection, ensuring reliable and repeatable results across different measurement sessions.
Country Of Origin: India

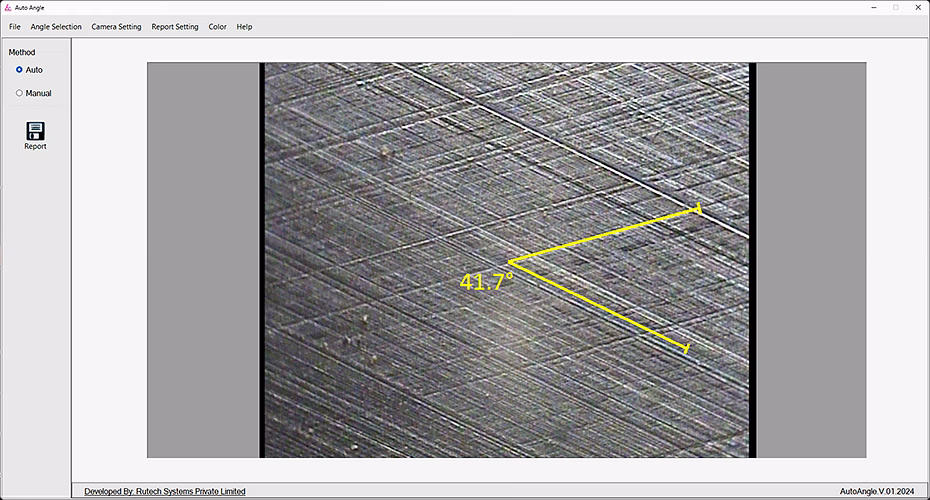

The Cross Hatch Angle Detection feature enhances the measurement application by enabling users to detect and measure cross hatch angles directly on live video feeds without the need to capture images. This feature significantly improves workflow efficiency by allowing the detection and measurement of cross hatch angles directly from live images, supporting quick assessments and informed decision-making.
