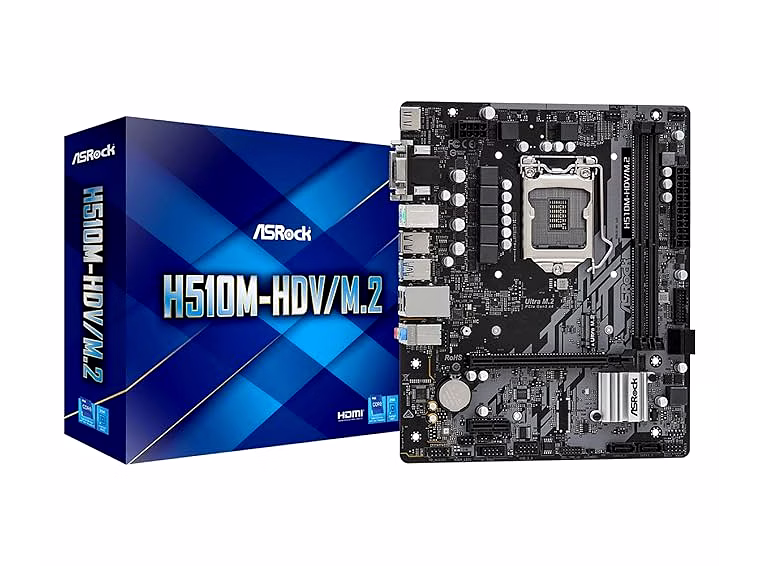

The ASRock H510M-HDV/M.2 is a high-performance MicroATX motherboard designed specifically for Intel's 10th and 11th generation processors featuring the LGA1200 socket. Equipped with the Intel H510 chipset, this motherboard offers robust and stable performance for both home and office computing needs. It supports the latest DDR4 memory technology, ensuring fast and efficient multitasking. The inclusion of an M.2 slot allows for ultra-fast SSD storage installations, improving overall system responsiveness and data transfer speeds. Its MicroATX form factor ensures compatibility with a wide range of PC cases while providing essential connectivity options for modern peripherals. This motherboard is ideal for businesses and professionals looking for a reliable foundation to build or upgrade workstations or PCs with current Intel CPUs.
Key Features
| Features | Description |
|---|---|
| Socket Type | LGA1200 for Intel 10th and 11th Gen CPUs |
| Chipset | Intel H510 |
| Form Factor | MicroATX |
| Memory Support | DDR4 RAM up to specified speed (dual-channel) |
| Storage Options | Supports M.2 SSDs and SATA drives |
| Expansion Slots | PCIe slots for additional cards |
| Connectivity | Multiple USB ports including USB 3.2 Gen1, LAN port for networking |
| Graphics Output | Integrated graphics support via HDMI and D-Sub ports |
| BIOS | UEFI BIOS with user-friendly interface |
| Compatibility | Compatible with Intel 10th and 11th Gen processors |
| Attributes | Description |
|---|---|
| CPU Compatibility | Intel 10th and 11th Generation Core, Pentium Gold, and Celeron processors |
| Memory Slots | 2 x DDR4 DIMM slots |
| Maximum RAM | Up to 64GB DDR4 |
| M.2 Slot | 1 x M.2 connector (Key M) supporting PCIe Gen3 x4 & SATA3 SSDs |
| SATA Ports | 4 x SATA3 6.0 Gb/s connectors |
| USB Ports | 1 x USB 3.2 Gen1 Type-A at back panel, additional USB headers available |
| Audio | Realtek ALC887 7.1 CH HD Audio Codec |
| LAN | Realtek RTL8111H Gigabit LAN |
| Video Outputs | 1 x HDMI, 1 x D-Sub/VGA |
| Power Connectors | 24-pin ATX main power and 8-pin CPU power connector |
| BIOS | UEFI AMI with EZ Mode and Advanced Mode |
| Operating System Support | Windows 10 64-bit and Windows 11 compatible |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the M.2 slot on the ASRock H510M-HDV/M.2 supports both PCIe Gen3 x4 and SATA3 SSDs, allowing for flexible storage options.
Yes, the motherboard supports Intel 10th and 11th generation Core processors, including 11th gen Core i5 CPUs, thanks to the LGA1200 socket and Intel H510 chipset.
This motherboard supports up to 64GB of DDR4 RAM across its two DIMM slots.
The motherboard provides one HDMI port and one D-Sub (VGA) port, supporting integrated graphics output directly from compatible Intel CPUs.
The motherboard includes an AMI UEFI BIOS with EZ Mode and Advanced Mode, and BIOS updates may be provided by ASRock to enhance compatibility, but support for future processors beyond 11th Gen is not guaranteed.
