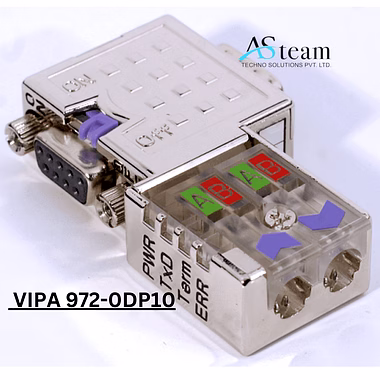

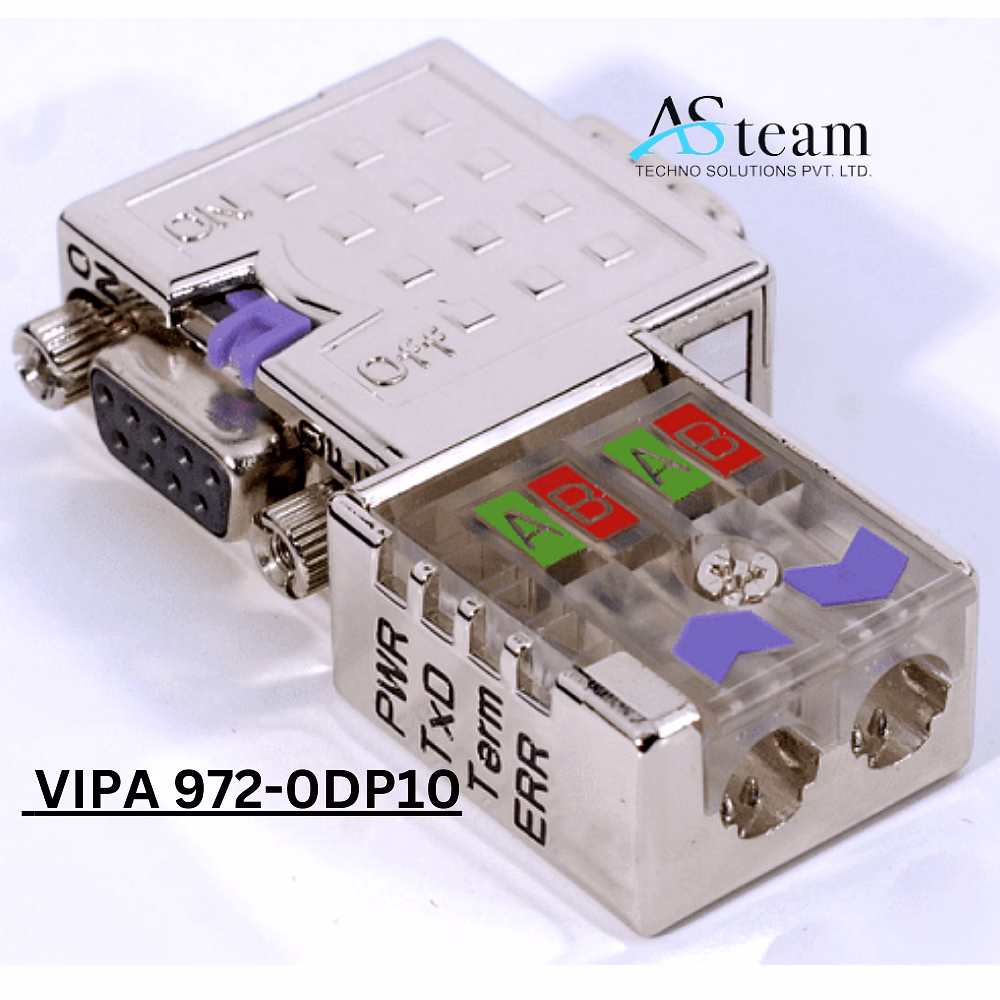

The VIPA 972-0DP10 Profibus Connector is a high-performance, 90-degree angled connector specifically designed for PROFIBUS network installations. Engineered with a robust all-metal housing, this connector ensures minimal electromagnetic interference, thereby enhancing signal integrity in complex industrial automation environments. Equipped with four diagnostic LEDs, the connector facilitates rapid and accurate fault detection, streamlining maintenance and troubleshooting for technicians. The integrated PG port allows seamless connection of a PC or diagnostic tool without interrupting network operations, making it ideal for real-time diagnostics and configuration. This connector includes switchable terminating resistors ensuring proper bus termination and reducing signal reflections, which are critical for reliable communication. Additionally, the EasyConn fast connection feature employs integrated cutting clamps to simplify and speed up cable installation without requiring prior cable stripping, reducing setup time and labor. The 90-degree orientation makes it perfect for tight or constrained spaces, maintaining reliable network connection without cable stress. Overall, the VIPA 972-0DP10 is engineered to provide durable, efficient, and easily maintainable connections for PROFIBUS user nodes or network components in demanding industrial environments.
Key Features
| Features | Description |
|---|---|
| Connector Type | PROFIBUS Connector with 90-degree angled design |
| Housing Material | Rugged all-metal casing for reduced noise interference |
| Diagnostic LEDs | Four LEDs for quick and precise PROFIBUS system status evaluation |
| Integrated PG Port | Allows connection to PC or diagnostic tools without network interruption |
| Terminating Resistor | Switchable built-in terminating resistor for optimal network termination |
| Connection Method | EasyConn fast connection with integrated cutting clamps |
| Cable Orientation | 90-degree angle for space-saving installation |
| Compatibility | Suitable for connecting PROFIBUS user knots and network components |
| Attributes | Description |
|---|---|
| Model Number | 972-0DP10 |
| Manufacturer | VIPA |
| Connector Angle | 90 degrees |
| Diagnostic LEDs | 4 LEDs indicating communication and error status |
| Housing | All metal, rugged construction |
| Terminating Resistor | Switchable On/Off |
| Integrated PG Port | Yes, for online diagnostics and programming |
| Connection Type | EasyConn cutting clamp technology |
| Cable Compatible | Standard PROFIBUS cables |
| Dimensions | Compact design optimized for tight spaces |
| Usage | Connecting PROFIBUS user knots or network components to PROFIBUS line |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The integrated PG port allows users to connect a PC or diagnostic tool directly to the PROFIBUS network without interruption, enabling real-time system monitoring and troubleshooting.
Yes, the terminating resistor is switchable, allowing users to enable or disable it depending on the position of the connector within the PROFIBUS segment to ensure proper bus termination.
EasyConn technology uses integrated cutting clamps, enabling fast and reliable cable termination without the need to strip wires beforehand, significantly reducing installation time and minimizing wiring errors.
The 90-degree angle design is especially beneficial for installations in tight or confined spaces, allowing efficient cable routing while maintaining reliable PROFIBUS network connections.
The four diagnostic LEDs provide clear visual indication of the communication status and errors on the PROFIBUS network, enabling quick fault identification and reducing downtime.
Brand: vipa
Country Of Origin: Thailand
VIPA Profibus Connector with Diagnostic LEDs feature an all-metal-housing and diagnostic LEDs for quick evaluation of Profibus system faults. An integrated PG port is also available to allow convenient connection to a PC or diagnostic tool.
General information about VIPA 972-0DP10 Profibus Connector:
This VIPA Profibus connector connects PROFIBUS user knots or complete PROFIBUS net components to the PROFIBUS line. Each connector has switchable terminating resistors. Dependent of the type of connector, a PD/diagnosis socket as well as a controller with 4 LED indicators are additionally integrated.
How to connect the PROFIBUS cable to VIPA 972-0DP10
Features:
