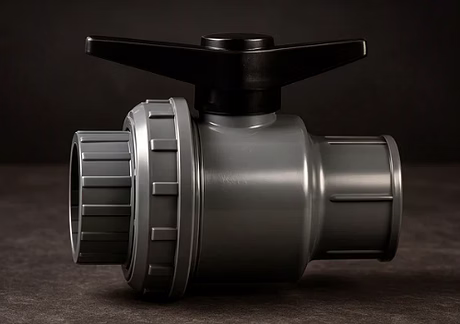

The 63MM Single Union Ball Valve by Jain Irrigation is engineered for precise flow control in agricultural and domestic water supply systems. Made from high-quality rigid uPVC, this valve offers superior corrosion and chemical resistance, ensuring durability in harsh outdoor environments. The single union design enables easy installation and removal without the need to cut the pipeline, streamlining maintenance tasks. Featuring chemically resistant nitrile rubber O-rings and an option between economical HDPE or premium PTFE seat rings, the valve guarantees a leak-proof and reliable seal. Its PN10 pressure rating suits irrigation pipelines up to 10 kg/cm², making it ideal for drip, sprinkler irrigation, and general farm water distribution. This valve supports multiple connection types, including threaded, solvent weld, and compression joints, allowing compatibility with various piping systems.
Key Features
| Features | Description |
|---|---|
| Valve Size | 63 mm nominal diameter (~2 inches) |
| Design | Single Union Ball Valve for easy installation and maintenance |
| Material | Rigid unplasticized PVC (uPVC) for chemical and corrosion resistance |
| Seals | Chemical resistant nitrile rubber O-rings for leak-proof operation |
| Seat Ring Options | Economical HDPE (standard) or Teflon (PTFE) for enhanced leak resistance |
| Ball Segment | Specially designed PVC ball ensuring effective sealing |
| Connection Types | Threaded, solvent weld, compression joint, or PE pipe end variants |
| Operating Pressure | PN10 rating (approx. 10 kg/cm²) |
| Applications | Agricultural irrigation, domestic water supply, drip and sprinkler systems |
| Maintenance | Single union design allows easy valve removal without pipeline cutting |
| Attributes | Description |
|---|---|
| Nominal Diameter | 63 mm (~2 inches) |
| Valve Type | Single Union Ball Valve |
| Material | Rigid uPVC |
| Sealing Material | Nitrile Rubber O-rings |
| Seat Ring Options | HDPE (standard), PTFE (optional) |
| Operating Pressure | PN10 (10 kg/cm² approx.) |
| Connection Options | Threaded, Solvent Weld, Compression Joint, PE Pipe End |
| Application | Agricultural and Domestic Water Pipelines |
| MOQ | 1 Piece |
| Unit of Measurement | Piece |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The valve offers two seat ring options: an economical HDPE standard seat and a premium Teflon (PTFE) seat for enhanced leak resistance.
Yes, it is made from rigid uPVC which is corrosion and chemical resistant, making it ideal for long-term outdoor use under agricultural conditions.
Yes, it supports various connection types including threaded, solvent weld, compression joints, and PE pipe ends to suit different piping requirements.
The valve is rated PN10, which corresponds to an operating pressure of approximately 10 kg/cm².
The single union design incorporates a union nut on one side, allowing the valve to be easily removed or installed without cutting the pipeline, simplifying maintenance.
Country Of Origin: India
Size: 63 mm (nominal diameter ~2″)
Design: Single Union (SU) ball valve — one side has a union nut for easier installation/disassembly without cutting pipe.
Material: High-performance rigid uPVC (unplasticized PVC) for durability, chemical resistance and corrosion resistance.
Seals/O-rings: Chemical resistant nitrile rubber O-rings to ensure leak-proof operation.

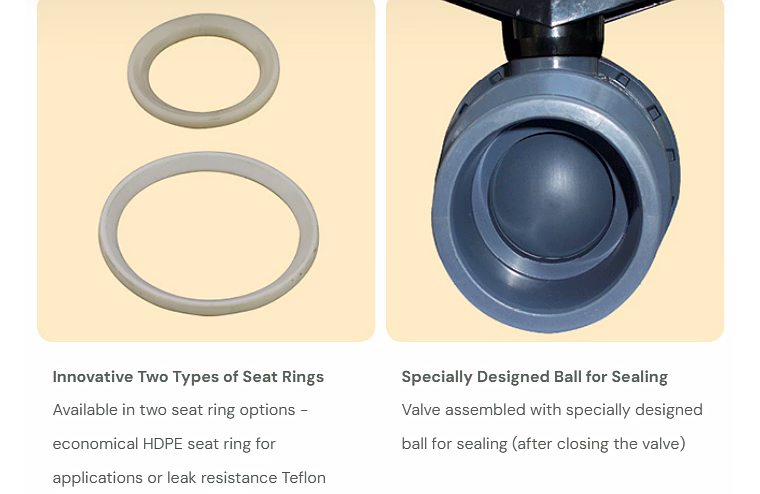

Seat Ring Options:
• Economical HDPE (standard)
• Teflon (PTFE) for better leak resistance.
Ball Segment: Specially designed PVC ball for effective sealing after closing.
Connection Types Available: Threaded, solvent weld, compression joint or PE pipe end variants (depending on application).
Operating Pressure: Typically PN10 rating for 40 – 63 mm sizes (approx. 10 kg/cm²).
✔ Flow control in agricultural irrigation systems
✔ Water distribution lines in farms
✔ Domestic and water supply pipelines
✔ Drip or sprinkler irrigation connections
✔ Where easy shut-off and maintenance are needed without breaking the pipeline
