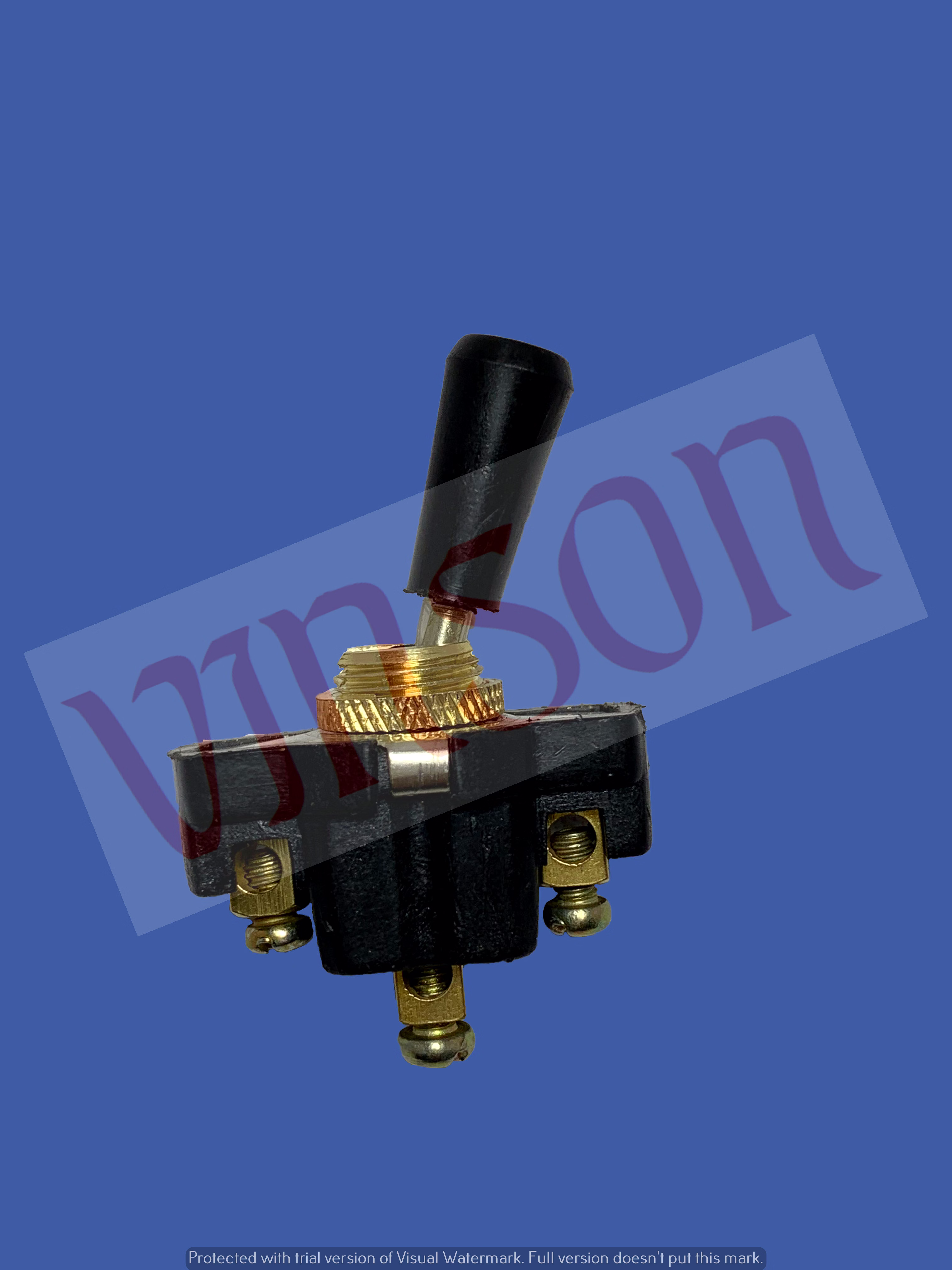

The 3-Way Toggle Switch (ON-OFF-ON Type) (VIN-00204) is a precision-engineered manual electrical control switch designed to meet the demanding requirements of automotive, industrial, and commercial applications. It enables seamless switching between two distinct circuits with a neutral OFF position, allowing enhanced control for dual-function operations such as headlamp high/low beam selection, directional controls, and accessory switching. Crafted with a durable plastic body, brass screw terminals, and a metal threaded mounting stem, this toggle switch guarantees reliability, long-lasting performance, and ease of installation. Its insulated toggle lever ensures safe manual operation, delivering positive tactile feedback across all three switch positions. Ideal for vehicle electricians, OEMs, aftermarket suppliers, and industrial equipment manufacturers, the VIN-00204 toggle switch simplifies circuit management while ensuring robust performance in harsh environments and continuous usage scenarios.
Key Features
| Features | Description |
|---|---|
| Switch Type | 3-Way Toggle (ON-OFF-ON) |
| Operating Positions | Circuit A ON - OFF Neutral - Circuit B ON |
| Lever | Insulated toggle lever for safe manual operation |
| Body Material | High-strength molded plastic housing |
| Terminal Material | Brass screw terminals for secure wiring |
| Mounting | Threaded metal stem with lock nut for panel installation |
| Contact Type | Mechanical toggle contact providing stable switching |
| Installation Method | Panel mount with screw terminal wiring |
| Durability | Compact design suitable for continuous industrial and automotive use |
| Insulation | Good insulation to prevent short circuits |
| Attributes | Description |
|---|---|
| Switch Type | Toggle Switch |
| Function | 3-Way (ON-OFF-ON) |
| Number of Terminals | 3 |
| Mounting Type | Panel mount |
| Terminal Type | Screw terminals |
| Body Material | Insulated plastic |
| Contact Material | Brass |
| Operation | Manual lever |
| Typical Applications | Automotive lighting control, directional control, accessory switching, industrial equipment control |
| Electrical Ratings | Variable depending on application; confirm voltage and current compatibility |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the 3-Way Toggle Switch (ON-OFF-ON) VIN-00204 is specifically designed to switch between two separate circuits with a neutral OFF position in the center, enabling dual circuit control.
The switch features a threaded metal stem with a lock nut, enabling secure and easy panel or dashboard mounting.
Yes, the toggle lever is insulated to provide safe manual operation, reducing risk of electrical shock during handling.
The terminals are made of brass screw type, ensuring excellent electrical contact and corrosion resistance, while the body is made from high-strength molded insulating plastic for durability.
Yes, the switch's compact and robust design coupled with quality materials makes it well-suited for continuous use in automotive and industrial applications.
Country Of Origin: India
This 3-Way Toggle Switch is a robust manual electrical control switch designed to provide three distinct operating positions through a single lever mechanism. The switch allows current flow in two alternate circuits with a neutral OFF position in between, making it ideal for directional control, mode selection, or dual-function electrical operations.
The switch features a durable plastic body, brass terminals, and a metal-threaded mounting stem, ensuring reliable electrical contact and long service life under automotive and industrial operating conditions.
Operating Mechanism
The lever moves smoothly between all three positions, providing positive tactile feedback to the operator.
Construction & Design
Key Features
Typical Applications
Automotive & Commercial Vehicles
Three-Wheelers & Tractors
Industrial & General Electrical Use
Technical Specifications (Typical)
Parameter Description
Switch Type Toggle Switch
Function 3-Way (ON-OFF-ON)
Number of Terminals 3
Mounting Type Panel mount
Terminal Type Screw terminals
Body Material Insulated plastic
Contact Material Brass
Operation Manual lever
(Electrical ratings may vary depending on application; confirm current and voltage compatibility before use.)
Performance Benefits
Ideal For
