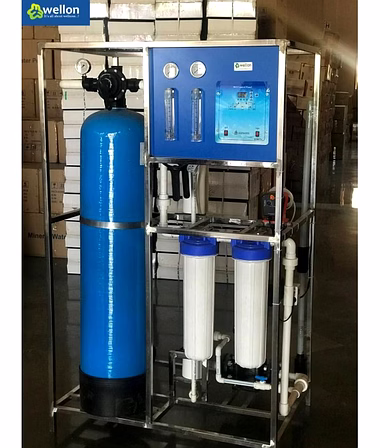

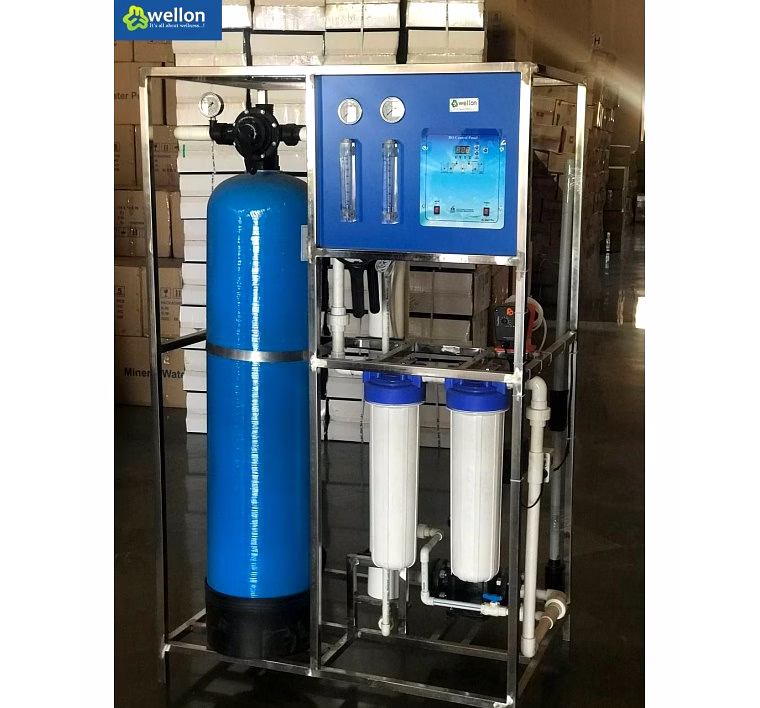

The WELLON 250 LPH RO SYSTEM is a robust and fully automatic water purification solution designed for small to medium-scale water supply needs. Employing advanced Reverse Osmosis (RO) technology, this system delivers a high filtration capacity of 250 liters per hour (LPH), ensuring the removal of dissolved solids, heavy metals, sediments, and microbial contaminants for safe drinking water. Equipped with a stainless steel output water storage tank and a comprehensive multi-stage filtration setup—including a sedimentation tank, sand filter with duel media, activated carbon filter, and UV sterilization—the system guarantees superior water quality. The system operates automatically with an auto cut-off feature to provide energy efficiency and operational safety. Its floor-mounted design incorporates quality components such as the Wilo/CRI 0.50 HP raw water pump, LUBI 2/11 LCR high-pressure pump, stainless steel skid (SS 202), and smart panel controls for seamless operation. This system is ideal for applications in residential communities, educational institutions, small industries, and remote areas, ensuring continuous access to purified water with minimal maintenance requirements.
Key Features
| Features | Description |
|---|---|
| Filtration Capacity | 250 Liters Per Hour |
| Water Purification Technology | Reverse Osmosis (RO) |
| System Operation | Fully Automatic with Auto Cut Off |
| Output Water Storage Tank | Stainless Steel |
| Pre-Treatment Filters | Sedimentation Tank, Sand Filter with Duel Media, Activated Carbon Filter |
| UV Sterilization | Included for microbial disinfection |
| Pump Type | Wilo/CRI 0.50 HP Raw Pump, LUBI 2/11 LCR High-Pressure Pump |
| Filtration Porosity | 10 Micron Particulate Filter |
| Installation Type | Floor Mounted |
| Control Panel | Smart 1/1 for automatic monitoring |
| Pressure Gauge | 21 KG, 2 pieces |
| Rota Meter | 600 LPH, 2 pieces |
| System Skid | Stainless Steel 202 |
| Attributes | Description |
|---|---|
| Raw Water Pump | Wilo/CRI 0.50 HP |
| High Pressure Pump | LUBI 2/11 LCR |
| Filtration Media in Sand Filter | 1354 - 1 pcs Duel Media |
| Membrane Cartridge Filter (MCF) | 20 inches x 4.5 inches, 1 pcs |
| Manual/Automatic Valve (MPV) | 25 NB TMF |
| System Dimensions and Skid | SS 202 |
| Sample Valve (SV) | 1 inch PVC |
| Low Pressure (LP) and High Pressure (HP) Sensors | LPS - 1 pcs |
| Gravity Flotation Device (Floty) | Available if required |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The system can filter up to 250 liters per hour of raw water through advanced multi-stage purification technology.
Yes, the system includes a stainless steel output water storage tank designed to safely store purified water.
Yes, the WELLON 250 LPH RO SYSTEM features a fully automatic operation with an auto cut-off functionality to optimize performance and energy use.
Pre-treatment includes a sedimentation tank for larger particles, sand filter with duel media for suspended solids, and an activated carbon filter to remove chlorine and organic compounds.
UV sterilization is incorporated in the post-treatment phase to effectively kill bacteria and viruses, ensuring safe drinking water.
The system is floor mounted, making it suitable for various industrial and commercial installation environments.
The system uses reliable Wilo/CRI 0.50 HP raw water pumps and LUBI 2/11 LCR high-pressure pumps to maintain consistent water flow and pressure.
Country Of Origin: India
WELLON 250 LPH RO SYSTEM
Type of Water Purification Technology : RO
Operations: Fully Automatic with auto cut off
Filtration Capacity : 250 LPH
Type of out put water Storage Tank: Stainless Steel
Particulate Filter Porosity: 10 Micro
Installation Type : Floor Mounted
WELLON 250 LPH RO SYSTEM
Raw: Wilo/CRI 0.50 HP
HPP : LUBI 2/11 LCR
Skid & Dimension : SS 202
Sand Filter & Media : 1354 - 1 Pcs Duel Media
Carbone Filter & Media : -
MPV : 25 NB TMF : 25NB TMF
Panel : Samrt 1/1
Rota Meter : 600 LPH :2 PCS
MCF : 20" * 4.5" 1 PCS
Pressure Gauge : 21 KG 2 PCS
Floty : If Required
SV : 1" PVC
LP & HP : LPS - 1 PCS
Components
Pre-Treatment Unit:
Sedimentation Tank: Removes larger particles and sediments from raw water.
Coagulation and Flocculation: Chemicals (like alum) are added to clump smaller particles together for easier removal.
Filtration Unit:
Sand Filter: Further removes suspended solids and turbidity.
Activated Carbon Filter: Eliminates chlorine, bad odors, and organic compounds.
Reverse Osmosis (RO) System:
Membrane filtration that removes dissolved solids, heavy metals, and contaminants from water.
Post-Treatment Unit:
UV Sterilization: Uses ultraviolet light to kill bacteria and viruses.
Mineral Addition: Restores essential minerals for taste and health.
Storage Tank:
Stores purified water for distribution.
Distribution System:
Pumps and piping to deliver water to end-users.
Key Features
Automation: Many systems include automated controls for monitoring and managing the purification process.
Energy Efficiency: Designed to minimize energy consumption while maximizing output.
Compact Design: Space-efficient, suitable for various installations.
Advantages
High Purity: Effectively removes contaminants, ensuring safe drinking water.
Cost-Effective: Economically viable for small to medium-scale water supply needs.
Sustainability: Can be designed to work with renewable energy sources.
Maintenance
Regular maintenance is crucial for optimal performance. This includes:
Routine cleaning of filters and membranes.
Periodic testing of water quality.
Monitoring for any leaks or operational issues.
Applications
Residential communities
Educational institutions
Small industries and factories
Remote locations with limited water access
