The WELLON 120 LPH RO System is a compact and efficient water purification plant specifically designed to provide clean and safe drinking water at a rate of 120 liters per hour, suitable for small-scale applications such as residential homes, small offices, clinics, and community centers. Featuring a durable SS 202 skid and dimension structure, the system incorporates a high-performance ALGO 0.50 HP raw water pump and ALGO JARO 100.1 HP high-pressure pump for optimal water flow and pressure. The pre-treatment stage includes a dual Big Blue Jumbo 20-inch sand filter housing equipped with effective media for suspended solids removal and turbidity reduction, along with a carbon filter using CTO PP 20"*4.5" cartridges to eliminate chlorine, odors, and organic compounds. The Reverse Osmosis system employs semi-permeable membranes ensuring removal of dissolved solids, salts, and contaminants, supported by precision instruments like 2 rotameters (200 LPH), dual pressure gauges rated at 21 KG, and high-quality MPV and SV valves for efficient operation. The control panel is a deluxe model (1/1), user-friendly and designed for easy monitoring and management of the purification process. Additional features like optional floaty sensors and PVC piping make installation and maintenance straightforward. This RO system assures energy efficiency without compromising purification quality, providing high-purity output with easy maintenance — including periodic filter and membrane replacement and water quality testing. It is ideal for ensuring safe drinking water in homes, small offices, health clinics, and educational institutions, meeting the essential standards for compact, effective, and reliable water purification.
Key Features
| Features | Description |
|---|---|
| Capacity | 120 liters per hour |
| Raw Water Pump | ALGO 0.50 HP |
| High Pressure Pump | ALGO JARO 100.1 HP |
| Skid Material | Stainless Steel 202 |
| Sand Filter Housing | Big Blue Jumbo, 2 pieces |
| Carbon Filter Cartridge | PP 20" x 4.5" CTO |
| Control Panel | Deluxe 1/1 with monitoring features |
| Rotameter | 2 pieces, 200 LPH |
| Pressure Gauge | 2 pieces, 21 KG |
| Solenoid Valve (SV) | 1 inch PVC |
| Maintenance Features | Easy access for filter and membrane replacement |
| Attributes | Description |
|---|---|
| System Type | Reverse Osmosis (RO) Water Purifier Plant |
| Raw Water Pump Model | ALGO 0.50 HP |
| High Pressure Pump Model | ALGO JARO 100.1 HP |
| Skid & Frame Material | SS 202 |
| Sand Filter Specification | Big Blue Jumbo Housing - 2 pcs |
| Carbon Filter Cartridge | PP 20" x 4.5" CTO |
| Panel Type | Deluxe 1/1 Control Panel |
| Rotameter Capacity | 200 LPH, 2 pcs |
| Pressure Gauge | 21 KG, 2 pcs |
| Solenoid Valve Size | 1 inch PVC |
| Dimensions | Compact for limited space installations |
| Water Output Capacity | 120 liters per hour |
| Floaty Sensor | Available if required |
| LP & HP Valves | Not included |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The skid and frame are constructed from Stainless Steel 202 (SS 202), ensuring durability and corrosion resistance suitable for water purification environments.
Yes, the system includes pre-treatment components such as dual Big Blue Jumbo sand filters and CTO carbon filters that efficiently remove suspended solids, chlorine, and organic impurities, making it adaptable to different raw water qualities.
The current model does not include Multi-Port Valves (MPV) or Low-Pressure (LP) & High-Pressure (HP) valves; however, it features solenoid valves and manual controls designed for straightforward operation.
The system uses an ALGO 0.50 HP pump for raw water intake and an ALGO JARO 100.1 HP high-pressure pump to supply the RO membrane, ensuring optimal pressure and flow for efficient purification.
Yes, the system comes with a deluxe 1/1 control panel that includes monitoring features such as flow rate measurement via two 200 LPH rotameters and pressure gauges for real-time system performance monitoring.
Regular cleaning and timely replacement of filters and RO membranes, periodic water quality testing, and inspection of pumps and gauges for wear are recommended to maintain optimal system performance.
Country Of Origin: India

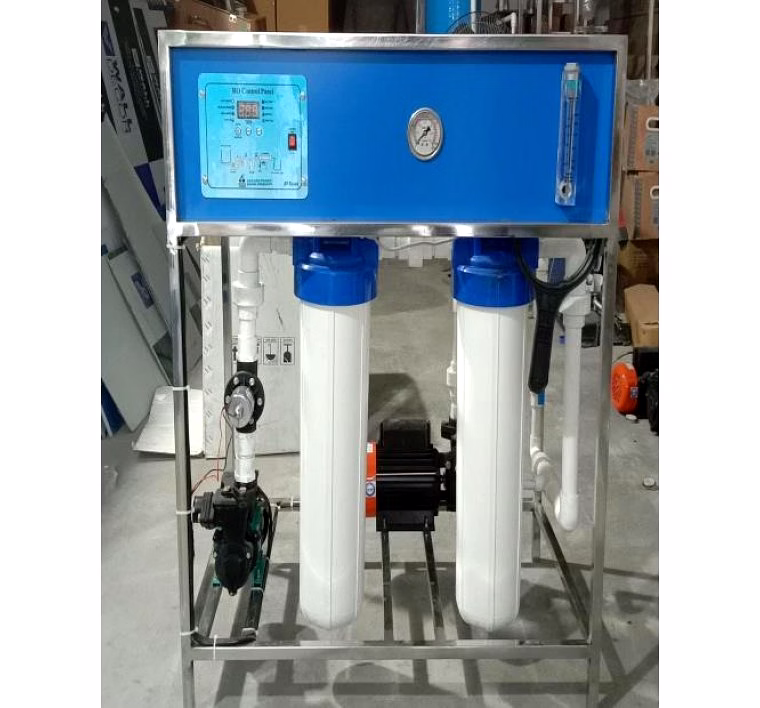

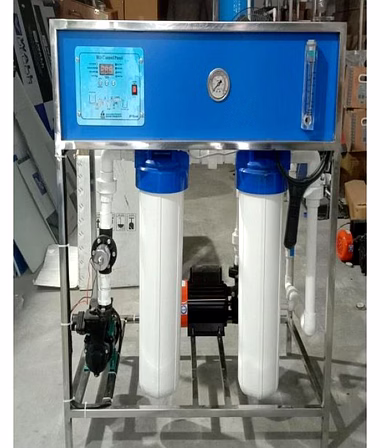

WELLON 120 LPH RO SYSTEM
Raw: ALGO 0.50 HP
HPP : ALGO JARO 100.1 HP
Skid & Dimension : SS 202
Sand Filter & Media : Filter Housing Big Blue Jumbo - 2 Pcs
Carbone Filter & Media : PP 20" * 4.5" / CTO
MPV : NO
Panel : Delux 1/1
Rota Meter : 200 :PH. 2 PCS
MCF : CTO 20"
Pressure Gauge : 21 KG 2 PCS
Floty : If Required
SV : 1" PVC
LP & HP : NO
Overview
A 120 LPH water purifier plant is designed for smaller-scale operations, providing clean and safe drinking water at a rate of 120 liters per hour. This capacity is suitable for homes, small offices, clinics, and community centers.
Components
Pre-Treatment Unit:
Sedimentation Tank: Settles out larger particles and debris from the incoming raw water.
Coagulation and Flocculation: Chemicals are added to aid in the agglomeration of smaller particles.
Filtration Unit:
Sand Filter: Removes suspended solids and reduces turbidity.
Activated Carbon Filter: Eliminates chlorine, unpleasant odors, and some organic compounds.
Reverse Osmosis (RO) System:
A key component that uses a semi-permeable membrane to remove dissolved solids, salts, and contaminants.
Post-Treatment Unit:
UV Sterilization: Uses ultraviolet light to disinfect the water by killing bacteria and viruses.
Mineral Addition: Reintroduces essential minerals for better taste and health benefits.
Storage Tank:
A reservoir for storing the purified water before distribution.
Distribution System:
Includes pumps and piping for effective water delivery to users.
Key Features
Compact Design: Space-efficient, making it suitable for limited installation areas.
User-Friendly Control Panel: Often includes monitoring systems for flow rate and water quality.
Energy Efficient: Designed to minimize electricity usage while maintaining high purification standards.
Advantages
High Purity: Effectively removes harmful contaminants, ensuring safe drinking water.
Cost-Effective: Ideal for small-scale needs, making it an economical solution.
Easy Maintenance: Components are designed for easy access and regular maintenance.
Maintenance
To ensure the system operates efficiently, regular maintenance should include:
Cleaning and replacing filters and membranes as needed.
Periodic water quality testing.
Inspecting for any wear and tear or leaks.
Applications
Residential Homes: For families needing reliable drinking water.
Small Offices: Providing employees with safe drinking water.
Health Clinics: Ensuring access to purified water for patients and staff.
Educational Institutions: Supplying clean water in schools or colleges.
