The 200W Vertical Axis Wind Turbine Test Bench by Atto Labware India is a state-of-the-art educational and research tool specifically engineered for renewable energy laboratories, technical institutes, and R&D centers. This advanced turbine model features a vertical axis design with three nylon blades and an aluminum alloy body, optimized for efficient wind-to-electricity conversion even at low wind speeds starting from 2 m/s. Its omnidirectional 360° wind capture ability enables comprehensive testing regardless of wind direction. Equipped with a three-phase permanent magnet suspended generator (NdFeB magnetic steel), the turbine delivers a rated power of 200W and supports both 12V and 24V outputs controlled via an integrated electromagnetic braking system for precise speed regulation. The test bench includes critical instrumentation such as voltmeter, ammeter, DC/AC load banks, and a charge controller to allow detailed performance analysis, including startup dynamics, efficiency curves, and electromagnetic brake function. Additionally, the system is paired with an axial fan controlled by a variable frequency drive (VFD) for wind simulation and customizable data logging software, making it ideal for hands-on education, experimental research, and hybrid energy system applications. The robust protective enclosure ensures durability and safety during operation.
Key Features
| Features | Description |
|---|---|
| Rated Power | 200 Watts |
| Start-Up Wind Speed | 2 m/s |
| Wind Capture | Omnidirectional 360° automatic windward adjustment |
| Generator Type | 3-Phase AC Permanent Magnet Suspended NdFeB |
| Blade Material | Nylon (3 blades) |
| Fuselage Material | Aluminum Alloy |
| Control System | Electromagnetic brakes with integrated speed regulation |
| Wind Simulation | Axial Fan with Variable Frequency Drive for controlled wind speeds |
| Instrumentation Included | Voltmeter, Ammeter, DC/AC Load Bank, Charge Controller |
| Protection Rating | IP54 |
| Dimensions | 860 × 380 × 200 mm |
| Weight | Gross 9.5 kg, Net 10.5 kg |
| Optional Software | Performance monitoring, data logging, PC or LabVIEW interface |
| Attributes | Description |
|---|---|
| Rated Voltage | 12V / 24V |
| Rated Wind Speed | 12 m/s |
| Survival Wind Speed | 50 m/s |
| Wind Wheel Diameter | 0.55 m |
| Wind Wheel Height | 0.75 m |
| Number of Blades | 3 |
| Generator Magnet Steel | NdFeB Permanent Magnet |
| Installation Flange | DN20 |
| Degree of Protection | IP54 |
| System Safety | Protective enclosure with safety guard |
| Load Types Supported | DC/AC Loads |
| Electromagnetic Brakes | Included for speed control and safety |
| Wind Regulation Feature | 360° automatic windward adjustment |
| Controlled Wind Simulation | Axial Fan with VFD |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The turbine supports integration with DC/AC loads, charge controllers, and hybrid system setups, enabling experimental analysis of combined renewable energy sources and power management strategies.
The electromagnetic brakes allow precise speed regulation and controlled load testing, preventing overspeed conditions and ensuring operator safety during experimental runs.
Yes, the integrated axial fan controlled via a variable frequency drive (VFD) enables precise wind speed simulation from start-up speed (2 m/s) up to rated speeds (12 m/s), allowing detailed performance analysis under variable conditions.
An optional software package is available that interfaces via PC or LabVIEW for real-time performance monitoring, data logging, and comprehensive analysis.
The turbine blades are made of durable nylon, while the fuselage is constructed from aluminum alloy, offering a lightweight yet robust structure resistant to environmental factors and mechanical wear.
This feature ensures that the turbine blades automatically orient to face the wind from any direction, simulating real-world conditions and optimizing energy capture without manual repositioning.
Country Of Origin: India
The 200W Vertical Axis Wind Turbine Test Bench, developed and supplied by Atto Labware India, is an advanced educational and research trainer designed for renewable energy labs, technical institutes, and R&D centers. With a low start-up wind speed of 2 m/s and omnidirectional 360° wind capture, it efficiently demonstrates wind-to-electricity conversion. Equipped with a three-phase permanent magnet generator, electromagnetic brakes, and an integrated control system, this turbine facilitates comprehensive performance analysis under varying load and wind conditions. The system is ideal for teaching, experimental, and hybrid energy applications.

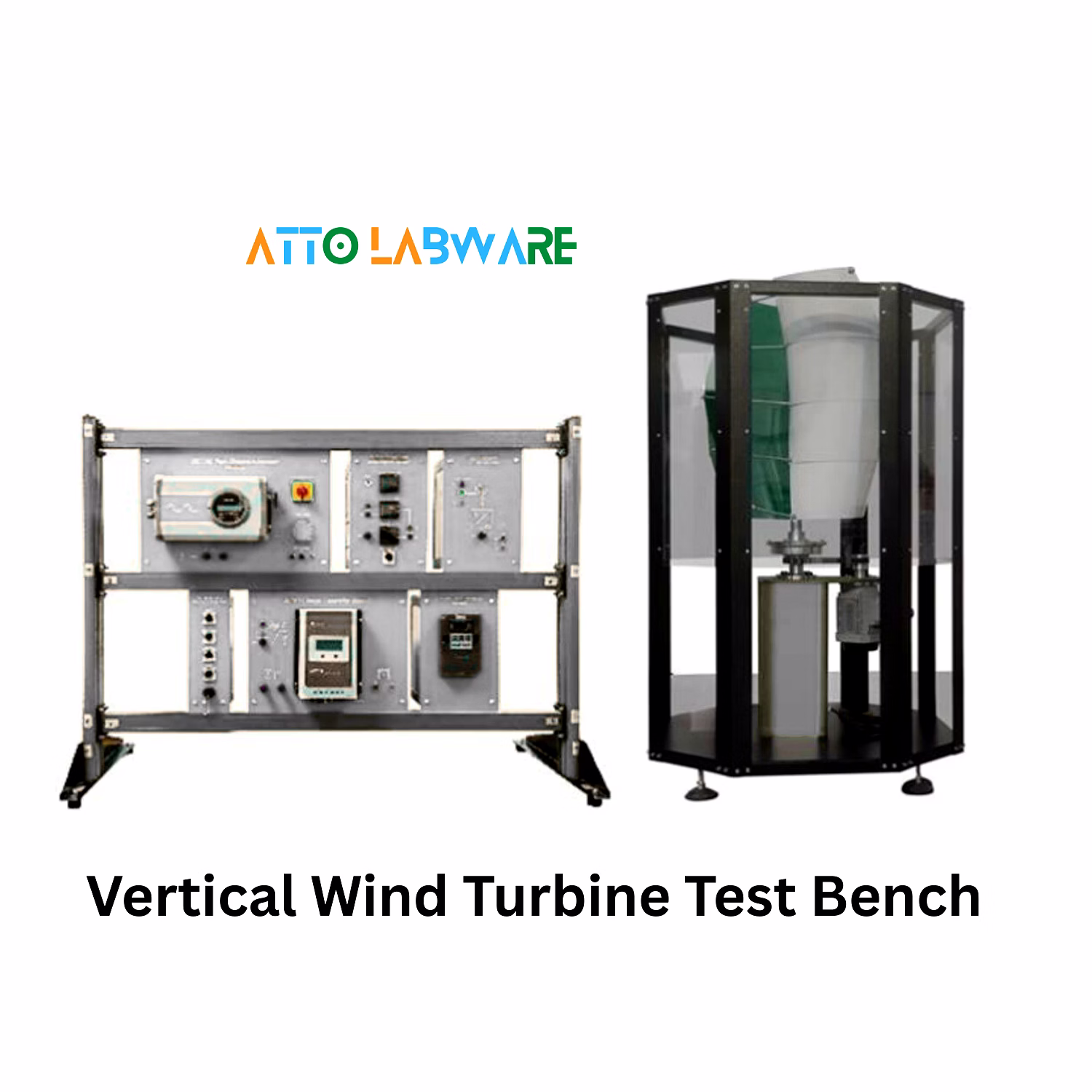

200W Vertical Axis Wind Turbine Test Bench
The 200W Vertical Axis Wind Turbine Test Bench, developed and supplied by Atto Labware India, is an advanced educational and research trainer designed for renewable energy labs, technical institutes, and R&D centers. With a low start-up wind speed of 2 m/s and omnidirectional 360° wind capture, it efficiently demonstrates wind-to-electricity conversion. Equipped with a three-phase permanent magnet generator, electromagnetic brakes, and an integrated control system, this turbine facilitates comprehensive performance analysis under varying load and wind conditions. The system is ideal for teaching, experimental, and hybrid energy applications.
Educational Objectives
Demonstrate principles of vertical axis wind energy conversion and power generation.
Study the effect of wind speed on turbine output and efficiency.
Analyze generator behavior, electromagnetic braking, and voltage regulation.
Explore integration with DC/AC loads, charge controllers, and hybrid systems.
Enable hands-on experimentation with turbine performance, speed regulation, and system safety.
Performance Measurement
Measurement of output voltage and current under different wind conditions.
Evaluation of start-up wind speed, rated speed, and survival speed.
Analysis of power generation efficiency and turbine performance curves.
Observation of electromagnetic brake operation and 360° windward adjustment.
Data collection via optional software for performance monitoring and reporting.
Panel & Instruments / Components
Vertical Axis Wind Turbine Unit (3 Nylon Blades, Aluminum Alloy Body)
Test Bench / Mounting Stand
Axial Fan (for controlled wind simulation)
VFD (Variable Frequency Drive) (for axial fan speed control)
Charge Controller (DC regulation and system protection)
Volt Meter (real-time voltage monitoring)
Ammeter (current measurement)
DC / AC Load Bank (performance testing under varying loads)
Output Terminals & Cabling Panel
Safety Guard / Protective Enclosure
⚙ Specifications
Specification Value
Rated Power 200W
Rated Voltage 12V / 24V
With Controller Yes
Start Up Wind Speed 2 m/s
Rated Wind Speed 12 m/s
Survival Wind Speed 50 m/s
Wind Wheel Diameter/Height 0.55m / 0.75m
Number of Blades 3
Blades Material Nylon
Fuselage Material Aluminum Alloy
Magnetic Steel NdFeB
Generator Type 3-Phase AC Permanent Magnet (Suspended)
Controller System Electromagnetic Brakes
Speed Regulation 360° Automatic Windward Adjustment
Installation Flange DN20
Degree of Protection IP54
Gross Weight 9.5 kg
Top Net Weight 10.5 kg
Dimensions (L×W×H) 860 × 380 × 200 mm
Optional Features & Customization
Optional software package for data logging, performance monitoring, and analysis.
Customized specifications and instrumentation available on request.
PC interface or LabVIEW integration for advanced research applications.
