P.S INTERNATIONAL STEEL AND METALS

Hot Rolled Coils and Sheets - Carbon Steel Applications: 1) Constructions 2) Pipes & Tubes 3) Truck Frames 4) Automotive 5) Doors & Shelving 6) Railroad tracks 7) Railroad car parts Thickness(mm) 1.20 to 25.4 Width(mm) 3000 Max Sheet Length As per Customer requirement Coil Weight 30 MT max Grade O, D, DD, EDD, IF, FE 410, SS400, Pipe Grade JISG 3132 SPHT , SAE 1006 SAE 1008 Specifications IS 2062, IS 1079, IS 10748, IS 5986 & Equivalent International Standards, ASTM A 36

M.S Plates and Sheets Applications: Railway wagons Defence equipment Oil and gas pipelines Bridges and flyovers Pressure vessels & boilers Earthmoving equipment Shipbuilding Windmills General engineering and structural fabrication Specifications: Thickness(mm) 5.00-1500 Width(mm) 5000 Max Length As per Customer requirement

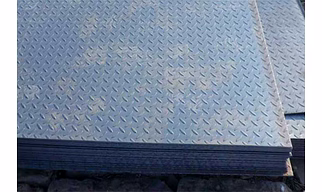

Applications: Constructions Automotive Machinery Transportation Ship Building Industry Decorative Architectural Factory, Industry and Workshops for Anti-slip floorings Product Specifications: Thickness(mm)- 1.20 to 10.00 Width(mm) - 1250 Max Sheet Length - As per Customer requirement Type - Chequered Plates are supplied with tear drop and diamond pattern

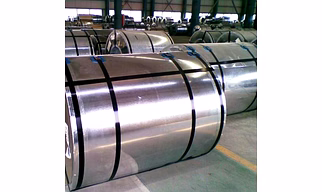

Applications: Automotive Industry Sheet Metals Pipes and Tubes Engineering and Industrial parts White Goods Product Specifications: Thickness(mm) - 1.60-6.00 Width(mm) - 2000 Max Length - As per Customer requirement Coil Weight - 25 MT max Grades - O,D,DD,EDD,IF Specifications - Conventional/Electrostatic method of oiling

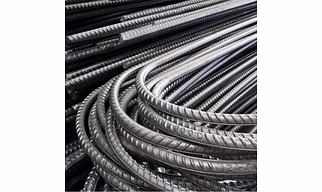

Applications: Bridges Flyovers Machinery Dams High Rise Building Industrial Structures Concrete Roads Underground Structures General Purpose Concrete Re- Enforcement Structures Product Specifications: Size - 5.5 - 60 mm length - 12 meter. Grades: FE 500, FE 500D, FE 600 Standards: IS -1786, ASTM A 615 Grade 60, JIS G 3112-2004 etc.

Applications: Construction & Infrastructures- Steel framing, False ceiling, Sandwich panels, ducting, decking, roofing, purlin, HVAC applications. White Goods -Refrigerators, deeps freezers, washing machines, air coolers. Automotive- Auto internal components, Bus bodies building. Containers-Grain silos, trunk, drum & barrels, crash guards /handrails, buckets, gardening cans, milk containers, animal feeding pans, fish pan etc Product Specifications: Specifications- Galvanized as per IS 277 or equivalent grades like ASTM A 653, EN10327 Thickness (mm)- 0.10 to 3.00 mm (Galvanized) Width (mm)- 30 mm to 1420 mm Base metal-Cold rolled steel as per IS 513 Spangles- Regular/ Minimized /Suppressed / Zero (Skin pass). Leveling- With or without tension leveling Passivation- Chromated (Trivalent / Hexavalent) Oiling- Non oiled, oiled 100 -450 GSM Yield Strength (MPA)- 240, 360, 550 MPa Temper- Extra soft, Semi Hard, Full hard Hardness (HRB)- 35 TO 90 Grades- CQ, DQ, DDQ, EDDQ, HSLA. Coil Weight- 8(Max) Winding -Controlled /staggered (+/-5 to +/- 15 mm)

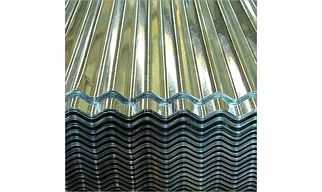

Product Specifications- Thickness(mm)-0.10 to 0.80 Width(mm)- 720, 740, 760, 780, 800, 840, 910, 1100, 1220. Length(mm) -1830, 2135, 2440, 2745, 3050, 3660, 4270, 4880 or as per requirement. Grade -JIS G 3302- SGCH, SGCC, IS 277:2003 Supply Width Covered Width Pitch Crest Height /Crest Width 960 mm (+/- 10 mm) 932 mm (+/- 5 mm) 230 mm (+/- 2 mm) 51 mm (+/- 2 mm) 51 mm (+/- 2 mm)

Applications: Construction & Infrastructures- Steel framing, False ceiling, Sandwich panels, ducting, decking, roofing, purlin, HVAC applications. White Goods -Refrigerators, deeps freezers, washing machines, air coolers. Automotive -Auto internal components, Bus bodies building. Containers -Grain silos, trunk, drum & barrels, crash guards /handrails, buckets, gardening cans, milk containers, animal feeding pans, fish pan etc Product Specifications: Thickness(mm) -0.10 to 3.00 mm Width(mm) -760, 820, 900, 1000, 1220, 1320, 1420 or as per customize width. Length -1830, 2440, 2500 (or as per requirement) Zinc Coating (GSM) -80,90,120,150,180,200,275, 350, 450 Temper -Soft, Extra soft & Hard. Hardness (HRB)- 35 HRB TO 99HRB. Spangles -Regular/ Minimized /Suppressed / Zero (Skin pass).

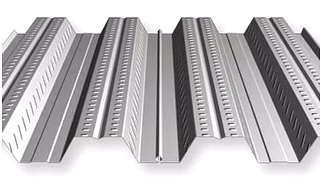

Steel Deck is used as composite floor system. The steel deck profile sheet has a ribbed profile with embossment to interlock with concrete slabs, creating a reinforced concrete slab that serves dual purpose of permanent form and positive reinforcement. Deck profile sheet is offered in Zinc coated and precoated steel, zinc ranging from 120 to 275 gsm which gives better resistance against corrosion. Applications: - Steel Deck is widely used in multi-story buildings. Storage facilities, industrial sheds, shopping malls, High Rise Buildings, Multiplexes, Power Plants, Mezzanine Floors in Industrial Buildings & Warehouses Size: 0.80 -2.00mm Crest Height- 51 mm Pitch Distance- 317mm Overall width - 975mm Effective cover width- 962mm Length - 2440 (8ft), 3050 (10ft), 3660 (12ft), 4270 (14ft), 4880 (16ft)

The normal service life of the Galvalume Steel Coil can reach 25 years, and it has good heat resistance and can be used in high-temperature environments up to 315℃. It has good adhesion between the coating and paint film, as well as good processing performance for stamping, shearing, welding, etc., and excellent conductivity on its surface. Applications:- Building: roofs, walls, garages, soundproof walls, pipes and modular houses; Automotive: mufflers, exhaust pipes, rain wiper accessories, fuel tanks, truck boxes etc.; Home appliances: refrigerator back Panels, Gas stoves, A/C units, Microwave ovens, LCD frames, CRT explosion-proof belts, LED backlight sources and electrical cabinets; Agriculture: pigsties, chicken coops, barns, pipes for greenhouses etc.; Others: insulation covers ,heat exchangers, dryers,and water heaters. Product Specification -Galvalume as per IS 15965 or equivalent grades like ASTM A 792, AS 1397, EN10147/EN10142/DIN 17162/JIS G3302/ASTM A653 Thickness (mm)-0.15-1.6 width (mm) -100-1500 Coating Acrylic coating (Hexavalent /Trivalent), Antifinger Print Yield Strength (MPA) 240,340,550 Temper Soft/Hard/Extra soft Coil Weight (MT) 3-20 max Al-Zn Coating - AZ40-AZ150

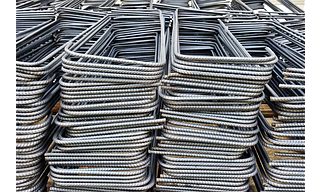

Applications: Bridges Jetty Dams High Rise Building Residential Buildings Construction Industrial Structures Product Specifications: Grades: FE 500, FE 500D, FE 600 Standards: IS -1786, ASTM A 615 Grade 60, JIS G 3112-2004 etc. Cut to length TMT as per specific requirements of Customer. Cut and bend of TMT in any shape with numerical control.

HR COILS FOR GENERAL APPLICATION, REROLLING, CONSTRUCTION, SHIPPING, INFRASTRUCTURE

Hot rolled coils for the Applications:

Constructions

Pipes & Tubes

Truck Frames

Automotive

Doors & Shelving

Railroad tracks

Railroad car parts
