JAY SARDAR ENGINEERING

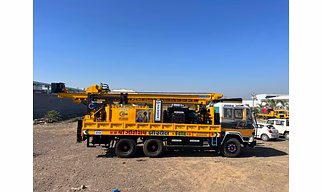

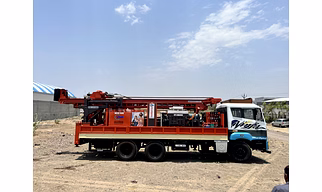

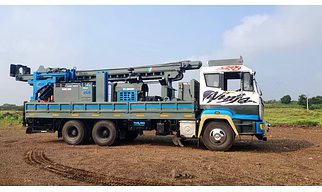

Unleash the wellspring of success with the JSB MAX 2000, your one-stop solution for water well drilling dominance. This versatile rig isn't just powerful, it's a productivity champion. Utilizing the rotary drilling method, the JSB MAX 2000 tackles projects with ease, conquering diameters from 6 to 14 inches and depths reaching a staggering 2000 feet. No aquifer is too deep, no project too demanding.

The JSB MAX 2000 boasts unmatched control with a pull-up force of 19000Kgf and a pull-down force of 12000Kgf. Precision drilling is guaranteed, ensuring you hit your target every time. Plus, the rotary head's variable speed control, ranging from 0 to 130 RPM, optimizes efficiency for any formation.

But power isn't everything – the JSB MAX 2000 is built to last. Housing a robust 218HP Ashok Leyland deck engine and mounted on a dependable Ashok Leyland truck chassis, this rig is a testament to durability. It's your reliable partner, conquering well after well, year after year.

Introducing the JSB MAX 2000, a powerhouse in the world of Water well drilling. Designed for versatility and efficiency, this rig has rotary drilling method, with a hole diameter range of 6 to 14 inches and a drilling depth capability of up to 2000 feet, it's equipped to handle medium-scale projects with ease. Operating at a maximum hydraulic system pressure of 3500 psi, it delivers reliable power for smooth drilling operations. Impressively, the rig features a pull-up force of 19000Kgf and a pull-down force of 12000Kgf, ensuring precise control during drilling. The rotary head, capable of speeds ranging from 0 to 130 RPM, further enhances efficiency on the field. Powered by a 218HP Ashok Leyland deck engine and supported by a sturdy Ashok Leyland truck, this rig is built for durability and performance, making it a trusted companion for water well drilling projects.

Unleash the power of our exceptional drilling equipment lineup! Engineered for unmatched performance, our innovative 2-Truck design conquers any terrain, maximizing your operational flexibility. Streamline your workflow and boost efficiency with the automated rod changer, eliminating downtime and maximizing productivity. Our Heavy Duty Rotary Head delivers relentless torque and unwavering reliability, tackling even the toughest drilling challenges. The integrated Mud Pump guarantees continuous fluid circulation, ensuring optimal hole cleaning and keeping your project on schedule. Don't settle for mediocrity – invest in precision, power, and durability. Experience the drilling revolution with our comprehensive solutions – elevate your drilling game and conquer any subsurface frontier.

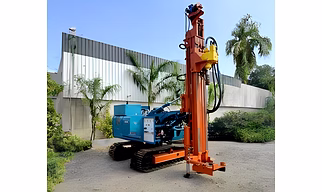

The JSB C 250 is a surface exploration drilling machine which uses PQ and HQ drill rods. The PQ rod can drill up to 50 meters while the HQ rod can reach depths of 150 meters. The pull up force is 6200 Kgf and the pull down force is 3200 Kgf. The rotary head has a torque ranging from 565 to 4000 Nm and a speed range of 125 to 1000 rpm. The hydraulic system has a maximum working pressure of 3500 psi. The drilling angle can be adjusted from 45 to 90 degrees. The prime mover has a power of 52 horsepower, the main winch has a capacity of 2 tons, and the water pump generates a pressure of 50 bar. The drilling rig is mounted on a crawler carrier.
