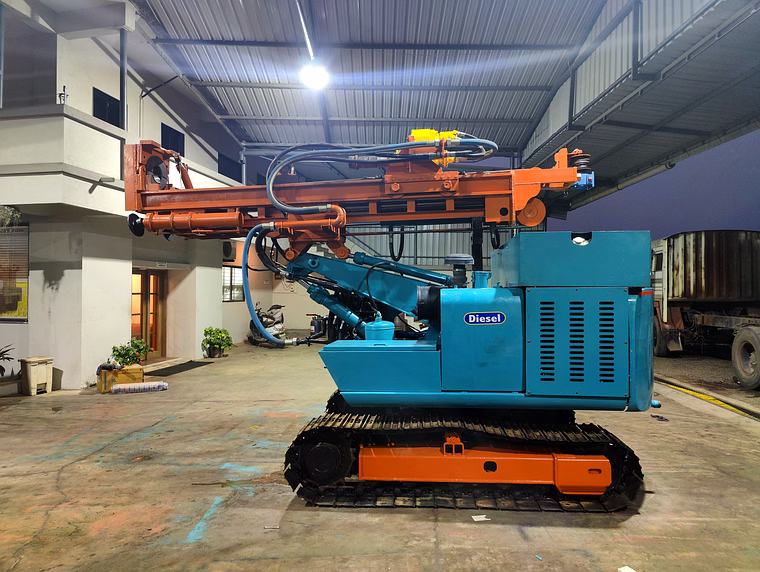

Introducing the JSB C 250 Crawler Mounter Drilling Rig, a robust and versatile surface exploration drilling machine designed for precision and efficiency in various geological conditions. Equipped to handle both PQ and HQ drill rods, the JSB C 250 excels in reaching depths of up to 150 meters while ensuring a smooth drilling operation. Its powerful pull down and pull up forces of 3200 Kgf and 6200 Kgf respectively, allow for intense drilling activities, making it suitable for mining companies, geological surveys, and well monitoring installations.
Key Features
| Features | Description |
|---|---|
| Type of Rig | Crawler Mounter Drilling Rig |
| Drill Rod Compatibility | Supports PQ and HQ drill rods |
| Maximum Depth Capacity | Drills up to 150 meters with HQ rods |
| Pull Up Force | 6200 Kgf |
| Pull Down Force | 3200 Kgf |
| Rotary Head Torque | 565 to 4000 Nm |
| Rotary Head Speed | 125 to 1000 rpm |
| Hydraulic System Pressure | Maximum working pressure of 3500 psi |
| Adjustable Drilling Angle | Can be adjusted between 45 to 90 degrees |
| Prime Mover Power | 52 horsepower |
| Main Winch Capacity | 2 tons |
| Water Pump Pressure | Generates 50 bar pressure |
| Attributes | Description |
|---|---|
| Model | JSB C 250 |
| Drilling Type | Surface exploration |
| Crawler Type | Crawler Carrier Mounted |
| Max Drilling Depth PQ Rod | 50 meters |
| Max Drilling Depth HQ Rod | 150 meters |
| Hydraulic Pressure | 3500 psi |
| Drilling Angle | 45 to 90 degrees |
| Weight | Not Specified |
| Dimensions | Not Specified |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The JSB C 250 can reach a maximum drilling depth of 150 meters using HQ drill rods.
The JSB C 250 supports both PQ and HQ drill rods for versatile drilling operations.
The rotary head of the JSB C 250 provides a torque range from 565 to 4000 Nm.
The hydraulic system of the JSB C 250 operates with a maximum working pressure of 3500 psi.
Yes, the drilling angle of the JSB C 250 can be adjusted between 45 to 90 degrees for optimal drilling.
Country Of Origin: India
The JSB C 250 is a surface exploration drilling machine which uses PQ and HQ drill rods. The PQ rod can drill up to 50 meters while the HQ rod can reach depths of 150 meters. The pull up force is 6200 Kgf and the pull down force is 3200 Kgf. The rotary head has a torque ranging from 565 to 4000 Nm and a speed range of 125 to 1000 rpm. The hydraulic system has a maximum working pressure of 3500 psi. The drilling angle can be adjusted from 45 to 90 degrees. The prime mover has a power of 52 horsepower, the main winch has a capacity of 2 tons, and the water pump generates a pressure of 50 bar. The drilling rig is mounted on a crawler carrier.
