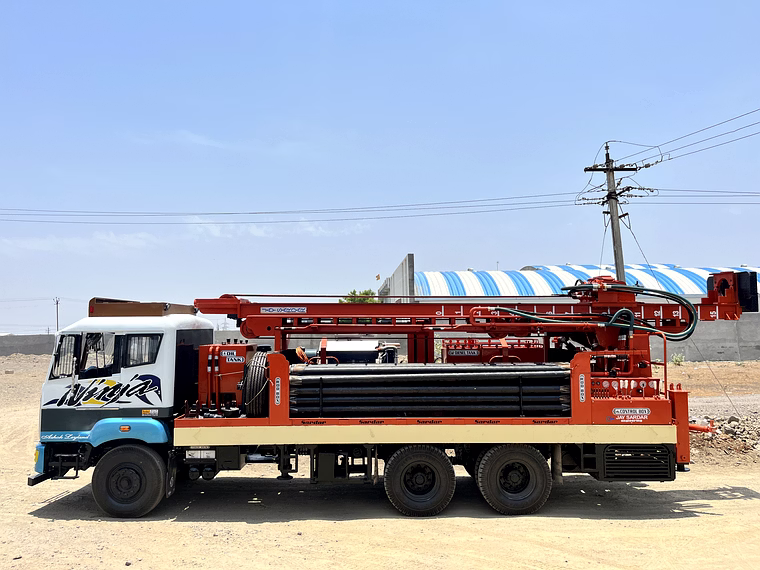

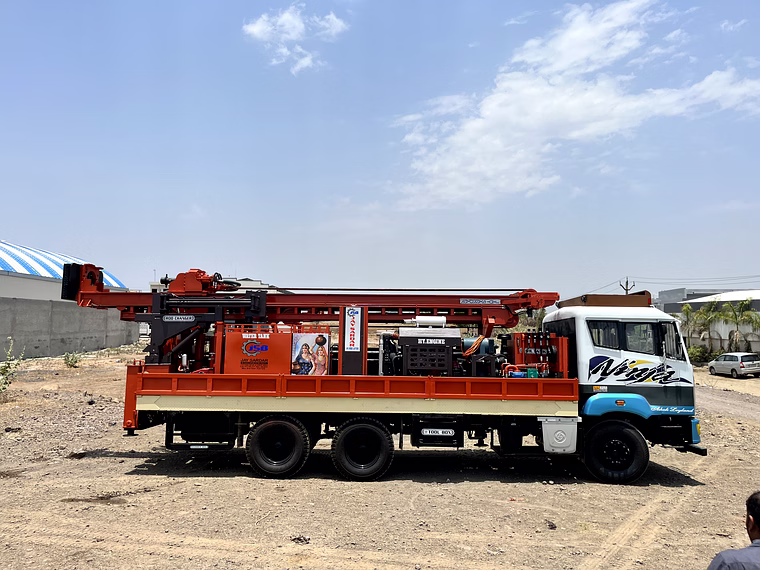

Introducing the JSB MAX 2000 - the ultimate heavy-duty water borehole drilling rig designed for unmatched efficiency and versatility. Engineered to accommodate a range of medium-scale water well drilling projects, this powerhouse features a rotary drilling method, with the capability to create holes between 6 and 14 inches in diameter, and reach depths of up to 2000 feet. With its impressive hydraulic system operating at a maximum pressure of 3500 psi, the JSB MAX 2000 guarantees reliable power and smooth drilling operations, making it an ideal choice for demanding environments. Its enhanced pull-up force of 19000Kgf and pull-down force of 12000Kgf allow for precise control and exceptional performance during drilling tasks. The rig is also equipped with a rotary head that operates at speeds ranging from 0 to 130 RPM, improving efficiency and productivity on the job site. Powered by a robust 218HP Ashok Leyland deck engine and supported by a sturdy Ashok Leyland truck, the JSB MAX 2000 is built to endure the rigors of heavy-duty operations while delivering outstanding performance.
Key Features
| Features | Description |
|---|---|
| Drilling Method | Rotary drilling method |
| Hole Diameter Range | 6 to 14 inches |
| Max Drilling Depth | 2000 feet |
| Hydraulic System Pressure | 3500 psi |
| Pull-Up Force | 19000 Kgf |
| Pull-Down Force | 12000 Kgf |
| Rotary Head Speed | 0 to 130 RPM |
| Engine Power | 218HP Ashok Leyland |
| Chassis Type | Ashok Leyland truck |
| Applications | Medium-scale water well drilling |
| Attributes | Description |
|---|---|
| Weight | Depends on configuration |
| Dimensions | Customizable based on model |
| Fuel Type | Diesel |
| Max Torque | 8000 Nm |
| Cooling System | Water-cooled |
| Transportable | Yes |
| Control System | Hydraulic controls |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The JSB MAX 2000 is powered by a reliable 218HP Ashok Leyland deck engine.
The JSB MAX 2000 can drill to a maximum depth of 2000 feet.
The rig features a pull-up force of 19000 Kgf and a pull-down force of 12000 Kgf.
The JSB MAX 2000 can create boreholes ranging from 6 to 14 inches in diameter.
Yes, the JSB MAX 2000 is designed to be transportable, making it convenient for various job sites.
Brand: jay saradr engineering
Country Of Origin: India
Introducing the JSB MAX 2000, a powerhouse in the world of Water well drilling. Designed for versatility and efficiency, this rig has rotary drilling method, with a hole diameter range of 6 to 14 inches and a drilling depth capability of up to 2000 feet, it's equipped to handle medium-scale projects with ease. Operating at a maximum hydraulic system pressure of 3500 psi, it delivers reliable power for smooth drilling operations. Impressively, the rig features a pull-up force of 19000Kgf and a pull-down force of 12000Kgf, ensuring precise control during drilling. The rotary head, capable of speeds ranging from 0 to 130 RPM, further enhances efficiency on the field. Powered by a 218HP Ashok Leyland deck engine and supported by a sturdy Ashok Leyland truck, this rig is built for durability and performance, making it a trusted companion for water well drilling projects.
