The FIS V Plus injection mortar has numerous system approvals, such as in cracked and non-cracked concrete, ma­sonry and for special applications.

The ETA assessment for a service life of 100 years offers permanent safety for all applications.

The approved use in water-filled drill holes enables a wide range of applica­tions, even under harsh environmental conditions.

FIS VW Plus High Speed has a significantly shorter hardening time than FIS V Plus, which ensures swift work progress even at low temperatures.

The FIS VS Plus Low Speed has an extended processing time that prevents the premature hardening of the mortar at higher temperatures. It is ideally suited to large drill hole depths.

The extensive range of accessories is ideally suited to the FIS V Plus injection mortar family, increases the great flexi­bility of the system and thus allows for a broad range of applications.

Advantages

Simple hammerset installation

The metric internal thread allows for the use of standard screws or threaded rods for ideal adaptation in line with the intended use.

The hand setting tool EA-ST facilitates fast installation.

The fischer hammerset anchor EA N is an internal thread anchor made from zinc-plated and stainless steel. The hammerset anchor is ideal for the multiple fixation of non-structural systems that do not require approved anchorage. The assembly of the internal thread anchor is extremely cost-effective thanks to the low embedment depth, fast hammerset installation, and direction-controlled screwing process. The EA N is mounted with the hammer flush to the base material. With the setting tool EA-ST, the sleeve is expanded and braced against the drill hole wall through the driving in of the internal pin. No torque should be applied to the screw to enable correct expansion.

Advantages

The reclosable fix adapter allows for immediate use and for the reuse of opened cans, thus guaranteeing long-lasting functionality.

The used solid valve prevents adhesion when being stored horizontally and premature gas loss.

The rapid installation foam has been approved as watertight by an external inspection and is thus suitable for use in wet conditions. It fulfils the requirements of a well foam.

The ergonomic handle sits perfectly in the hand and allows for easy use.

The fischer rapid installation foam Premium PU is ideal for the filling, insulation and isolation of window connection joints and the filling of the connection joints of door frames, finished elements, wall connections, wall penetrations and cavities. It has extremely high joint sound insulation. The test report for water pressure resistance confirms its suitability as a fountain foam.

The standard anchorage depth achieves the maximum load-bearing capacities. Thus fewer fixing points and smaller anchor plates are required.

The reduced anchorage depth reduces the drill hole depth. This minimises the amount of time needed for installation whilst increasing flexibility.

The drive-in pin protects the thread from damage, and thus ensures a faster installation and dismantling of the attachment.

The fischer bolt anchor FBN II is a steel anchor for cost-effective fixings in non-cracked concrete. Due to the long thread and the two anchorage depths, the fischer bolt anchor FBN II can be used in a particularly flexible manner. The bolt anchor is also suitable for stand-off installation as well as pre-positioned and in push-through installation. The zinc-plated steel version of the bolt anchor is suitable for fixing railings, cable trays, and consoles in internal areas.

Advantages

The threaded rod FTR is the cost-effective solution for applications with resin capsules where no approval is required.

The fischer threaded rod FTR is a cost-effective system component without approval for the fischer resin capsules RSB and RM II and for fischer injection mortars. For single fixations, the application with the pre-portioned resin capsule is particularly cost-effective. The hot-dip galvanised and zinc-plated steel threaded rods enable extremely diverse applications. The system is particularly suitable for cost-effective fixations indoors where no approval is relevant. The FTR is set with the bonded anchor setting tool and a hammer drill using rotating and hitting motions. During the resin capsule setting process, the capsules are destroyed by the characteristic oblique edge and are mixed, and the mortar is activated.

Advantages

RM II is the first bonded anchor with threaded rod RG M or internal-threaded anchor RG M I that does not need drill hole cleaning. This allows fast progress and efficient installation.

In addition, the construction site is less affected by drill dust. This increases safety for the user.

The pre-portioned resin capsule is easy to use and particularly suitable for individual applications and overhead installations.

Use of the internal threaded anchor RG MI allows the surface-flush removal and reuse of the fixing point, and therefore offers the best possible flexibility.

Advantages

The standard anchorage depth achieves high load-bearing capacities. This means that fewer fixing points and smaller anchor plates are required.

The reduced anchorage depth reduces the drill hole depth. This minimises the amount of time needed for installation whilst increasing flexibility.

Available with metric and imperial threads

The fischer bolt anchor FWA is an economical solution for all applications where an approved fixation is not required. The FWA is offered in zinc-plated steel and hot-dip galvanised steel with an imperial thread. The bolt anchor can be used with two anchorage depths. The standard anchorage depth guarantees a high load-bearing capacity. This means that fewer fixing points and smaller anchor plates are required. The reduced anchorage depth reduces the drill hole depth. This saves time during the installation and increases flexibility.

Advantages

The standard anchorage depth achieves high load-bearing capacities. This means that fewer fixing points and smaller anchor plates are required.

The reduced anchorage depth reduces the drill hole depth. This minimises the amount of time needed for installation whilst increasing flexibility.

Available with metric and imperial threads

The fischer bolt anchor FWA is an economical solution for all applications where an approved fixation is not required. The FWA is offered in zinc-plated steel and hot-dip galvanised steel with an imperial thread. The bolt anchor can be used with two anchorage depths. The standard anchorage depth guarantees a high load-bearing capacity. This means that fewer fixing points and smaller anchor plates are required. The reduced anchorage depth reduces the drill hole depth. This saves time during the installation and increases flexibility.

Advantages

The standard anchorage depth achieves high load-bearing capacities. This means that fewer fixing points and smaller anchor plates are required.

The reduced anchorage depth reduces the drill hole depth. This minimises the amount of time needed for installation whilst increasing flexibility.

Available with metric and imperial threads

The fischer bolt anchor FWA is an economical solution for all applications where an approved fixation is not required. The FWA is offered in zinc-plated steel and hot-dip galvanised steel with an imperial thread. The bolt anchor can be used with two anchorage depths. The standard anchorage depth guarantees a high load-bearing capacity. This means that fewer fixing points and smaller anchor plates are required. The reduced anchorage depth reduces the drill hole depth. This saves time during the installation and increases flexibility.

Advantages

Easy to insert into the drill hole thanks to undersize

High shear loads

Removable

The fischer sleeve anchor FSL is an internal threaded anchor made from zinc-plated steel. Thanks to its high shear load resistance, the FSL is ideal for the anchoring of structural and temporary loads in non-cracked concrete. The variants with screws and hexagonal heads enable use for anchorings with no bolt projection. The sleeve anchor is installed in a time-saving push-through installation. During the installation, the cone is pulled into the expansion sleeve and expands it against the drill hole wall. The anchor is dismantled by means of a surface-flush removal in the case of temporary anchors.

For use with all Hilti 3:1 adhesive foils

For use with all Hilti 3:1 black cartridges (e.g. HIT-RE 500)

For use with all Hilti 3:1 adhesive anchor black cartridges

Not for use with HY 200 (5:1)

For use with HDM and HDE dispensers for HIT RE 500, HY 70, HIT MM, CT1 (HY 200 requires the red holder HIT-CR)

The fischer injection mortar FIS EM Plus 585 S is a high-quality epoxy resin mortar for maximum load-bearing capacity in cracked and non-cracked concrete. Alongside the injection mortar, the injection system consists of reinforcement steel, the approved components anchor rod FIS A and internal threaded anchor RG M I. The anchor rod FIS A can be set with variable anchorage depths. This enables the system to be ideally adjusted to the load to be supported. This optimises the use of materials. The epoxy resin mortar is suitable for fixings in indoor and outdoor areas such as shear connectors for concrete layers, or heavy-duty steel constructions.

The approval of the injection mortar for use in glued laminated or glued solid timber of spruce (Picea abies), fir (Abies alba) or pine (Pinus sylvestris) allows the realisation of high-performance and appealing wood-wood, wood-concrete and wood-steel connections.

The FIS P is the economical solution for anchorings in masonry that do not require approvals.

The FIS P 300 T can be used with stable, standard silicone injection dispensers. No special equipment is required. This helps to reduce procurement costs.

The fischer Injection mortar FIS P is a polyester resin mortar for the economical fixing of gratings, cantilevers and handrails in masonry which do not require approval. The FIS P is processed with the system components fischer threaded rod FIS A, fischer internal threaded rod FIS E together with the fischer injection anchor sleeves indoors and outside. Cartridges already opened can be reused by simply changing the static mixer. This saves time and money during installation.

The threaded rod FTR is the cost-effective solution for applications with resin capsules where no approval is required.

The fischer threaded rod FTR is a cost-effective system component without approval for the fischer resin capsules RSB and RM II and for fischer injection mortars. For single fixations, the application with the pre-portioned resin capsule is particularly cost-effective. The hot-dip galvanised and zinc-plated steel threaded rods enable extremely diverse applications. The system is particularly suitable for cost-effective fixations indoors where no approval is relevant. The FTR is set with the bonded anchor setting tool and a hammer drill using rotating and hitting motions. During the resin capsule setting process, the capsules are destroyed by the characteristic oblique edge and are mixed, and the mortar is activated.

The fischer hammerset anchor EA N is an internal thread anchor made from zinc-plated and stainless steel. The hammerset anchor is ideal for the multiple fixation of non-structural systems that do not require approved anchorage. The assembly of the internal thread anchor is extremely cost-effective thanks to the low embedment depth, fast hammerset installation, and direction-controlled screwing process. The EA N is mounted with the hammer flush to the base material. With the setting tool EA-ST, the sleeve is expanded and braced against the drill hole wall through the driving in of the internal pin. No torque should be applied to the screw to enable correct expansion.

Features

Ultimate performance and model code-compliant design for virtually any concrete-to-concrete and steel-to-concrete connections – ETA assessment for anchoring inc. C1 and C2 seismic and ETA for rebar inc. fire and seismic

The first epoxy mortar qualified according to EAD 332402-00-0601 for concrete-to-concrete connections – rigid connections can now be designed and executed with post-installed rebars without splices according to the newest design method TR069

Suitable for the toughest jobsite conditions – works even in diamond-cored, wet or underwater holes, extremely deep injections, large diameters and at temperatures down to -5°C / 23°F

Improved bond strength in the most demanding applications – such as cracked concrete and seismic C2 conditions

Easier to specify and order – use PROFIS Engineering to design baseplate connections and PROFIS Rebar to design concrete-to-concrete connections according to EC2, TR069 or the Hilti Design Method

Applications

Structural connections with post-installed rebar

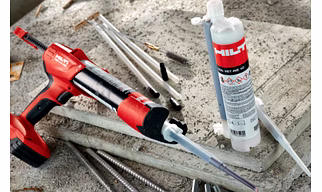

Features

The economical injection mortar solution that can replace virtually all grout fastenings

Suitable for post-installed rebar and concrete anchoring applications in accordance with Hilti technical data

Compatible with Hilti’s full range of accessories (e.g. cordless electric dispenser, steel brushes, piston plug)

Available in 580 ml hard cartridge, suitable for use under severe on-site conditions

Allows flexible installation due to the long working time

Applications

Substitution of misplaced/missing rebar

Connection of secondary post-installed rebar (e.g. staircases, upstands)

Renovation/upgrading of post-installed rebar

Rebar dowelling

Anchoring non-structural secondary steel elements (e.g. columns, beams)

The robust design can withstand the high requirements of the job site and thus offers a long life.

The infinitely variable feed allows the exact dosing and thus ensures easy handling.

The fischer dispenser FIS AM is suitable for quickly dispensing fischer injection cartridges up to 390 ml.

Features

Optimized for post-installed rebar – longer working time for rebar applications in dry concrete, wet concrete, or water filled drill holes (depending on rod specification and approvals), with a wide working temperature range from -10 to +40°C

Easier to specify and order – use PROFIS Engineering to design steel-to-concrete or concrete-to-concrete connections according to EC2, TR069, TR082 or the Hilti Design Method

Versatile adhesive anchor for wide-ranging conditions - approved for hammer-drilled, hollow-drilled and diamond-cored holes (with TE-YRT).

Faster, simpler and safer installations – combine with our fully cordless SafeSet system for a seamless installation solution to reduce time on-site and installation errors

Extensive approvals available - including ETA for cracked and uncracked concrete, seismic C2, fire resistance data, and with service life up to 100 years in rebar and anchor

Applications

Structural concrete connections with post-installed rebar

Fastening secondary steel structures to concrete

Anchoring structural steel connections
