DHYEY INDUSTRIES

Greetings from Dhyey Industries, India!

We would like to take this opportunity to introduce our company and the OEM services we offer.

Dhyey Industries specializes in the manufacturing of sheet metal stamping parts made from materials such as Copper, Brass, Aluminium, Stainless Steel, and M.S. alloys,

which are used in Electrical and Earthing products.

We are capable of producing a wide variety of items. Please feel free to send us your specific drawings or samples, and we would be happy to provide you with a competitive quote.

With over a decade of experience in these products, we have been regularly exporting to the worldwide markets since 2010.

For your convenience, we have attached our product catalog, which provides an overview of our capabilities.

Should you have any specific requirements, please do not hesitate to reach out.

We look forward to receiving your feedback and to exploring potential collaboration opportunities.

Thank you for your time and consideration.

EARTHING BAND CLAMP

Earthing clamps are used for the connection of earthing cable to tubular

construction or pipes. They are provided with a bracket and clamping screw.

ADJUSTABLE EARTH CLAMPS Code No Pipe Diameter Strip Length EC-14/1 12mm to 32mm 150mm EC-14/2 32mm to 50mm 220mm EC-14/3 50mm to 75mm 330mm EC-15/1 12mm to 32mm 150mm EC-15/2 32mm to 50mm 220mm EC-15/3 50mm to 75mm 330mm Application: High performance earth clamp is widely used to connect the pipes to conductor for earthing. Available in three colours - Red for non-corrosive dry atmospheres, Blue or Green for corrosive or humid conditions. Available in three standard band lengths. Characteristics:

 Clamp Material:

Brass Or Bronze

 Tape Material:

Stainless steel 304

 Screw Material:

Brass

 Label Material:

Aluminum (White/Green/Blue/Red)

 Plating Material:

Nickel Plated

 Standard:

BS-951

 Terminal Sections:

A-D 2.5 – 10mm²

 Mounting:

For indoor & outdoor use only

Standard Packing: Inner Box of 20 pieces and Outer Box of 500 pieces

Unit weight: 40g Approx

-------------------------------------------------------------------------------------------------------------------------------

EARTHING BREAKER

FOR CABLES FROM 16 TO 35mm²

Characteristics: Capacity: Cables from 16 to 35mm² Material: Link in copper

Connection in brass Bolts and nuts in brass Base in plastic

Base: Two slotted holes for easy installation

Applications: Disconnections are required by NFC 15-100 in an earthing and

equipotential connection system. Placed in an accessible part of the circuit, it allows the disconnection for resistance measurement (<100Ω). The disconnect is a copper strip screwed on insulators and a mounting plate

Characteristics: Cables range: From 16 to 35mm²

Standard Packaging: Small Box in 20 Pieces with Barcode Label

Disconnecting Link with Ceramic Base EARTH-DISCONNECTING BAR - ABOVE GROUND

Application:  The earth-disconnecting bar is installed at the foot of the earth column.  It enables the opening of the earth circuit to take a measurement of the earth plug.  The opening from the earth circuit can be done by disconnecting the copper link with a screwdriver or spanner.

Material Specification:

 Clamp Material:

Brass

 Connection Link Material:

Copper

 Hardware Material:

Brass

 Base Plate Material:

Blue bichromate steel Plated

 Porcelain insulator:

Ceramic

 Terminal Sections:

16mm² - 35mm² High isolation bar

 Mounting:

For indoor & outdoor use only

Standard Packing: Inner Box of 02 pieces

Unit weight:

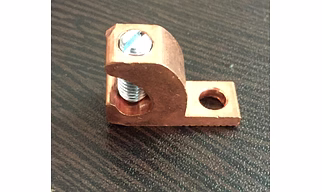

Product Category – Lay in lug grounding connector/ wire connectors

Conduit / Cable to be used: - Solid and Stranded AWG wires as in tables below

No

Item Code

Item Description

Wire Range

Min.

Max.

1

CU-4

COPPER LAY-IN LUG #14 - #4

14 Str.-Sol

4 Str.-Sol

2

CU-1/0

COPPER LAY-IN LUG #8 - #1/0

14 Str.-Sol

1/0 Str.-Sol.

3

CU-3/0

COPPER LAY-IN LUG #6 - #3/0

6 Str.-Sol

3/0 Str.

4

CU-250

COPPER LAY-IN LUG #6 - #250

6 Str.-Sol

250MC

Application: Copper lay-in lug connectors

• Ideal for swimming pool grounding applications

• Carries “DB” marking for direct burial

• Open-faced design enables installer to quickly lay in the grounding conductor as a jumper to multiple conduits with no break in the ground conductor

Characteristics:

 Lug Material:

ETP Grade Copper

 Screw Material :

Low Carbon Steel ZN Plated With Blue Passivation

 Finish :

Copper Flash

 Standard:

UL Certified

 Hardness :

75 TO 90 HV

Product Category – C CRIMP CONNECTOR

Item Description : C CRIMP CONNECTOR - 25mm² to 240mm² Cable Section

Characteristics: Material: ETP Grade Copper Cable wise total Section Capacity: 25mm² to 240mm² max. Crimping Tools: Hexagonal die type and depends of crimping tools. Finish: Natural Copper or Tin Platted. Hardness: Soft 45 to 80 HV
