CHIRAB TECHNOLOGIES

• Link for TDBro Video-https://youtu.be/d6wSnO-s-9o

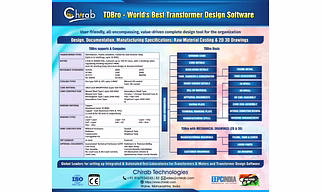

Transformer Design software –TDBro has been revolutionizing the way transformers are quickly designed, elegantly documented and prospects are provided with offers + GTP + Rating Plate Diagram + Terminal Marking Diagram + Transformer GA diagram within 5 minutes.

TDBro automatically computes electrical & mechanical parameters, Bill of quantity & Costing. TDBro outputs Winding card, Core card, Design datasheet, Raw Material Cost sheet, Manufacturing drawings & General Arrangement Diagram. It complies with all types of reference standards globally and is useful to design oil cooled and dry type distribution, power, isolation and unit-auxiliary transformers.

We have earned a strong reputation globally by winning customer confidence by our most advanced and efficient turnkey installations for transformer testing laboratories and flawless, versatile, and user-friendly Transformer Design Software that is used in over 32 countries across all the 7 continents of the world.

https://youtu.be/zJBfo9ri_Rs?si=7GGmI0Q23KuZkiIV

Features of Transformer Testing and Automatic Report Generation Software : TTBro

For Oil cooled, VPI and Cast Resin Transformers for all ratings upto 1000 MVA, 765kV

 Inbuilt drivers for automatic measurements acquisition from any type of communicable Test Instrument. Allows editing & entering measurements manually

 Gives alarms for invalid or incorrect measurements

 Easy storage & retrieval of all the test reports

 Prints Test Report complying with IS, IEC, ANSI & SABS

 Auto indexing & page numbering of test reports as selected test sequence

 Analysis Report facility

 Prints detailed test report, short test report & extra short report with single page.

 Facility of printing formulae sheet when required

 Suggests Capacitor Bank Connection

 Instant data back-up facility

 ERP Integration

 Remote On-line test witness

Demo Video of Transformer Testing & Report Generation Software https://youtu.be/zJBfo9ri_Rs?si=uPgmQpCxPitXm2pk

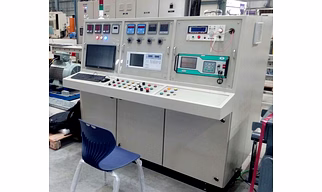

Chirab Technologies is the leader is setting up an Integrated Motor Test Laboratories for testing of LT, MV and HV AC & DC motors. The Induction / Synchronous / PMSM / BLDC motors can be tested using the test labs offered by us. The test Labs offered by us can be for No Load and Load tests. The integrated Test Labs supplied and commissioned in many countries by Chirab.

Automatic Data Acquisition from Test Instruments

Automatic Test Report Generation

Compliance with Standards

• IS 15999-2-1

• IEC 60034-2-1

• IEEE 112

Motor Auto Test (MAT) is a fully integrated test suite for testing of 1/3 Phase AC & DC Motors of all ratings. With MAT, operator connects test bench leads to Motor. With MAT, operator connects test bench leads to Motor. Then he clicks to start tests in sequence. MAT then automatically conducts all tests and signal completion on the screen. MAT prints Test report that is in full compliance with IS,IEC & IEEE standards and name plate is automatically punched.

Fully integrated Automated Test Bench is for conducting either All Tests or Power Tests. Test Bench

connects to a 2 / 3/ 4 winding transformer, acquires on-line data from Power Analyzer, prints report in

full compliance with international standards such as IS, IEC, SABS & ANSI.

Benefits of Automated Test Bench

 Automatic operation of Dimmer and Generator

 Automatic Tap Changing of Booster and Automatic Voltage setting

 Automatic CT PT Tap selection (secondary side)

 Automatic optimal measuring range selection of the test Instrument

 Automatic & unmanned measurements of Resistance during Temperature Rise Test and automatic

report generation with Cooling Curve Graph.

 Visualization & Control of all power circuits, their parameters, alarms on 15” LCD touch screen

 Because of the fixed cabling with Power Analyzer (PA) & other Meters, eliminates the multiple

times connection of PA

 Equipped with world-wide acclaimed Transformer Test Bro (TTBro) software for automated data

acquisition that ensures error-free data-logging and Automatic report generation with a single

click

 Test Bench allows user to easily store and retrieve data with a simple but intuitive graphical user

interface.

 Increases testing productivity significantly by reducing test preparation time, testing process time,

and report generation time

 In-built Protections for user, TUT & Equipment's & Instruments

 Interface with LV Tests Trolley, ensuring printing of full test reports from both places
