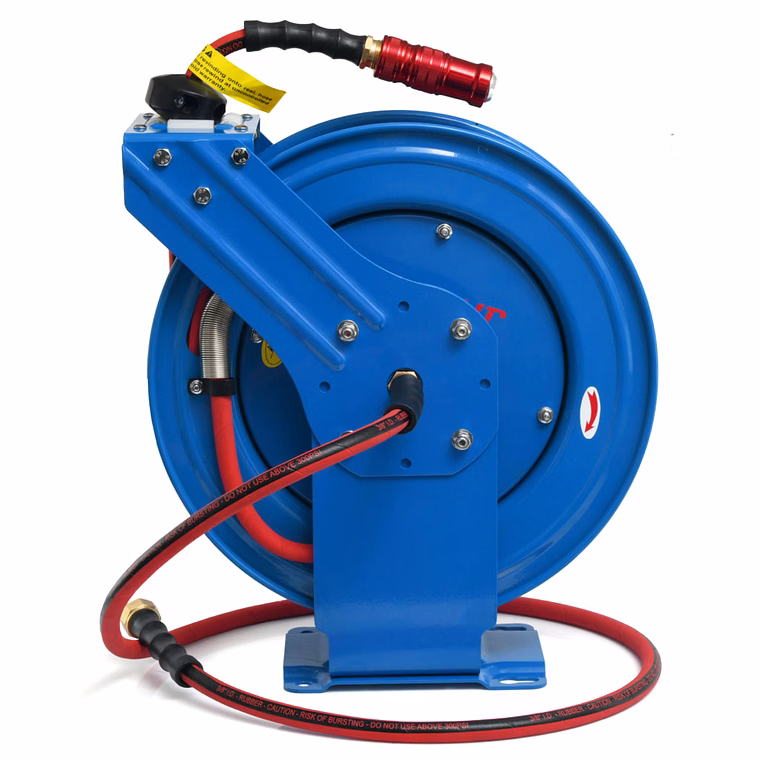

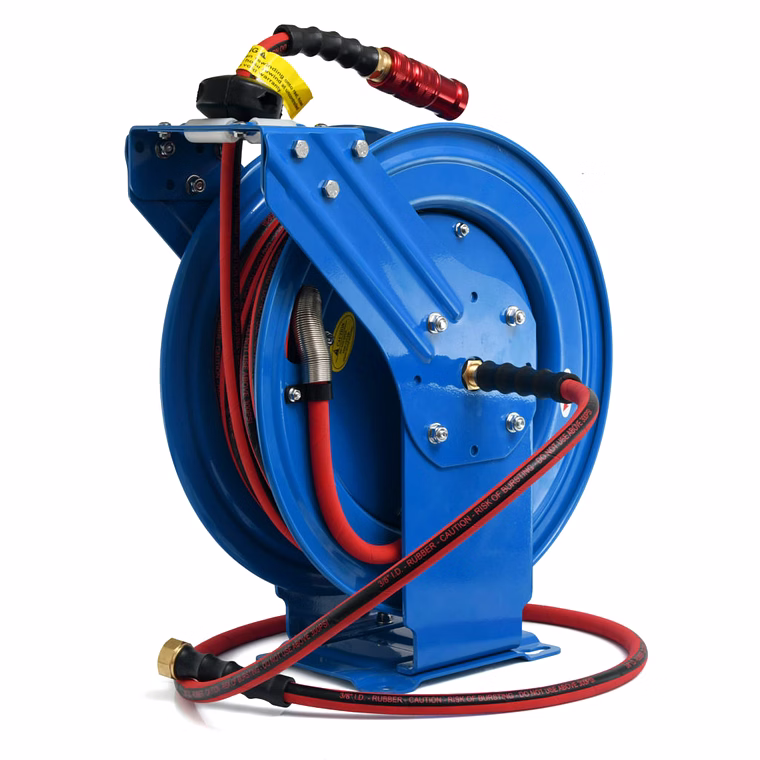

The Zephyr Steam Hose Reel 130MMX10 MTR Dual Arm Heavy Duty (Model ZSR1310DA) is a premium industrial-grade auto-retractable steam hose reel designed specifically for steam wash-down applications in demanding environments such as auto shops, workshops, home studios, and garages. Featuring a robust 18-gauge powder-coated steel construction with nickel-plated bolting, this dual arm reel supports a hose length of 10 meters and a diameter of 13mm, engineered to withstand steam temperatures up to 160ºC. The reel includes an advanced 12-point ratchet mechanism for precise hose length control, ensuring smooth automatic rewind with integrated auto hose binding and 4-way roller guides that accommodate multiple mounting positions. The included Zephyr steam hose is made from high-quality rubber exceeding IS10655 Type 1 standards, with double polyester braid reinforcement, rated for saturated steam at 160°C, ozone and UV resistant, and rated for a working pressure of 5.5 BAR and burst pressure of 15 BAR. The hose reel comes with an aluminium spray nozzle and is compatible with Zephyr Quick-Connects to enable easy attachment or removal of spray tools. Installation hardware is provided, and an optional swivel mount is available. The product is recommended to be used with heat-protective gear for safety. This hose reel is the ideal choice for professionals requiring high durability, safety, and efficiency in steam cleaning and maintenance tasks.
Key Features
| Features | Description |
|---|---|
| Hose Reel Type | Dual Arm Auto-Retractable Steam Hose Reel |
| Hose Diameter and Length | 13mm diameter, 10 meters length |
| Maximum Steam Temperature Supported | Up to 160ºC |
| Construction Material | 18-gauge powder-coated steel with nickel-plated bolting |
| Auto-Retract Mechanism | Industrial-grade spring-based with 12-point ratchet system |
| Mounting Options | Multiple mounting positions with adjustable outlet arm and 4-way roller guides |
| Hose Specification | Rubber Steam Hose with double polyester braid, IS10655 Type 1 standard |
| Pressure Ratings | Working Pressure: 5.5 BAR, Burst Pressure: 15 BAR |
| Additional Accessories | Includes aluminium spray nozzle, mounting hardware, optional swivel mount |
| Compatibility | Compatible with Zephyr Quick-Connect spray tools |
| Safety Recommendation | Recommended use with heat-protective gear |
| Attributes | Description |
|---|---|
| Model Number | ZSR1310DA |
| Reel Size | 130 MM |
| Hose Length | 10 Meters |
| Hose Type | Rubber Steam Hose, Double Polyester Braid |
| Steam Temperature Rating | Supports steam up to 160ºC |
| Working Pressure | 5.5 BAR |
| Burst Pressure | 15 BAR |
| Material | Powder Coated Steel (18-gauge), Nickel Plated Bolts |
| Retracting Mechanism | Spring-based auto-retraction with 12-point ratchet |
| Mounting Hardware | Included |
| Spray Nozzle Material | Aluminium |
| Compliance Standard | Hose exceeds IS10655 Type 1 |
| UV and Ozone Resistance | Yes |
| Optional Accessories | Swivel mount available |
| Applicable Use Case | Steam wash-down in industrial and workshop environments |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The Zephyr ZSR1310DA steam hose reel supports steam temperatures up to 160ºC, making it suitable for high-temperature steam wash-down applications.
Yes, the included Zephyr rubber steam hose is ozone and UV resistant, ensuring durability in various environmental conditions.

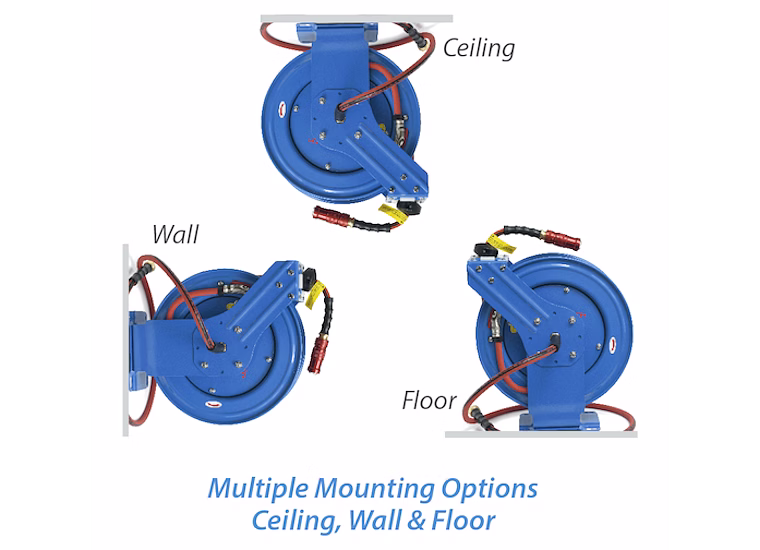

Yes, the hose reel features multiple mounting options with an adjustable outlet arm and 4-way roller guides, allowing installation in various orientations.
Yes, it has an industrial-grade spring-based auto-retraction mechanism combined with a 12-point ratchet system for smooth rewind and accurate stopping at multiple hose lengths.
The hose reel is compatible with Zephyr Quick-Connect spray tools for easy attachment and removal, enhancing usability.
It is recommended to use heat-protective gear when operating the Zephyr steam hose reel due to the high-temperature steam involved.
The Zephyr hose is rated for a working pressure of 5.5 BAR and has a burst pressure of 15 BAR, ensuring reliability under demanding conditions.
Zephyr Dual Arm Auto-Retractable Steam Hose Reel Are Made With Quality And Durability In Mind. The Zephyr 13mmX10m Is an Dual Arm Auto-Retractable Steam Hose Reel. Comes with Zephyr Steam Hose, supports up to 160ºC. That’s Built To Last - Perfect For Auto Shops, Workshops, Home Studios, And Garages. The Reel Is Constructed With 18 Gauge Heavy-Duty Auto-Retractable Steam Hose Reel, With Auto Hose Binding Mechanism System. Features Include A Smooth Automatic Rewind, Roller Guides That Adjust For Any Mounting Position.
Hose Reel Features:
Hose Features:
