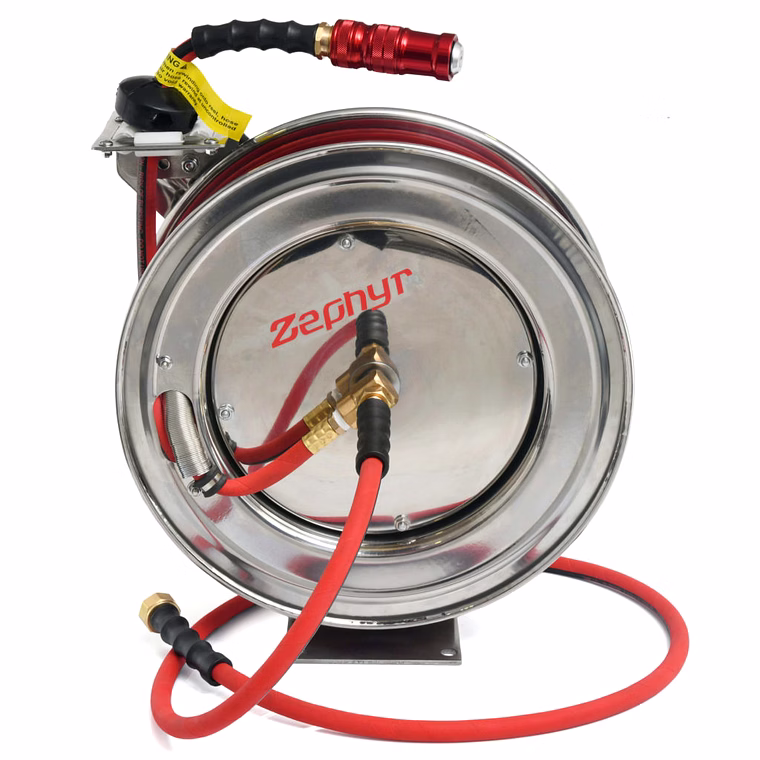

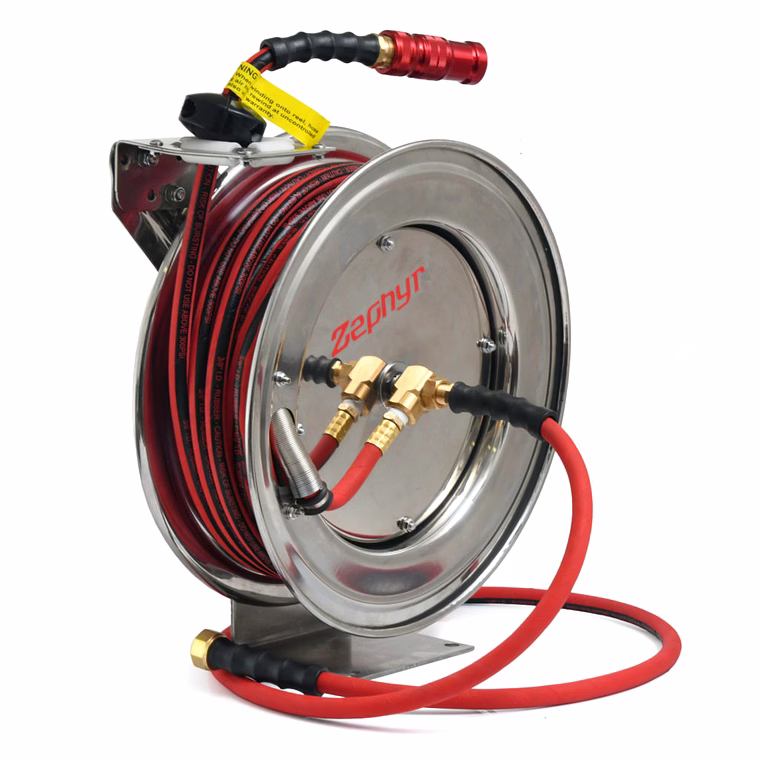

The Zephyr Auto-Retractable Steam Hose Reels 13mm x 15m Stainless Steel 304 (ZSR1315SS) is engineered for superior durability and convenience in industrial steam hose management. Featuring a robust 18-gauge Stainless-Steel 304 construction, this reel offers excellent corrosion and heat resistance for prolonged rust-free use in high-temperature environments up to 160ºC. The industrial-grade spring-based auto-retraction mechanism ensures efficient, tangle-free hose retrieval and storage, enhancing safety and workspace organization. Equipped with a 12-point ratchet system, it allows multiple hose length stops for precise hose positioning. Compatible with Zephyr Quick-Connect spray tools and comes with an aluminium spray nozzle and all necessary mounting hardware, this hose reel is perfect for steam wash-down applications in manufacturing plants, automotive workshops, and steam-powered industrial settings. It includes a high-quality rubber steam hose exceeding IS 10655 Type 1 standards, made of double polyester braid for resilience and rated at 5.5 BAR working pressure with a burst pressure of 15 BAR. The reel supports optional FDA-approved food-grade hoses and features 4-way roller guides and an adjustable outlet arm for versatile installation. For optimal safety, use with heat-protective gear. The 6ft lead-in hose is included, and swivel mounts are optionally available for additional mounting flexibility.
Key Features
| Features | Description |
|---|---|
| Material Construction | 18-gauge Stainless Steel 304 (Food-Grade) |
| Auto-Retraction Mechanism | Industrial-grade spring-based |
| Hose Size and Length | 13mm diameter x 15m length |
| Temperature Rating | Supports saturated steam up to 160ºC |
| Hose Compliance | Exceeds IS 10655 Type 1 standard |
| Pressure Ratings | Working pressure 5.5 BAR, burst pressure 15 BAR |
| Ratchet System | 12-point ratchet for multiple hose length stops |

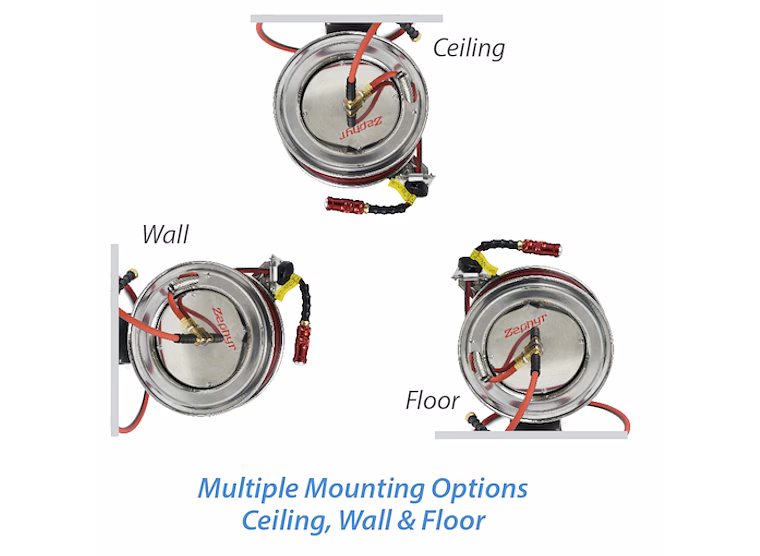

| Mounting Options | Multiple with adjustable outlet arm, mounting hardware included |

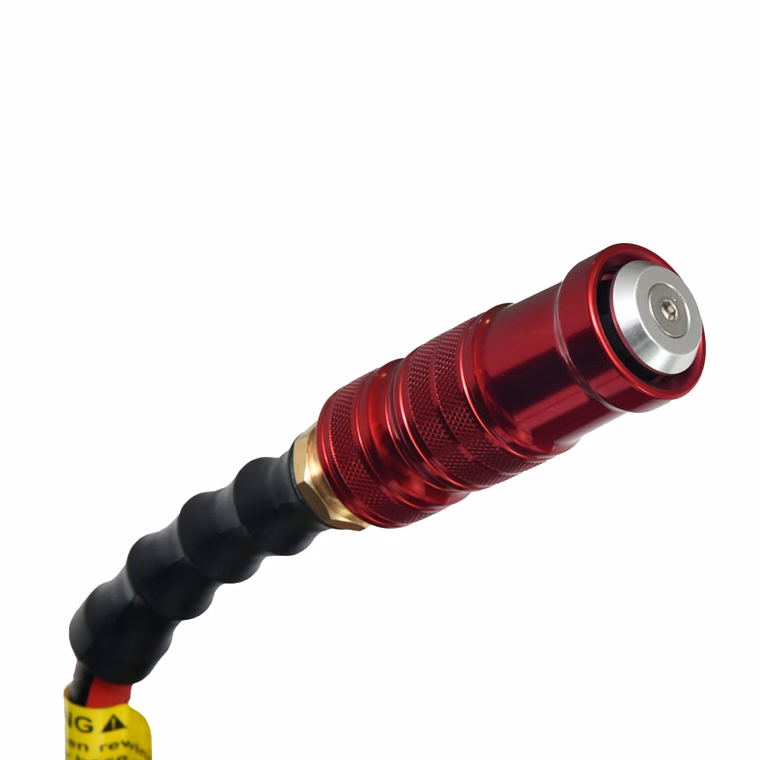

| Hose Reel Accessories | Includes aluminium spray nozzle and 6ft lead-in hose |
| Compatibility | Compatible with Zephyr Quick-Connect spray tools |
| Attributes | Description |
|---|---|
| Reel Model | ZSR1315SS |
| Hose Diameter | 13 mm |
| Hose Length | 15 meters |
| Material | Stainless Steel 304 |
| Hose Material | Rubber with double polyester braid |
| Temperature Range | Up to 160ºC saturated steam |
| Working Pressure | 5.5 BAR |
| Burst Pressure | 15 BAR |
| Hose Standard | IS 10655 Type 1 |
| Additional Accessories | Aluminium spray nozzle, mounting hardware, 6ft lead-in hose |
| Special Features | 4-way roller guides, 12-point ratchet, adjustable outlet arm |
| Optional Features | FDA approved steam/hot water hoses, swivel mount |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the hose reel is constructed from food-grade Stainless Steel 304 and can be fitted with FDA-approved steam/hot water hoses, making it suitable for food processing applications requiring sanitary equipment.
Yes, the hose and reel are rated to support saturated steam at temperatures up to 160ºC, thereby enabling continuous use in high-temperature steam cleaning or wash-down processes.
Yes, the 12-point ratchet system provides precise control with multiple stopping positions, allowing users to lock the hose length as needed during tasks.
Yes, the Zephyr Steam Hose Reel includes comprehensive mounting hardware and an adjustable outlet arm to facilitate easy and flexible installation options.
Absolutely, the rubber steam hose has ozone and UV resistance, ensuring long-term durability when used in environments exposed to sunlight or ozone.
Yes, it is designed to be compatible with Zephyr Quick-Connects, allowing easy attachment and removal of spray tools for efficient steam washing.
The Stainless-Steel Auto-Retractable Steam Hose Reel combines durability and performance, making it the ideal choice for managing steam hoses in demanding industrial environments. Crafted from premium stainless steel, it offers exceptional resistance to corrosion, heat, and wear, ensuring long-lasting reliability even under extreme conditions. The auto-retractable mechanism allows for quick and effortless hose storage, preventing tangles and extending hose life. Perfect for use in manufacturing plants, automotive shops, or any steam-powered facility, this reel delivers efficient hose management, space-saving convenience, and enhanced safety, keeping your workspace organized and hoses easily accessible.
Hose Reel Features:
Hose Features:
