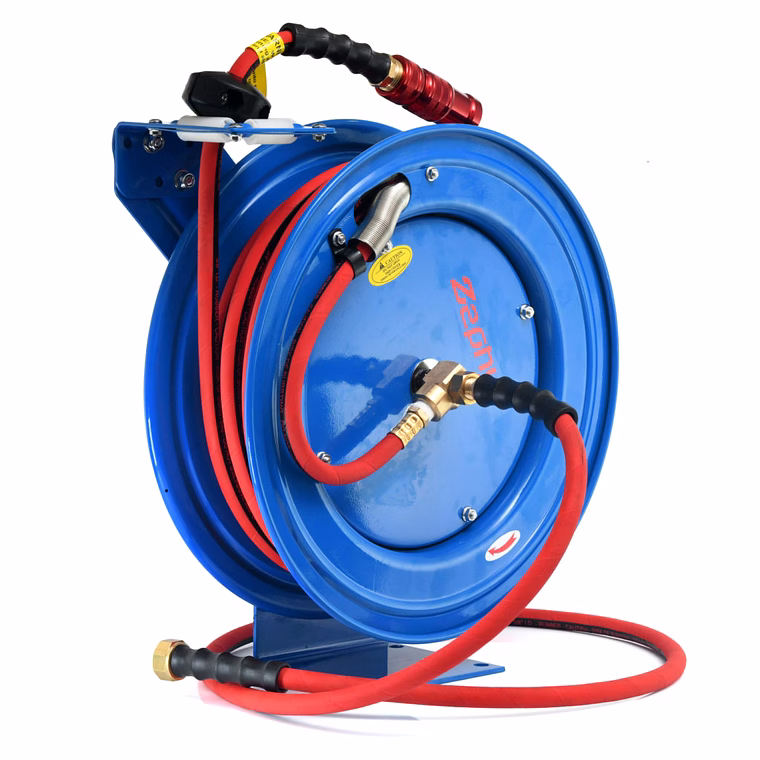

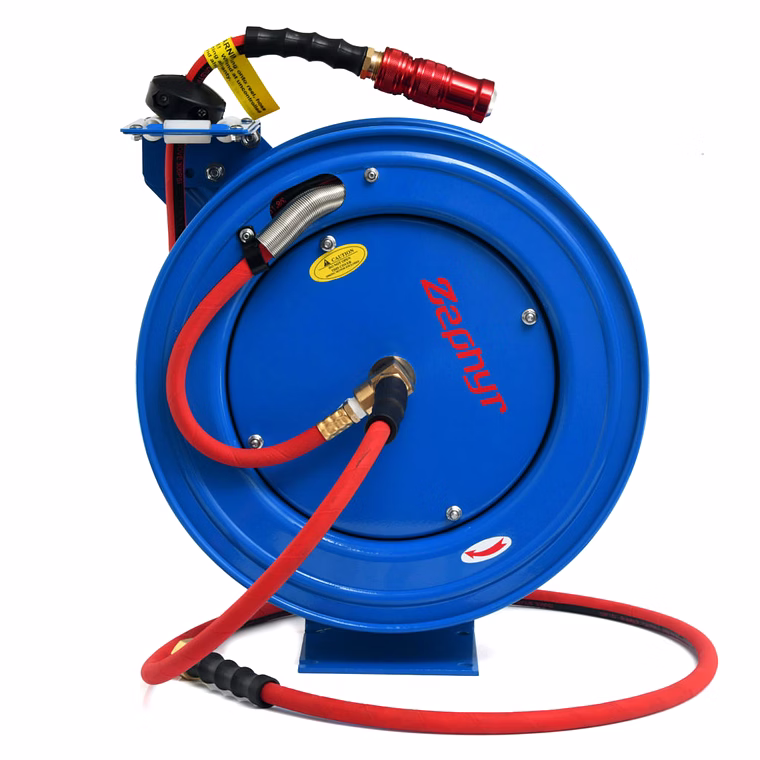

Zephyr Auto-Retractable Steam Hose Reels 13mm x 10m Heavy Duty (ZSR1315HD)

Inclusive of all taxes

The Zephyr Auto-Retractable Steam Hose Reel 13mm x 10m Heavy Duty (ZSR1315HD) is engineered specifically for high-temperature steam applications in industrial and workshop environments. This premium-grade hose reel features an 18-gauge powder-coated steel construction, ensuring robust durability and resistance to harsh working conditions. Designed to handle saturated steam up to 160°C, it comes equipped with Zephyr's steam hose certified beyond IS10655 Type 1 standards, featuring a double polyester braid for enhanced strength and flexibility. The industrial-grade spring-based auto-retraction mechanism provides smooth, automatic hose rewind, supported by 4-way adjustable roller guides that enable versatile mounting positions. Nickel-plated bolting and a 12-point ratchet system allow precise hose length control by enabling stops at multiple points. The unit includes an aluminium spray nozzle and mounting hardware, with compatibility for Zephyr Quick-Connects to facilitate fast and secure attachment or removal of spray tools. Ideal for use in auto workshops, garages, home studios, and commercial environments, it supports working pressures up to 5.5 BAR, with a burst pressure of 15.5 BAR. The product is recommended for use with heat-protective gear to ensure operator safety during steam wash-down tasks. An optional swivel mount is also available, enhancing installation versatility. The reel’s design is tailored to meet the rigorous demands of steam wash-down applications, integrating industrial-grade materials with user-friendly operational features for optimized performance and longevity.

Key Features

Features Description
Hose Diameter 13mm
Hose Length 10 meters
Maximum Steam Temperature 160°C
Hose Material Rubber Steam Hose with Double Polyester Braid
Construction Material 18-gauge powder-coated steel
Auto-Retract Mechanism Industrial-grade spring-based with smooth automatic rewind
Ratchet System 12-point ratchet allowing multiple hose length stops
Roller Guides 4-way adjustable roller guides suitable for any mounting position
Mounting Multiple mounting options with adjustable outlet arm; swivel mount optional
Working Pressure 5.5 BAR
Burst Pressure 15.5 BAR
Additional Inclusion Aluminium spray nozzle and mounting hardware included
Compatibility Compatible with Zephyr Quick-Connects for easy spray tool attachment and removal
Resistance Ozone and UV resistant hose
Safety Recommendation Recommended use with heat-protective gear for operator safety
Attributes Description
Model Number ZSR1315HD
Hose Diameter 13 mm
Hose Length 10 meters
Max Steam Temperature 160°C
Material 18-gauge powder-coated steel reel; rubber hose with double polyester braid
Auto-Retract Type Spring-based automatic rewind
Mounting Options Wall-mounted or ceiling-mounted with adjustable outlet arm; optional swivel mount
Working Pressure 5.5 BAR
Burst Pressure 15.5 BAR
Hose Certification Exceeds IS10655 Type 1 standards
Included Accessories Aluminium spray nozzle, mounting hardware
Color Blue
Bolt Material Nickel plated
Compatible Accessories Zephyr Quick-Connects
Resistance Properties UV and ozone resistant hose
Use Cases Auto shops, workshops, home studios, garages, steam wash-down applications

*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.

Be the first to write a review

The Zephyr steam hose reel and hose are rated for saturated steam up to 160°C, making it suitable for high-temperature steam cleaning applications.

Yes, the hose reel is compatible with Zephyr Quick-Connects, allowing for easy attachment and removal of various spray tools.

The reel is made from 18-gauge powder-coated steel with nickel-plated bolting, and the hose features a rubber construction with double polyester braid for added strength and UV/ozone resistance.

Yes, it includes a 4-way roller guide system and an adjustable outlet arm, providing multiple mounting options including wall and ceiling mounts. An optional swivel mount is also available.

The hose maintains a working pressure of 5.5 BAR and a burst pressure of 15.5 BAR, in compliance with industrial standards.

Yes, the Zephyr steam hose reel includes mounting hardware and an aluminium spray nozzle to facilitate immediate installation and use.

Yes, it is recommended to use heat-protective gear when operating with this steam hose reel to ensure safety during high-temperature steam wash-down applications.

  • Incorporation Type

  • GST

  • GST Registration Date

  • Number of Employees

  • Import Export Code (IEC)

  • Year of Establishment

  • Nature of Business

  • GlobalLinker Member Since

Zephyr Heavy-Duty Auto-Retractable Steam Hose Reel (Color-Blue) Are Made With Quality And Durability In Mind. The Zephyr 13mmX15m Is an Heavy-Duty Auto-Retractable Steam Hose Reel. Comes with Zephyr Steam Hose, supports up to 160ºC. That’s Built To Last - Perfect For Auto Shops, Workshops, Home Studios, And Garages. The Reel Is Constructed With 18 Gauge Heavy-Duty Auto-Retractable Steam Hose Reel, With Auto Hose Binding Mechanism System. Features Include A Smooth Automatic Rewind, Roller Guides That Adjust For Any Mounting Position.


Hose Reel Features:

  • For steam wash-down applications
  • Industrial-grade spring-based auto-retraction mechanism
  • 18-gauge powder coated steel construction
  • Nickel plated bolting
  • 12-point ratchet for precise resolution that allows stopping of hose at many more lengths
  • Multiple mounting options with adjustable outlet arm
  • 4-way roller guides
  • Comes with Zephyr Steam Hose, supports up to 160ºC
  • Includes aluminium spray nozzle
  • Mounting hardware included
  • Compatible with Zephyr Quick-Connects for easy attachment and removal of spray tool
  • Recommended to be used with heat-protective gear

Hose Features:

  • Rubber Steam Hose exceeds IS10655 Type 1
  • Double Polyester Braid
  • Rated for Saturated Steam at 160°C
  • Ozone and UV Resistant
  • Working Pressure 5.5 BAR; Burst Pressure 15.5BAR
  • Also available with food-grade hot water & steam hose
  • Swivel Mount is optional
