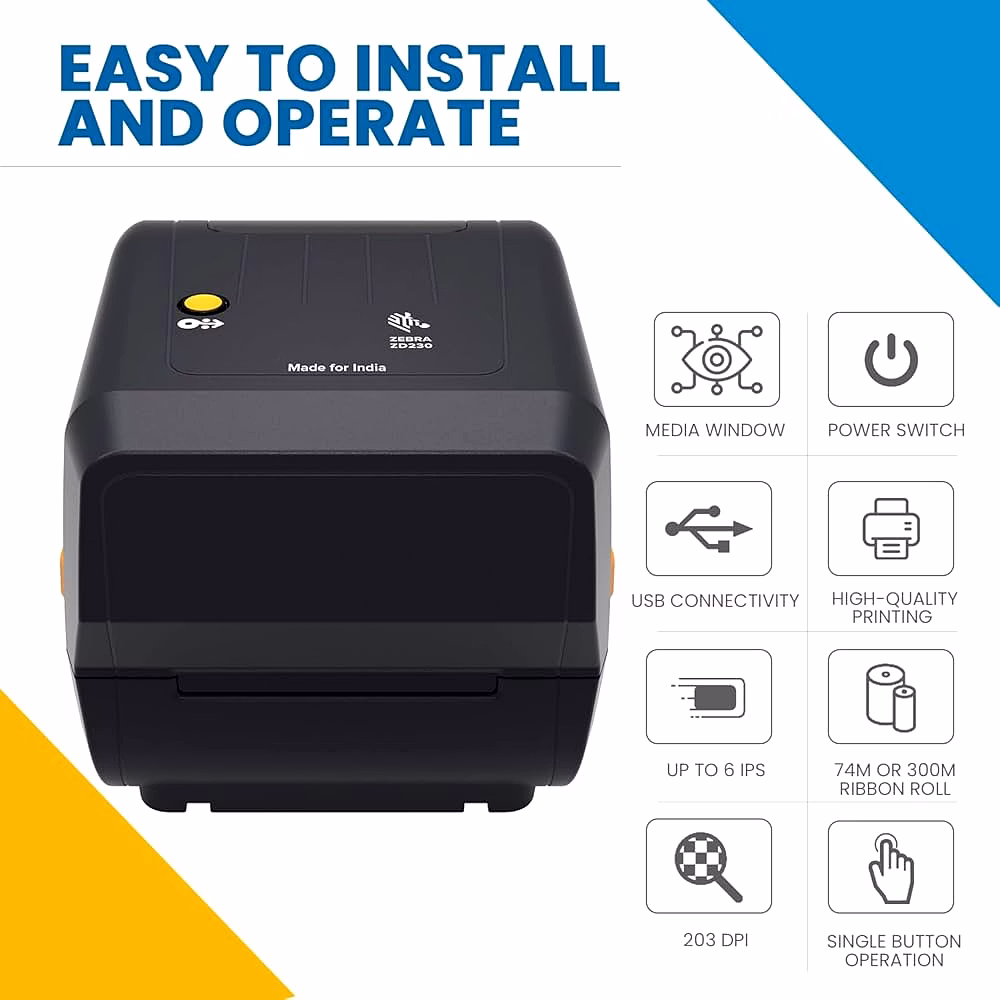

The Zebra ZD230TA is a high-performance desktop thermal transfer printer specifically designed for professional label printing applications. Featuring a print resolution of 203 DPI (dots per inch), the ZD230TA delivers sharp and clear label output, suitable for a wide range of industries including retail, healthcare, manufacturing, and logistics. This model supports a maximum print width of 4 inches (104 mm) and can print at a rapid speed of up to 6 inches per second (152 mm/s), maximizing efficiency in busy production environments. Equipped with USB and Ethernet connectivity, the printer ensures reliable and versatile integration with various IT systems and networks. Additional media sensors such as movable black mark sensor, fixed off-center gap sensor, ribbon sensor, and head open sensor enhance print accuracy and maintenance convenience. The ZD230TA supports advanced printer programming languages including ZPL II, EPL 2, and XML, making it compatible with numerous label design and printing solutions. Optional upgrades like serial port, Bluetooth, or Wi-Fi connectivity make this printer scalable for diverse operational needs, while its compact dimensions (10.5 x 7.75 x 7.5 inches) and moderate weight (5 kg) allow easy placement in workstations with limited space. Overall, the Zebra ZD230TA 203 DPI USB + ETH thermal transfer label printer is an ideal choice for businesses seeking reliable, high-quality, and versatile label printing technology.
Key Features
| Features | Description |
|---|---|
| Print Resolution | 203 DPI (dots per inch) / 8 dots per mm |
| Print Technology | Thermal Transfer |
| Maximum Print Width | 4 inches (104 mm) |
| Maximum Print Speed | Up to 6 inches per second (152 mm/s) |
| Connectivity Interfaces | USB and Ethernet |
| Media Sensors | Movable black mark sensor, fixed off-center gap sensor, ribbon sensor, head open sensor |
| Supported Programming Languages | ZPL II, EPL 2, XML, TSPL subset compatible |
| Optional Connectivity Features | Serial port, Bluetooth, Wi-Fi (model dependent) |
| Media Handling | Tear-off |
| Dimensions (W x D x H) | 10.5 x 7.75 x 7.5 inches |
| Weight | 5 kg |
| Attributes | Description |
|---|---|
| Model Number | Zebra ZD230TA |
| Print Resolution | 203 dpi |
| Print Width | 4 inches (104 mm) |
| Print Speed | Up to 6 ips (152 mm/s) |
| Connectivity | USB, Ethernet |
| Programming Languages Supported | ZPL II, EPL 2, XML, TSPL subset |
| Media Sensors | Black mark, gap sensor, ribbon sensor, head open sensor |
| Optional Interfaces | Serial port, Bluetooth, Wi-Fi |
| Media Handling | Tear-off |
| Dimensions (inches) | 10.5 x 7.75 x 7.5 |
| Weight | 5 kg |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the Zebra ZD230TA offers optional connectivity upgrades including Bluetooth and Wi-Fi, depending on the specific model or configuration selected.
The ZD230TA is equipped with a movable black mark sensor, fixed off-center gap sensor, ribbon sensor, and head open sensor, enabling precise media detection and print quality control.
Yes, it supports multiple popular programming languages including ZPL II, EPL 2, XML, and is compatible with a subset of TSPL commands.
The printer supports a maximum print width of 4 inches (104 mm), which accommodates most standard label sizes used in industrial and commercial applications.
The Zebra ZD230TA utilizes a tear-off media handling system that allows easy removal of printed labels for continuous workflow in fast-paced environments.
Country Of Origin: China
ZD230TA 203 DPI printer with USB and Ethernet connectivity is a desktop thermal transfer printer designed for label printing. It offers a print resolution of 203 dots per inch, supports a maximum print width of 4 inches (104 mm), and can print at speeds up to 6 inches per second (152 mm/s). The printer features both USB and Ethernet interfaces for versatile connectivity.
Model: Zebra ZD230TA (also available as ZD230).
Resolution: 203 dpi (dots per inch) / 8 dots per mm.
Print Technology: Thermal transfer.
Max Print Width: 4 inches (104 mm).
Max Print Speed: Up to 6 ips (152 mm/s).
Connectivity: USB and Ethernet.
Media Sensors: Movable black mark sensor, fixed off-center gap sensor, ribbon sensor, head open sensor.
Programming Languages: ZPL II, EPL 2, XML, compatible with TSPL subset.
Optional Features: Serial port, Bluetooth, or Wi-Fi (availability may vary by model).
Media Handling: Tear-off.
Dimensions: 10.5 x 7.75 x 7.5 inches.
Weight: 5 kg.
