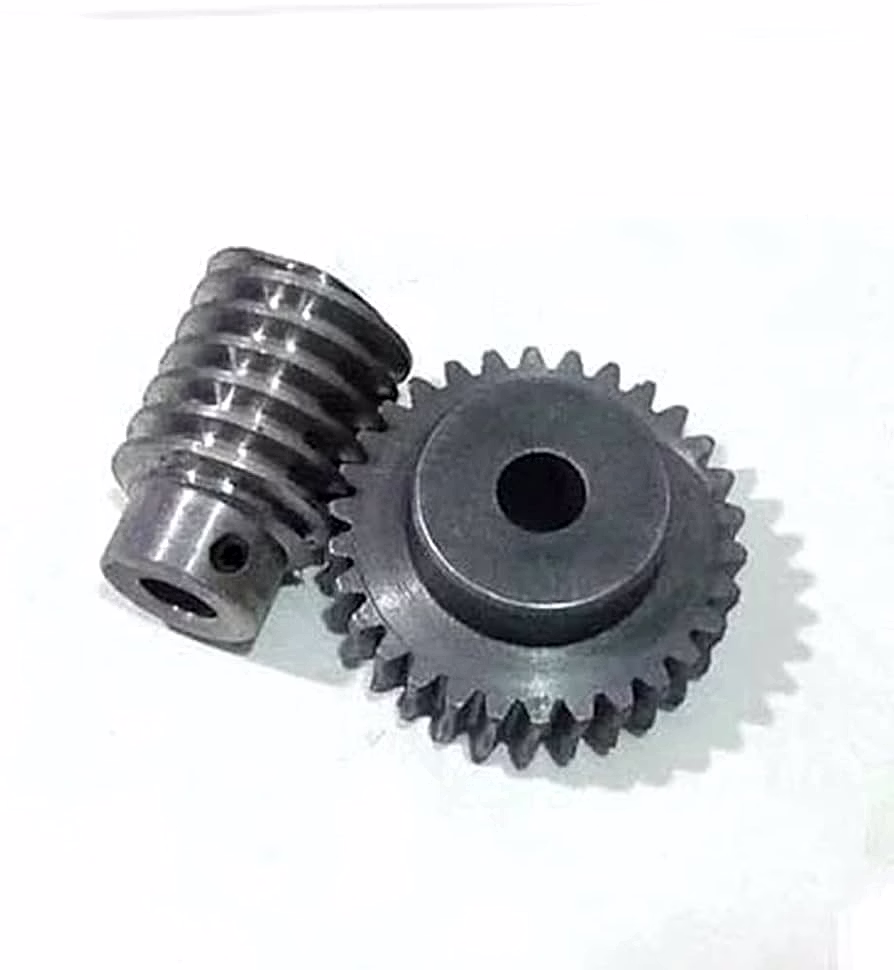

This Worm Gear is a precision-engineered mechanical component designed explicitly for industrial and commercial applications where torque transmission and speed reduction are critical. The gear features a helical screw (worm) that meshes with a toothed wheel (worm gear) to deliver a high gear reduction ratio while maintaining smooth and quiet operation. Ideal for use in heavy machinery, conveyors, automotive steering systems, and packaging equipment, this worm gear optimizes power transmission efficiency and ensures durability in demanding environments. Constructed from high-quality alloy steel with hardened teeth, it offers excellent wear resistance and long service life. Its compact design facilitates integration into a wide range of gearboxes and mechanical assemblies, making it an essential part for manufacturers and industrial engineers seeking reliable and efficient motion control solutions.
Key Features
| Features | Description |
|---|---|
| Material | High-grade alloy steel with hardened teeth |
| Gear Ratio | Customizable, typically ranges from 10:1 to 100:1 |
| Design | Compact with helical worm and toothed gear |
| Surface Treatment | Heat treated and precision ground for enhanced durability |
| Noise Level | Low noise operation due to helical design |
| Application | Suitable for conveyors, heavy machinery, packaging, and automotive systems |
| Load Capacity | Capable of withstanding high torque loads |
| Efficiency | Optimized for high power transmission efficiency |
| Attributes | Description |
|---|---|
| Module | Varies, typically between 1 to 5 mm |
| Number of Teeth | Customizable per application requirements |
| Face Width | Dependent on gear size, customizable |
| Pressure Angle | 20 degrees (standard) |
| Mounting Type | Shaft mounted or integrable into gearboxes |
| Operating Temperature Range | -20°C to 120°C |
| Finish | Polished and coated for corrosion resistance |
| Compliance Standard | IS 11144 / IS 1247 (Applicable Indian standards for gears) |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
This worm gear is manufactured from high-grade alloy steel with hardened teeth to offer excellent wear resistance and durability.
Yes, the gear ratio is customizable depending on the application requirements, typically ranging from 10:1 to 100:1.
It is widely used in industries such as heavy machinery manufacturing, automotive steering systems, conveyors, and packaging equipment.
The worm gear is designed to operate reliably within a temperature range of -20°C to 120°C.
Yes, it complies with applicable Indian Standards such as IS 11144 and IS 1247 for gears.
Country Of Origin: India
