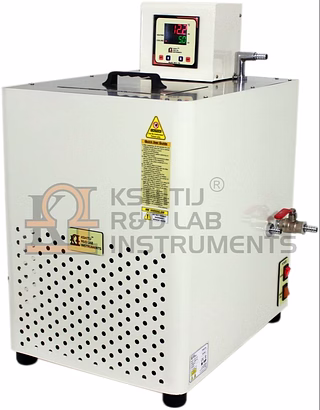

Our Water Circulation Chiller is a precision-engineered cooling solution designed specifically for laboratory and industrial applications that require stable and accurate temperature control. Constructed with a stainless steel (SS-304) inner chamber and a robust mild steel powder-coated outer body, it ensures durability, corrosion resistance, and long service life. With a 12-liter inner chamber capacity and a 10-liter cooling capacity, this chiller efficiently maintains temperatures ranging from -10ºC to 80ºC with exceptional control accuracy of ±1ºC, making it ideal for sensitive pharmaceutical labs, biotechnology research, chemical analysis, and medical facilities. The integrated inline circulation pump provides a maximum flow rate of 64 liters per minute at a flow head and supports pressures up to 96 bar, with manual valve adjustment for flow control. Featuring a 2-in-1 cooling and heating function, this chiller doubles as a circulating water bath, expanding its usability across diverse experimental setups. The unit is equipped with a fully automatic compressor featuring ON/OFF control and utilizes an environmentally friendly CFC-free R134 refrigerant for energy-efficient performance. Its compact design, low noise operation, and digital microprocessor-based PID controller afford precise temperature management through an intuitive user-friendly front panel interface, making it an indispensable asset for laboratories aiming to improve efficiency while reducing water consumption and environmental impact.
Key Features
| Features | Description |
|---|---|
| Inner Chamber Material | Stainless Steel (SS-304) |
| Outer Body Material | Mild Steel Powder Coated |
| Inner Chamber Size | 12 Liters |
| Cooling Capacity | 10 Liters |
| Temperature Range | -10ºC to 80ºC |
| Control Accuracy | ±1ºC |
| Voltage Requirement | 220/230 V AC, 50/60 Hz |
| Power Rating | 1000 W |
| Pump Type | Inline Circulation Pump |
| Maximum Operating Pressure | 96 Bar |
| Flow Rate | Up to 64 Liters/min |
| Lid Design | Top Opening Lid with Stainless Steel Handle |
| Compressor Control | Fully Automatic ON/OFF |
| Cooling Type | Air Cooled |
| Temperature Controller | Digital Microprocessor based PID Controller |
| Refrigerant Type | R134a (CFC-Free) |
| Functionality | 2-in-1 Cooling and Heating with Circulating Water Bath capability |
| Noise Level | Low Noise Operation |
| Attributes | Description |
|---|---|
| Insulation | High grade PUF between inner and outer chambers |
| Refrigerant Environmental Impact | Environmentally Friendly, CFC-Free |
| Controller Interface | User-friendly front panel with keys |
| Water Consumption | Reduced water consumption and waste water |
| Waste Water Safety | No hazardous substances |
| Operating Frequency | 50/60 Hz |
| Compressor Type | Hermetically Sealed Compressor |
| Cooling Efficiency | High condensation efficiency |
| Application Suitability | Pharmaceutical, Biotechnology, Chemical Analysis, Medical Laboratories |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
The chiller utilizes a digital microprocessor-based PID controller that continuously monitors and adjusts the temperature, enabling precise control within ±1ºC accuracy to meet demanding laboratory standards.
Yes, the Water Circulation Chiller has an integrated 2-in-1 cooling and heating capability, allowing it to act as both a refrigerated circulator and a circulating water bath for versatile laboratory applications.
The unit uses environmentally friendly, CFC-free R134a refrigerant and premium insulation to reduce thermal loss along with low water consumption design, ensuring minimal hazardous wastewater generation and cutting down on water waste.
Yes, it supports maximum operating pressures up to 96 bar. Flow is manually adjustable via a valve to accommodate various experimental requirements while ensuring stable circulation.
The inner chamber and lid are made from stainless steel (SS-304) for corrosion resistance, while the outer body is powder-coated mild steel. Additionally, the space between chambers is insulated with high-grade PUF for minimal heat loss and enhanced condensation efficiency.
The chiller employs an air-cooled system and a hermetically sealed compressor designed for low noise output, making it suitable for noise-sensitive laboratory environments.
Brand: kshitij innovation
Country Of Origin: India
Engineered for accuracy, efficiency, and reliability, it ensures stable cooling for laboratory instruments, analytical devices, and experimental setups.Ideal for pharmaceutical labs, biotechnology research, chemical analysis, and medical facilities, our chillers offer compact designs, energy efficiency, and low noise operation to meet the demanding needs of modern laboratories.
1)Material:Stainless Steel inner chamber, Outer M.S. Powder Coated.
2) Size of inner chamber:12LTR
3)Cooling Capacity:10LTR.
4)Temperature Range:-10ºC.to 80 ºC
5) Control Accuracy:± 1Deg.C
6)Voltage needed:220/230 V AC, 50/60 Hz AC Supply
7) Power Rating:1000 W
8)Motor/Pump:Inline CirculationPump
9) Maximum operating pressurePN:Max 96Bar and flow adjustable by manual Valve2in1With Cooling& HeatingFunction. Can be used as a Circulating Water Bath also.
10) Flow:Max 64Litres/min at flow head
11) Opening:Top opening Lid with Handle SS Make
12) CompressorFully Automatic ON/OFF Control
ADVANTAGES & BENEFITS:A Compact Refrigerated circulatorBuilt in circulator pump for efficient circulating processIt offers higher level of performance, flexibility & control for the most demanding applications.Low noise level.Wide operating ranges & applications.CONSTRUCTIONAL FEATURES:Inner bath chamber & lid made of Stainless Steel (SS-304).Outer body made of MSsheet duly powder coated.Space between inner & outer chamber filled with high grade PUF insulation for minimal thermal losses.High condensation efficiency.Environment friendly CFC free refrigerants & hermetically sealed compressor used.Reduces water consumption thus reducing high cost of water & waste water.Waste water does not contain hazardous substances thus eliminating danger to personnel and environment caused by solvents.
