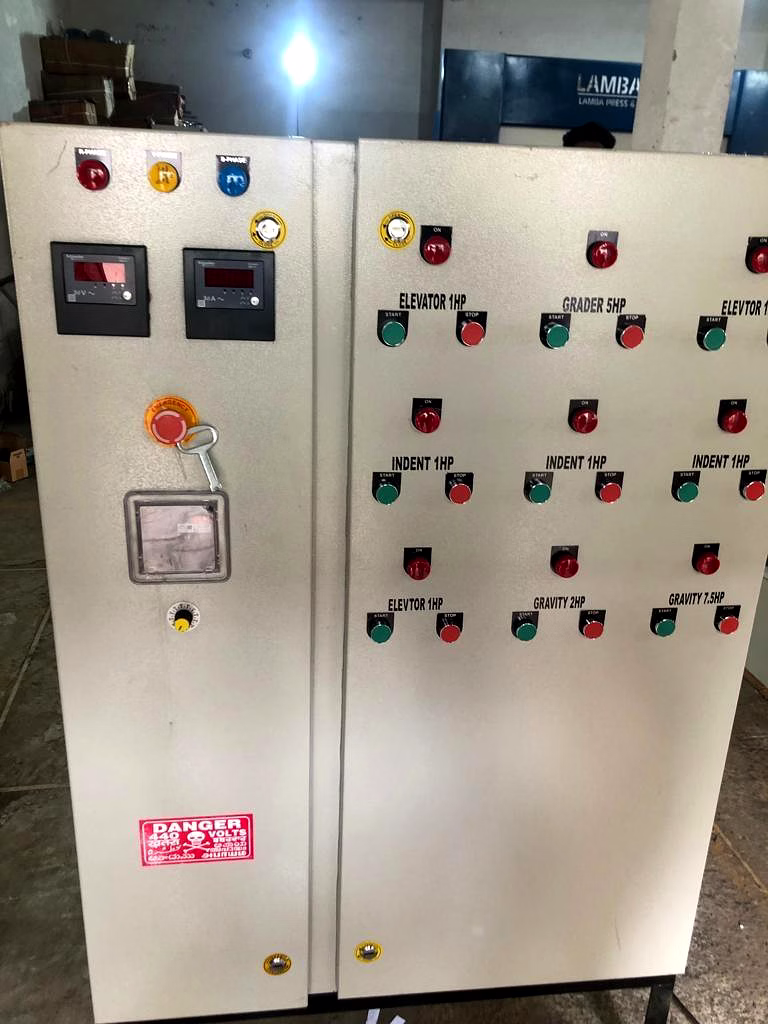

The VFD Control Panel is a highly customizable electrical panel designed to house Variable Frequency Drives (VFDs) that regulate the speed and torque of electric motors. Tailored to meet specific customer requirements, this control panel ensures optimal integration, seamless operation, and enhances energy efficiency for industrial automation systems. Featuring robust construction, advanced wiring configurations, and adaptability for various motor control applications, this VFD Control Panel is ideal for businesses seeking tailored solutions for motor speed control, energy savings, and equipment protection in manufacturing and processing plants.
Key Features
| Features | Description |
|---|---|
| Customization | Fully customizable panel design based on specific customer requirements |
| Compatibility | Supports a wide range of Variable Frequency Drives (VFDs) from various manufacturers |
| Durability | Constructed with high-quality materials for long-lasting performance in industrial environments |
| Safety | Includes all necessary protective components such as circuit breakers, fuses, and emergency stops |
| Energy Efficiency | Optimizes motor speed to reduce power consumption and operational costs |
| Control Integration | Can integrate with PLCs and SCADA systems for automated motor control |
| Ease of Maintenance | Designed for easy access and servicing of internal components |
| Installation | Ready for quick and hassle-free installation at site |
| Application Range | Suitable for industrial motors in manufacturing, HVAC, pumps, conveyors, and other automation systems |
| Attributes | Description |
|---|---|
| Panel Type | Custom VFD Control Panel |
| Voltage Rating | Configured as per customer specification (typically 220V to 690V) |
| Material | Sheet metal enclosure with powder-coated finish |
| Ingress Protection | IP54 / IP55 (optional based on environment) |
| Mounting Type | Wall-mounted or floor-standing options available |
| Cooling | Ventilation or forced air cooling based on VFD heat dissipation |
| Control Devices | Includes overload relays, contactors, starters, and bypass arrangements as needed |
| Standards Compliance | Designed to meet IEC/IS standards for electrical panels |
| Dimensions | Varies depending on VFD and customer requirements |
| Wiring | Internal wiring using heat resistant copper wires with proper labeling and terminal blocks |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Yes, the VFD Control Panel can be customized to support a voltage range typically from 220V up to 690V depending on the customer's motor specifications.
The panel includes circuit breakers, overload relays, fuses, and emergency stop mechanisms to ensure operational safety and protection of equipment.
Yes, the control panel can be integrated with PLCs and SCADA systems for automated motor control and monitoring as per customer requirements.
Delivery time varies based on the complexity of customization requested; typically, it is finalized after requirement assessment and design approval from the customer.
The enclosure offers IP54 or IP55 protection rating options to prevent dust and water ingress, ensuring suitability for varied industrial environments.
Country Of Origin: United Kingdom
CUSTOMER REQURIMENT PANEL WILL READY
