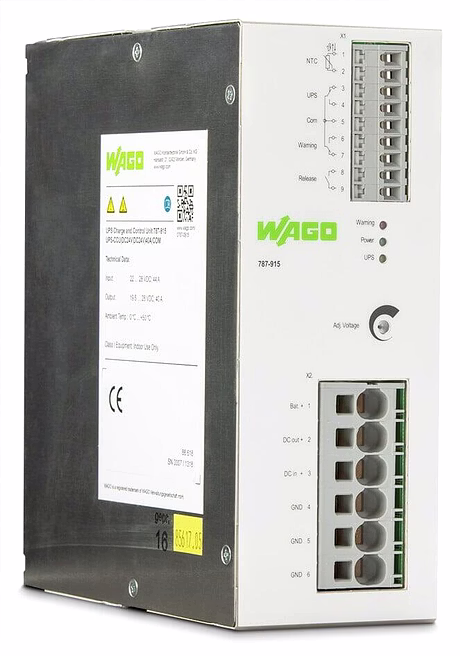

DC UPS module for uninterruptible power supply (UPS)
Potential-free contacts provide function monitoring
Remote input for buffered output deactivation
Input for temperature control of connected battery
Battery internal resistance measurement for diagnosing batteries, including the connection cable and fuse
INPUT
Nominal input voltage Ui nom DC 24 V
Input voltage range DC 22 … 28 V
Nominal mains frequency range 0 Hz
Input current Ii ≤ 0.16 A (No load); ≤ 4 A (Charging); ≤ 44 A
OUTPUT
Nominal output voltage Uo nom DC 24 V
Output voltage range Ui (rated operation); 19.5 … 26.5 VDC ( battery voltage in buffer mode)
Nominal output current Io nom 40 A
DC UPS module for uninterruptible power supply (UPS)
Potential-free contacts provide function monitoring
Remote input for buffered output deactivation
Input for temperature control of connected battery
Battery internal resistance measurement for diagnosing batteries, including the connection cable and fuse
INPUT
Nominal input voltage Ui nom DC 24 V
Input voltage range DC 22 … 28 V
Nominal mains frequency range 0 Hz
Input current Ii ≤ 0.16 A (No load); ≤ 4 A (Charging); ≤ 44 A
OUTPUT
Nominal output voltage Uo nom DC 24 V
Output voltage range Ui (rated operation); 19.5 … 26.5 VDC ( battery voltage in buffer mode)
Nominal output current Io nom 40 A
